Power Module with 120VAC Outlets and Cooling Fan for NS242012, NS242412, NX242416, NS242416, NS242424, NS282416 and NS322416 EnclosuresAltelix

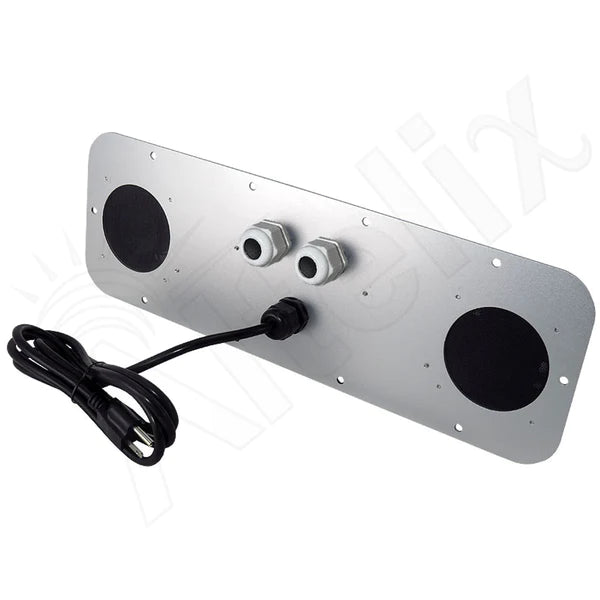

The Altelix NHM20A-FA1C Power Module with 120VAC Outlet and Cooling Fan is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures.

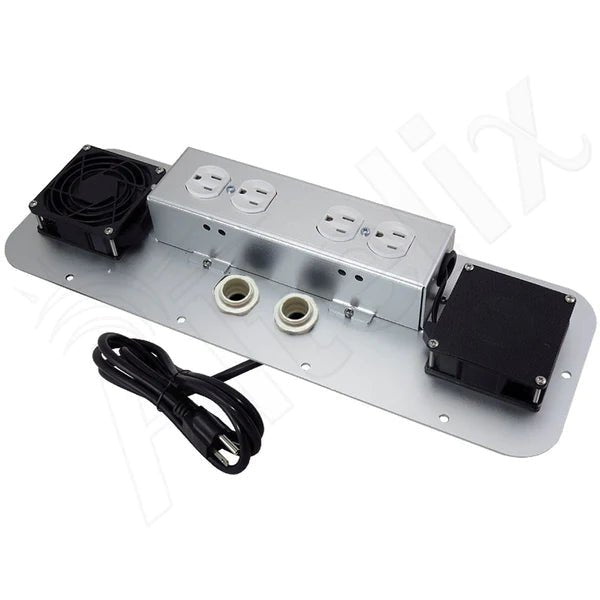

The NHM20A-FA1C is constructed from 0.10" (2.5mm) thick aluminum and features a pre-wired duplex 120VAC power outlet (4 outlets total) and a pre-wired 5-foot power cord, so no additional wiring is required.
Dual Cooling Fans Ventilation
This power module features dual 3" vents and dual thermostat-controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.
The NHM20A-FA1C is for use with the following enclosures:
- NS242012 Series
- NS242412 Series
- NS242416 Series
- NX242416 Series
- NS242424 Series
- NS282416 Series
- NS322416 Series
Panel Material Aluminum Panel Thickness 0.10 in. (2.5 mm) Voltage 120VAC Power Cord Length 5 Feet (1.5m) Cooling Fans Turn-On Temperature 100°F (38°C) Cooling Fans Turn-Off Temperature 79°F (26°C) Hole Diameter for Cable Gland 0.875 in. (22.2 mm) Cable Gland - Cable Diameter Range* 0.1" to 0.3" (2.5 to 7.6mm) Max. Connector Size That Can Pass Through Cable Gland 0.5" (12.7mm) Wide *Note:
For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland.
