Stahlin® Gray Fiberglass Fatboy Series Enclosure With Opaque Cover, 12H in x 10W in x 10D in, Wall Mount, 304 Stainless Steel Latch

In stock
SKU: J121010SSH
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price $229.99

Specifications

Product Type Enclosures
Material Fiberglass
Series Stahlin J Series
Application Indoor, Outdoor
IP Equivalent IP66
Height 12
Width 10
Depth 10
Cover Type Opaque, Hinged Cover
Latch Type Padlockable Latch
Mount Type Integrated Flange
Mounting Plate Included No

Description

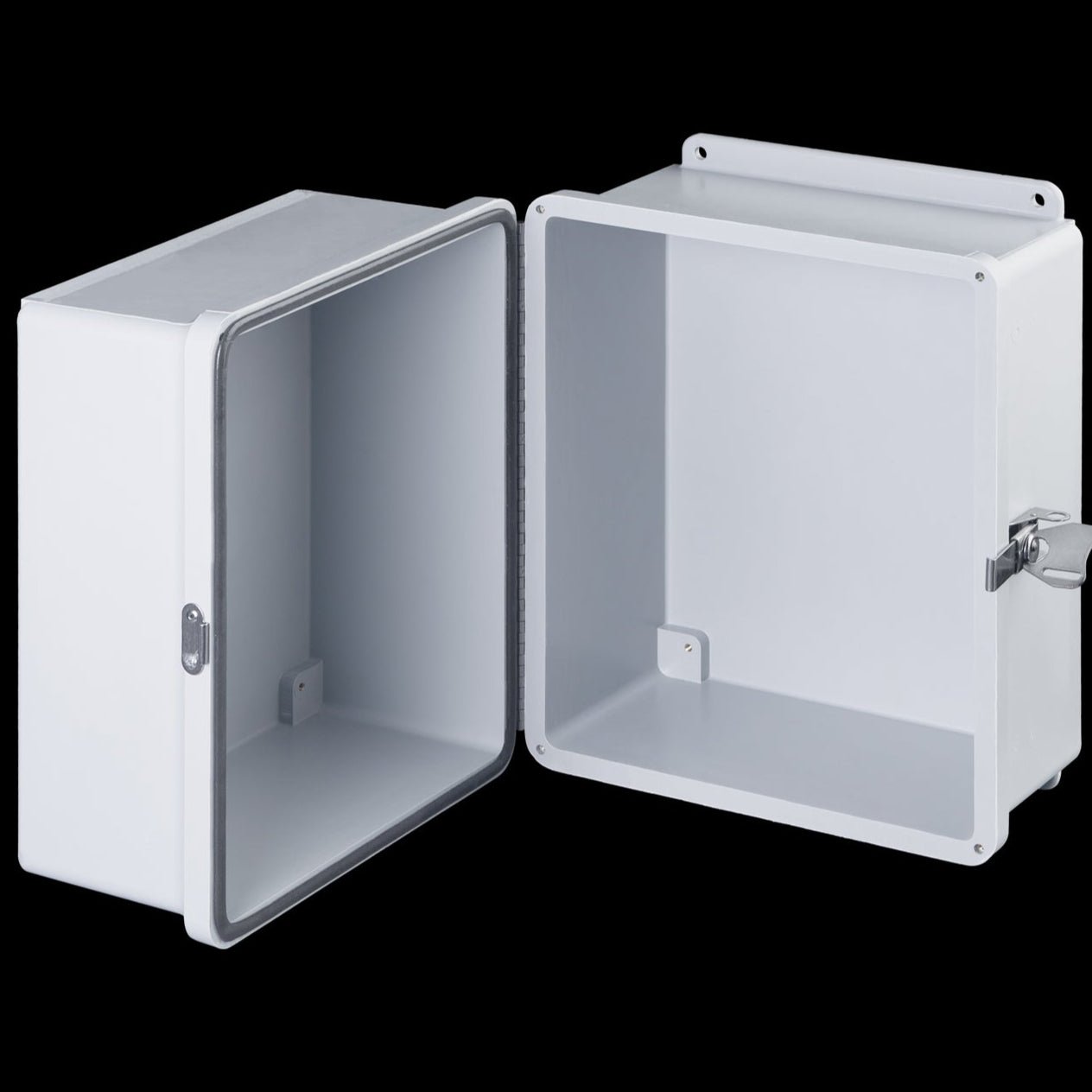

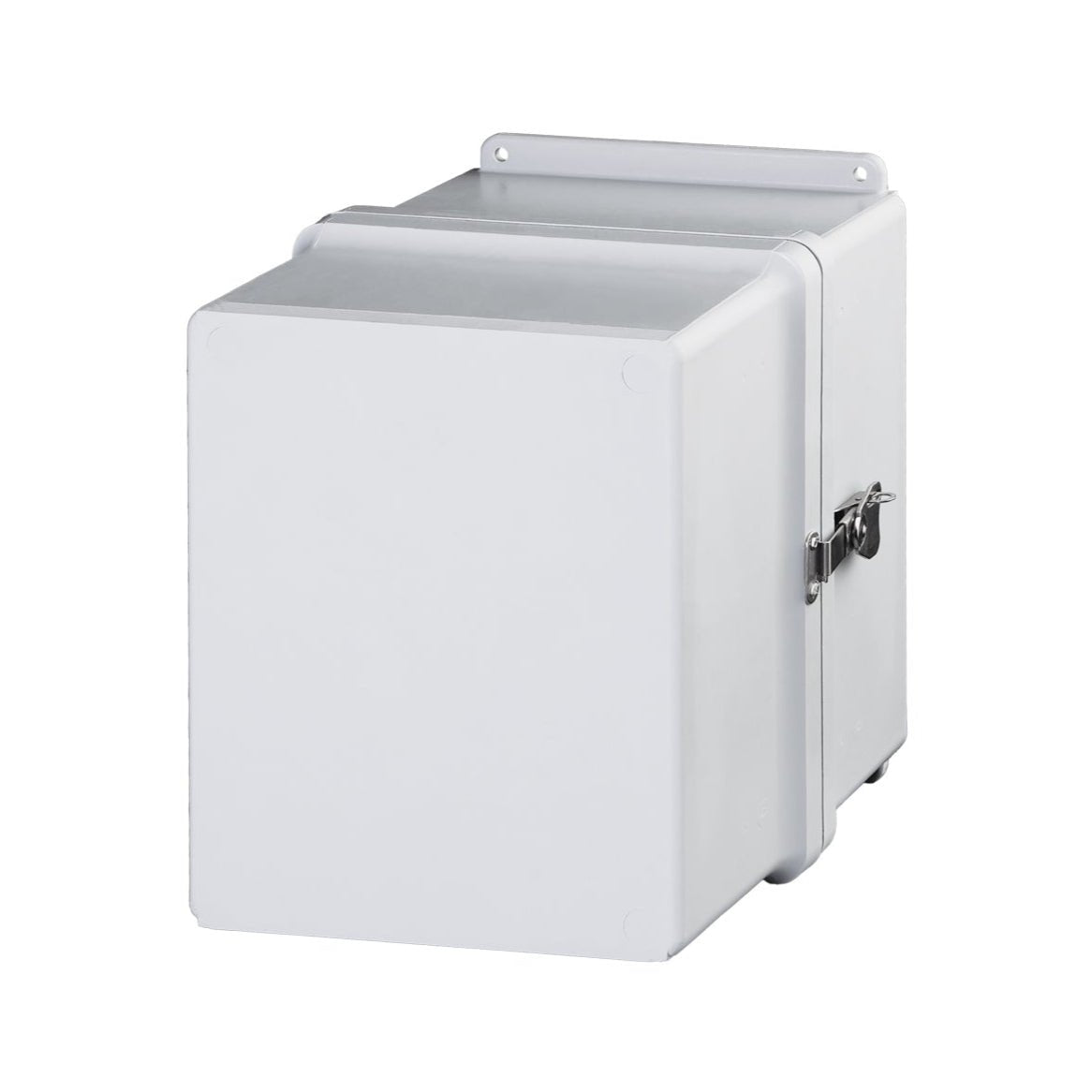

12H x 10W x 10D Inches Fatboy Series Fiberglass Enclosure with an "SSH" Opaque Cover (Hinged, Padlock Latches) is a clam shell style enclosure, noted by near equidistant capacity in both the cover and the base. The Fatboy Series offers an extra deep enclosure without significantly increasing the height and width of the enclosure. The series has a flange mount base for east of installation, a stainless steel full length hinge and stainless steel securing latch.

Application

  • Industrial enclosure for harsh; aggressive environments
  • Designed for general electrical and electronic applications; and any application that has associated environmental concerns
  • Can be configured with cutouts; windows; and modifications that make the finished product truly unique
  • Enhance any instrument installation and accommodate standard back-panel mounting

Features

  • Clam shell design; opening from the middle of the enclosure
  • Increased wall thickness vs. competitive models offers structural support and prevents potential water ingress
  • Integral mounting flange vs. mounting feet (no assembly required)
  • Molded-in inserts provide added pull-out strength
  • Opaque cover
  • Overhang cover on smooth sided base
  • High temperature; flame retardant; non-corrosive
  • All stainless hardware latches and screws
  • Full-length; stainless-steel hinge
  • Chemically resistant; fiberglass reinforced polyester
  • Non-corrosive; environmental designs
  • Stainless steel retention chain on screw covers
  • Continuous polyurethane gasket
  • Manufactured with SolarGuard®, Stahlin's proprietary formulation of non-halogenated fiberglass, offering superior resistance to outdoor exposure, chemicals and flames.
  • Back Panels Available for all sizes

Standards & Specifications

  • NEMA 10250; UL 50; UL 50e; UL508A
    cULus Listed File #E64358
    • CSA Std. C22.2
      cULus Listed File #E64358
      • Type
        1; 3R; 4; 4X; 12
        • IEC 60529; UL Listed #E362920
          IP66

        • UL1741
          UL Listed File #E333478
        • Plenum Space UL2043
          Compliant
        • Temperature Range °F
          -76°F to +274°F
        • Temperature Range °C
          -60°C to +134°C
        • IEC 62262 Impact Rating Listed
          IK10 per File #E362920
        • Flammability Rating
          UL94-5VA
        • NFPA No. 101 Flame Spread
          Class A(1)
        • Outdoor Exposure UL746c
          (f1) Rated
        • CE
          Certified


  • 1
  • 3R
  • 4
  • 4X
  • 12
