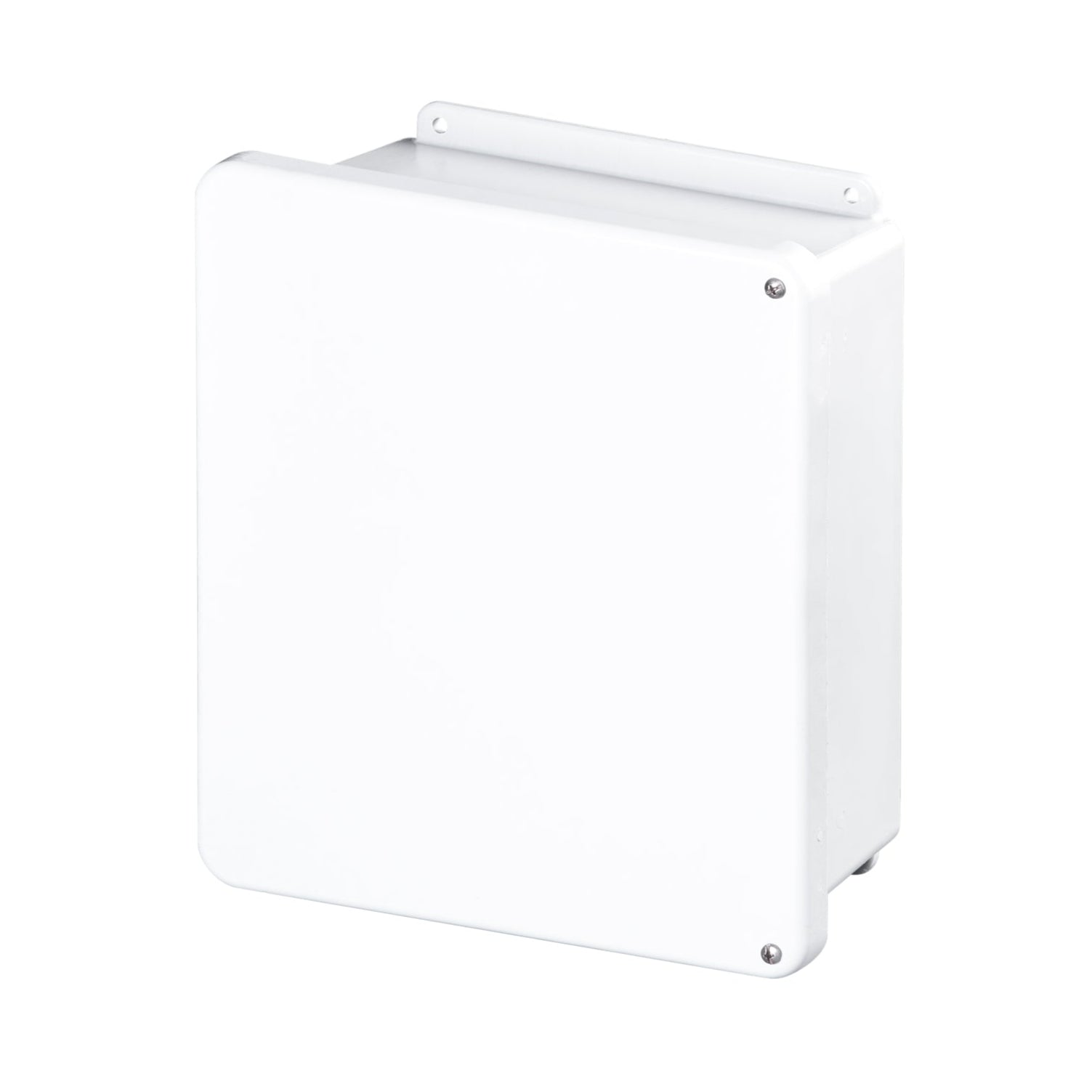

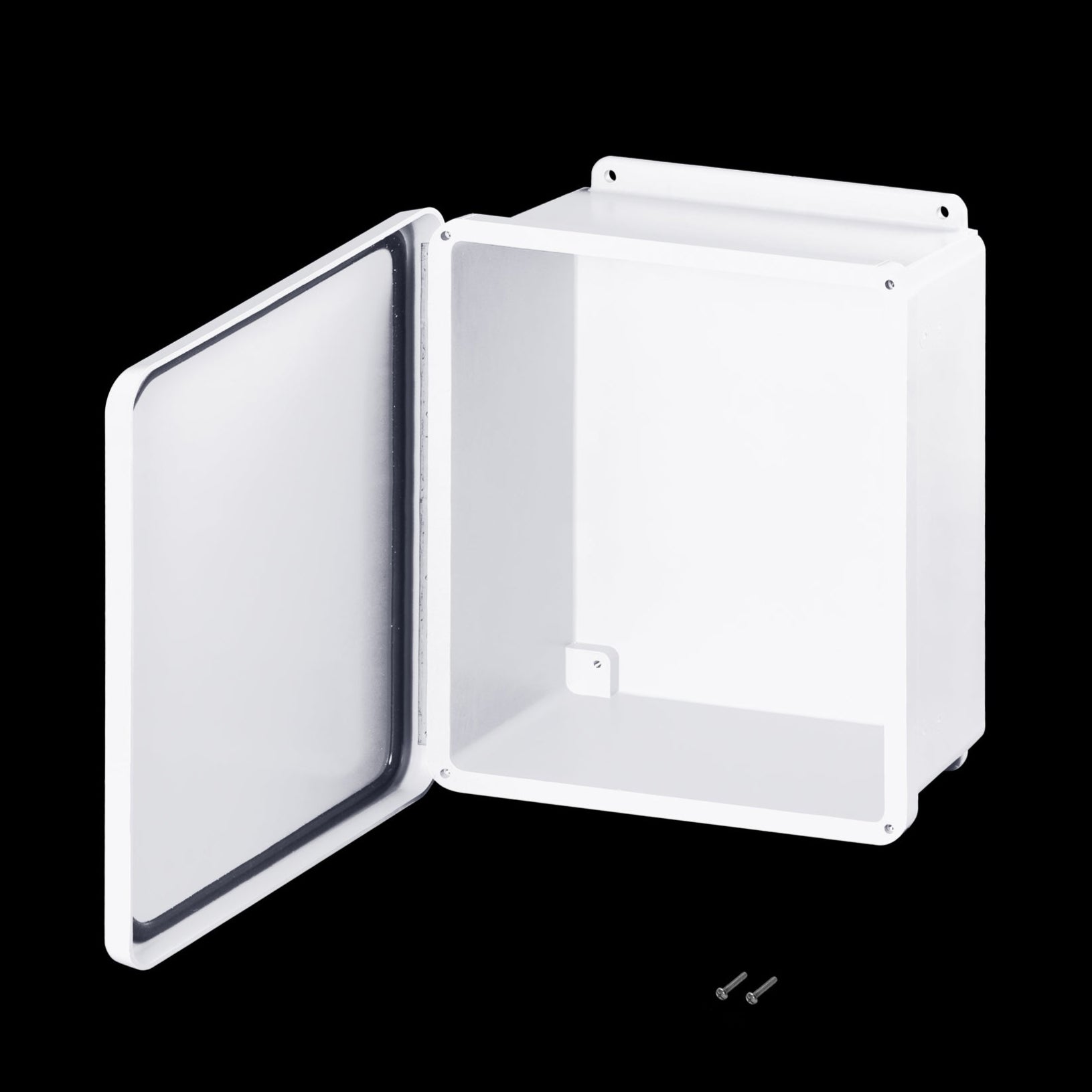

Stahlin® White Fiberglass J Series Enclosure With Opaque Cover, 14H in x 12W in x 6D in, Wall Mount

14H x 12W x 6D Inches J Series White Fiberglass Enclosure with an "HW" Raised Opaque Cover (Hinged, 2 Cover Screws) is designed for general electrical and electronic applications. Simple in its design, the enclosure can be configured with modifications such as cutouts and windows. Featuring a modest overhand cover on a flange mounted base, they offer unobstructed side-walls, built in mounting capabilities and a protective wrap around cover. J Series Products enhance any instrument installation

  Application

• Industrial enclosure for harsh; aggressive environments
• Designed for general electrical and electronic applications; and any application that has associated environmental concerns
• Can be configured with cutouts; windows; and modifications that make the finished product truly unique
• Enhance any instrument installation and accommodate standard back-panel mounting

Features

• White Color
• Increased wall thickness vs. competitive models offers structural support and prevents potential water ingress
• Integral mounting flange vs. mounting feet (no assembly required)
• Molded-in inserts provide added pull-out strength
• White Opaque Cover
• Overhang cover on smooth sided base
• High temperature; flame retardant; non-corrosive
• All stainless hardware latches and screws
• Full-length; stainless-steel hinge
• Chemically resistant; fiberglass reinforced polyester
• Non-corrosive; environmental designs
• Stainless steel retention chain on screw covers
• Continuous polyurethane gasket
• Manufactured with SolarGuard®, Stahlin's proprietary formulation of non-halogenated fiberglass, offering superior resistance to outdoor exposure, chemicals and flames.
• Back Panels Available for all sizes

Specifications & Standards

• NEMA 10250; UL 50; UL 50e; UL508A
  cULus Listed File #E64358
• CSA Std. C22.2
  cULus Listed File #E64358
• Type
  1; 3R; 4; 4X; 6P; 12
• IEC 60529; UL Listed #E362920
  IP66
• UL1741
  UL Listed File #E333478
• Plenum Space UL2043
  Compliant
• Temperature Range °F
  -76°F to +274°F
• Temperature Range °C
  -60°C to +134°C
• Flammability Rating
  UL94-5VA
• NFPA No. 101 Flame Spread
  Class A(1)
• Outdoor Exposure UL746c
  (f1) Rated
• CE
  Certified
