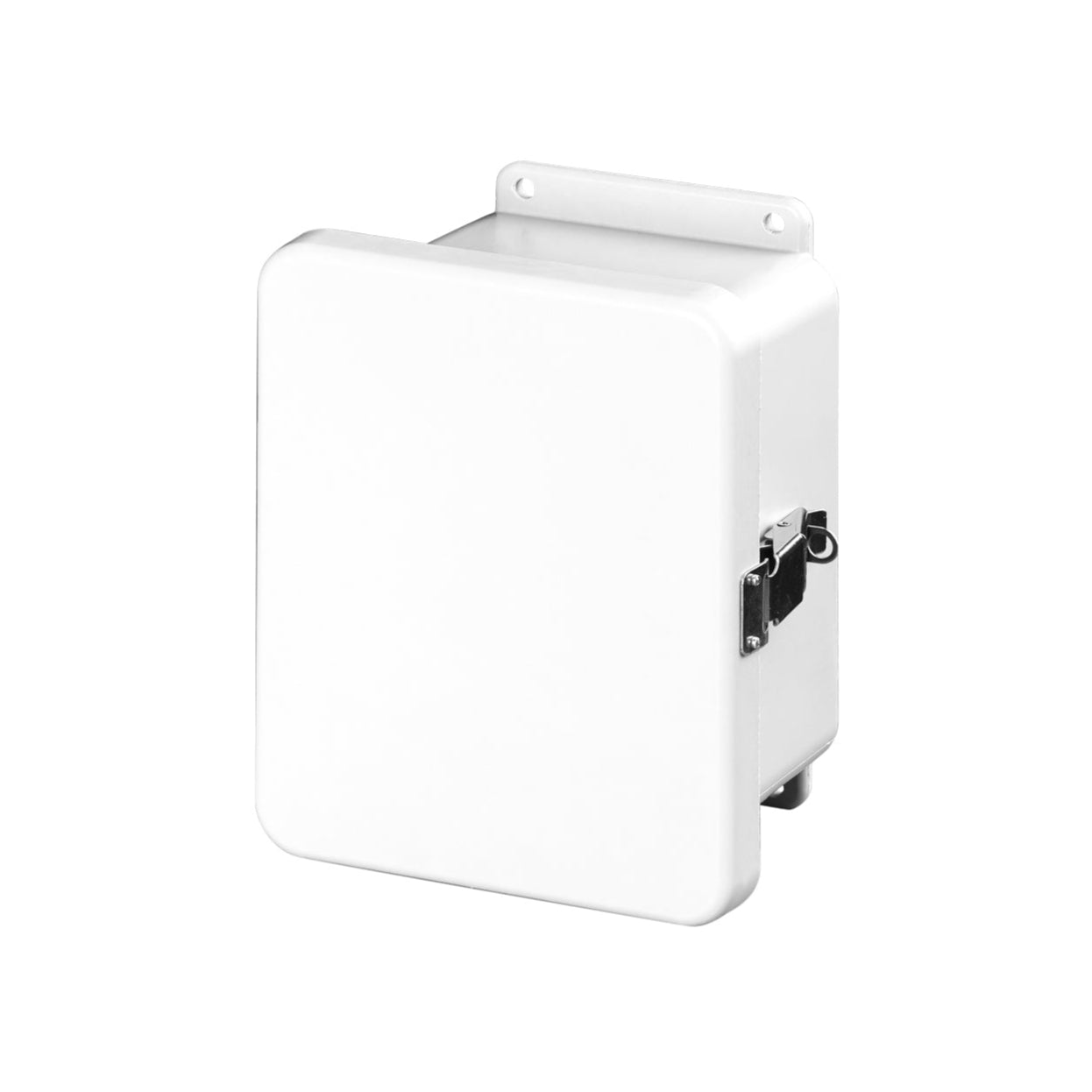

Stahlin® White Fiberglass J Series Enclosure With Opaque Cover, 6H in x 4W in x 4D in, Wall Mount, 304 Stainless Steel Latch
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Series | Stahlin J Series |
| Application | Indoor, Outdoor |
| IP Equivalent | IP66 |
| Height | 6 |
| Width | 4 |
| Depth | 4 |
| Cover Type | Opaque, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Integrated Flange |
| Mounting Plate Included | No |
Description

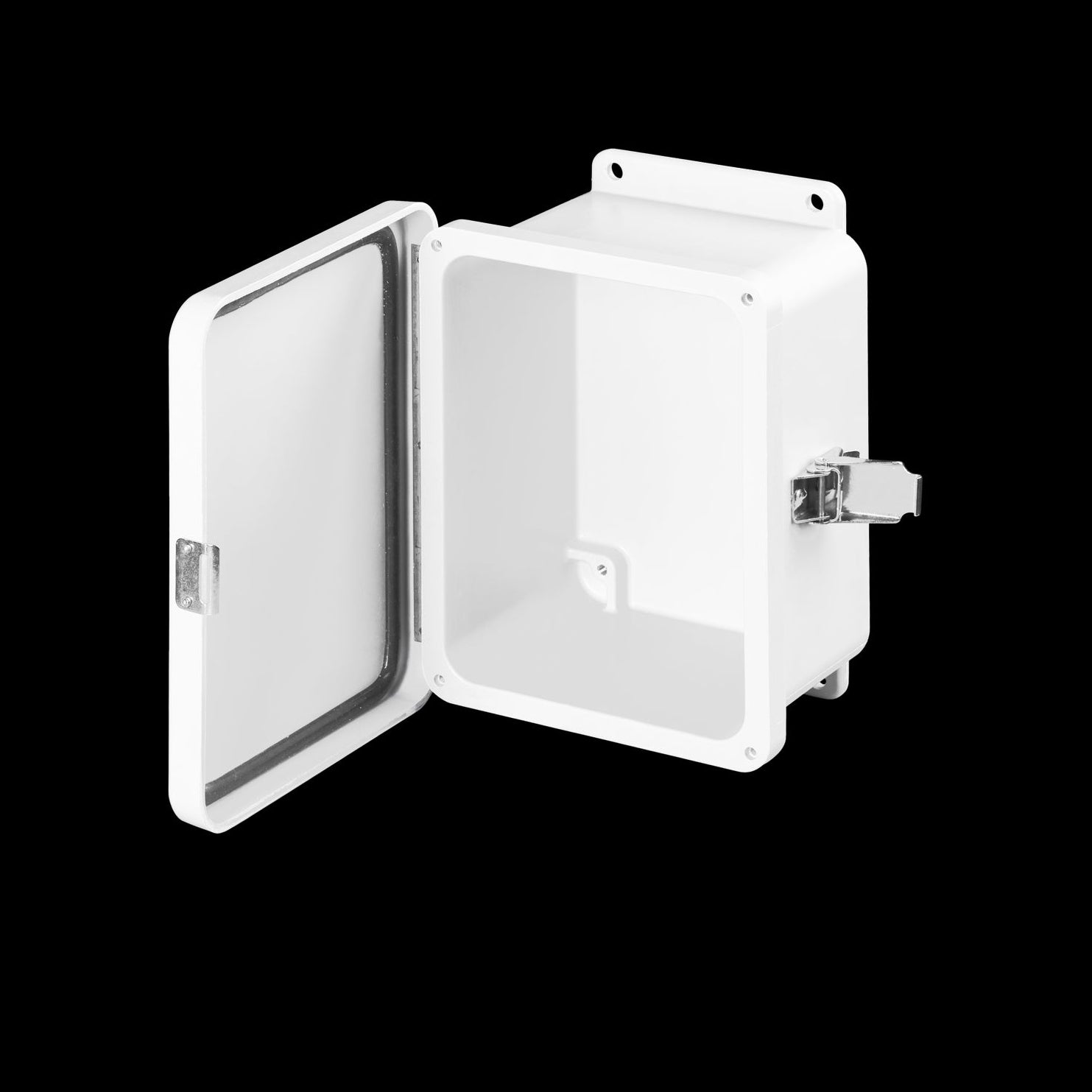

6 H × 4 W × 4 D Inches J Series Fiberglass White Enclosure with an “HPL” opaque hinged cover (padlock latches). Designed for general electrical and electronic applications, configurable with cutouts, windows, and modifications. Features a modest overhang cover on a flange‑mounted base, unobstructed side walls, built‑in mounting capability, and a protective wrap‑around cover.
Application
Industrial enclosure for harsh, aggressive environments. Intended for general electrical/electronic installations and environments with environmental concerns. Supports customization (cutouts, windows) and accommodates standard back‑panel mounting—enhancing instrumentation flexibility.
Features
- White Color
- Increased wall thickness vs. competitive models for increased structural support and water ingress protection
- Integral molded‑in mounting flange (no assembly required)
- Molded‑in brass inserts for secure back‑panel mounting
- Opaque hinged cover with overhang design
- High‑temperature resistant, flame‑retardant, non‑corrosive fiberglass reinforced polyester
- 300‑series stainless steel hardware: latches, screws, full‑length hinge
- Stainless steel retention chain on cover screws
- Continuous poured polyurethane seamless gasket for dust‑tight, watertight seal
- Manufactured with SolarGuard® non‑halogenated fiberglass offering superior resistance to outdoor exposure, chemicals, and flames
Specifications & Standards
- NEMA 1, 3R, 4, 4X, 6P, 12, 13
- UL 50 / UL 50e / UL 508A
- cULus Listed – File #E64358 / CSA C22.2
- IEC Ingress Rating: IP66 (with 3‑point latch option)
- IEC Impact Rating: IK10 (J Series, as designated)
- UL 1741 Listed – File #E333478 (as designated)
- UL 746C Outdoor Exposure: (f1) Rated
- Temperature Range: –76 °F to +274 °F (–60 °C to +134 °C)
- Flammability: UL 94‑5VA; NFPA 101 Flame Spread Class A(1)
