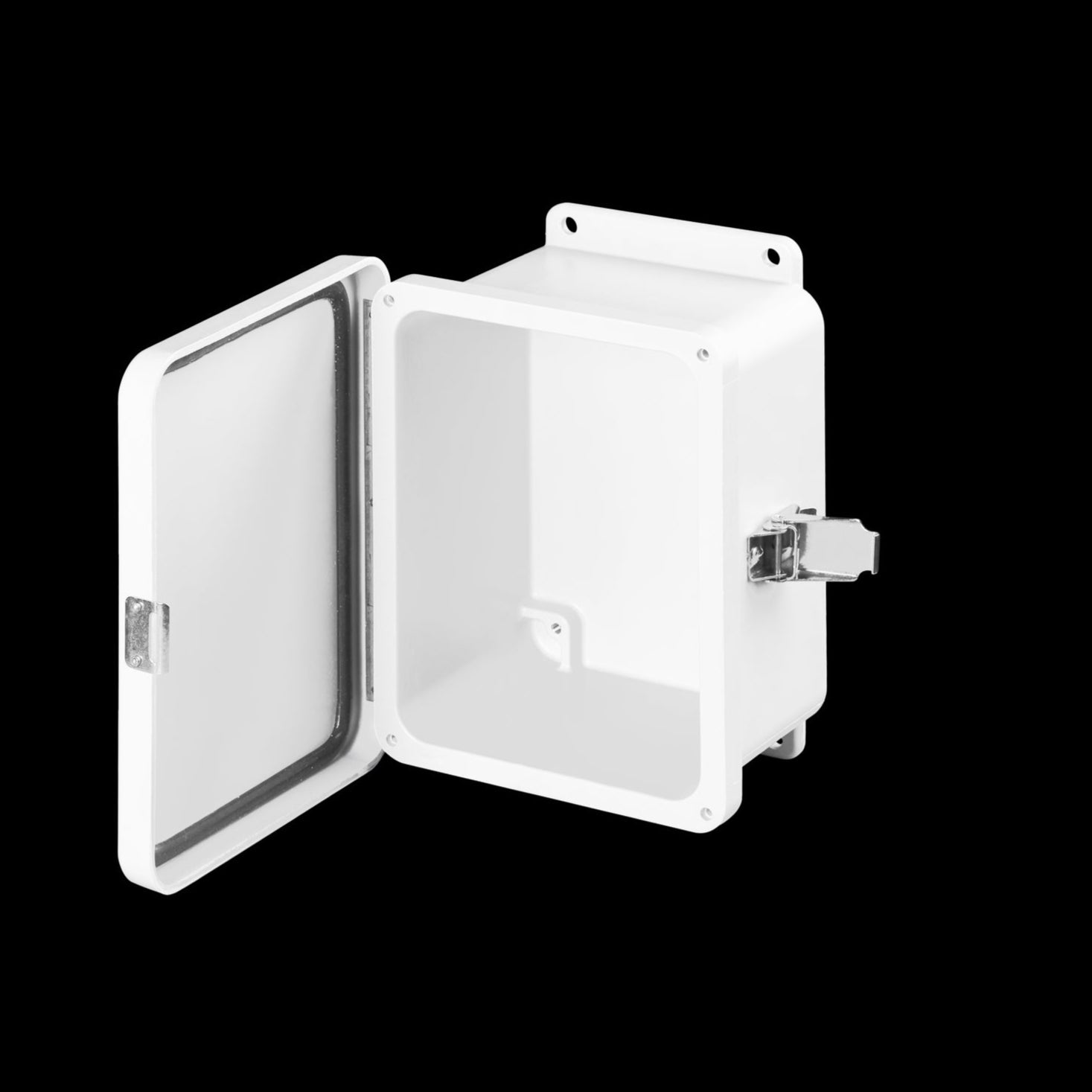

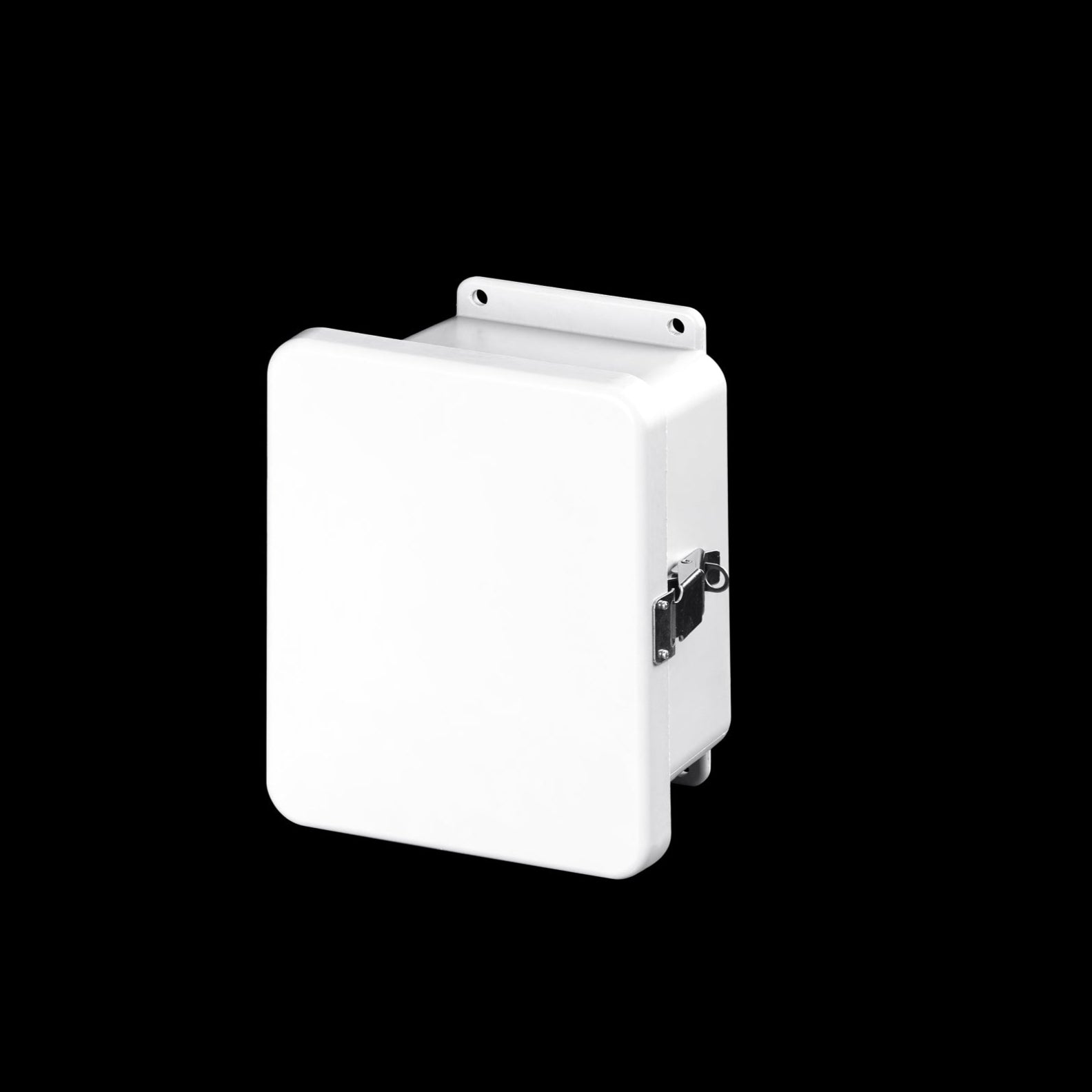

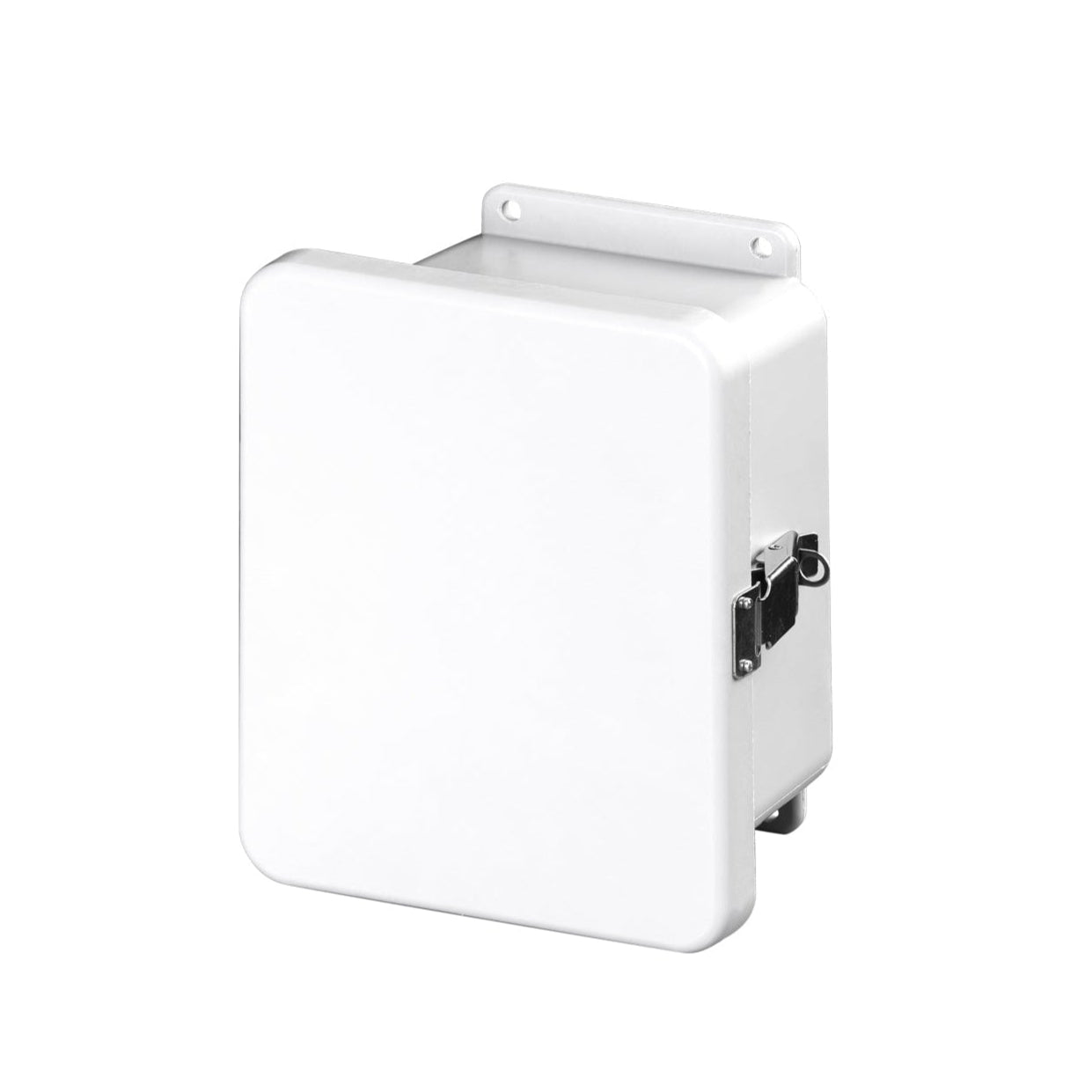

Stahlin® White Fiberglass J Series Enclosure With Opaque Cover, 8H in x 6W in x 4D in, Wall Mount, 304 Stainless Steel Latch

In stock
SKU: WH-J806HPL
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price $135.99

Specifications

Product Type Enclosures
Material Fiberglass
Series Stahlin J Series
Application Indoor, Outdoor, Waterproof
IP Equivalent IP66
Height 8
Width 6
Depth 4
Cover Type Opaque, Hinged Cover
Latch Type Padlockable Latch

Description

8 H × 6 W × 4 D Inches J Series Fiberglass White Enclosure with an “HPL” opaque cover (hinged, padlock latches) is designed for general electrical and electronic applications. Simple in design, the enclosure can be configured with cutouts and windows. Featuring a modest overhang cover on a flange‑mounted base, it offers unobstructed side walls, built‑in mounting capability, and a protective wrap‑around cover.

Application

Industrial enclosure for harsh, aggressive environments. Designed for general electrical and electronic installations and any application with environmental concerns. Can be configured with cutouts, windows, and other modifications. Enhances instrument installations and accommodates standard back‑panel mounting.

Features

  • White Color
  • Increased wall thickness vs. competitive models offers structural support and prevents water ingress
  • Integral molded‑in mounting flange (no assembly required)
  • Molded‑in brass inserts provide added pull‑out strength
  • Opaque cover with overhang design
  • High‑temperature resistant, flame‑retardant, non‑corrosive
  • All 300 series stainless steel hardware (latches, screws) and full‑length stainless steel hinge
  • Chemically resistant fiberglass reinforced polyester
  • Non‑corrosive environmental design
  • Stainless steel retention chain on screw covers
  • Continuous poured polyurethane seamless gasket
  • Manufactured with SolarGuard®, Stahlin’s proprietary non‑halogenated fiberglass formula, offering superior resistance to outdoor exposure, chemicals, and flames

Specifications & Standards

  • NEMA Types 1, 3R, 4, 4X, 6P, 12, 13
  • UL 50, UL 50e, UL 508A
  • cULus Listed File #E64358 / CSA C22.2
  • IEC Ingress Rating: IP66 (with 3PT option)
  • IEC Impact Rating: IK10 (J Series only)
  • UL 1741 Listed File #E333478 (as designated)
  • UL 746C Outdoor Exposure: (f1) Rated
  • Temperature Range: –76 °F to +274 °F (–60 °C to +134 °C)
  • Flammability Rating: UL 94‑5VA; NFPA 101 Flame Spread: Class A(1)
  • 1
  • 3R
  • 4
  • 4X
  • 6P
  • 12
