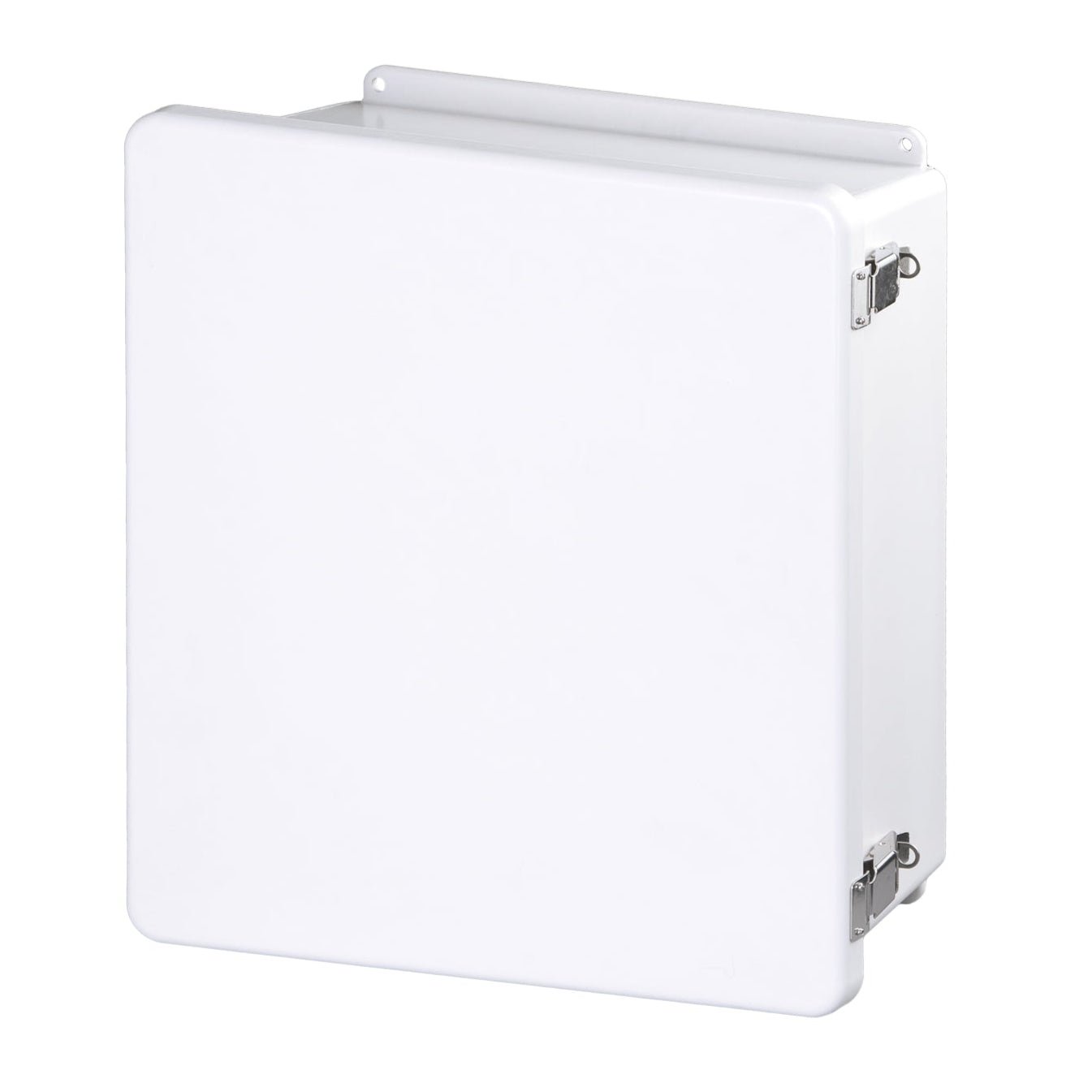

Stahlin® White Fiberglass J Series Enclosure With Opaque Cover, 18H in x 16W in x 8D in, Wall Mount, 304 Stainless Steel Latch
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$299.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Series | Stahlin J Series |
| Application | Indoor, Outdoor |
| IP Equivalent | IP66 |
| Height | 18 |
| Width | 16 |
| Depth | 8 |
| Cover Type | Opaque, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Integrated Flange |
| Mounting Plate Included | No |
Description

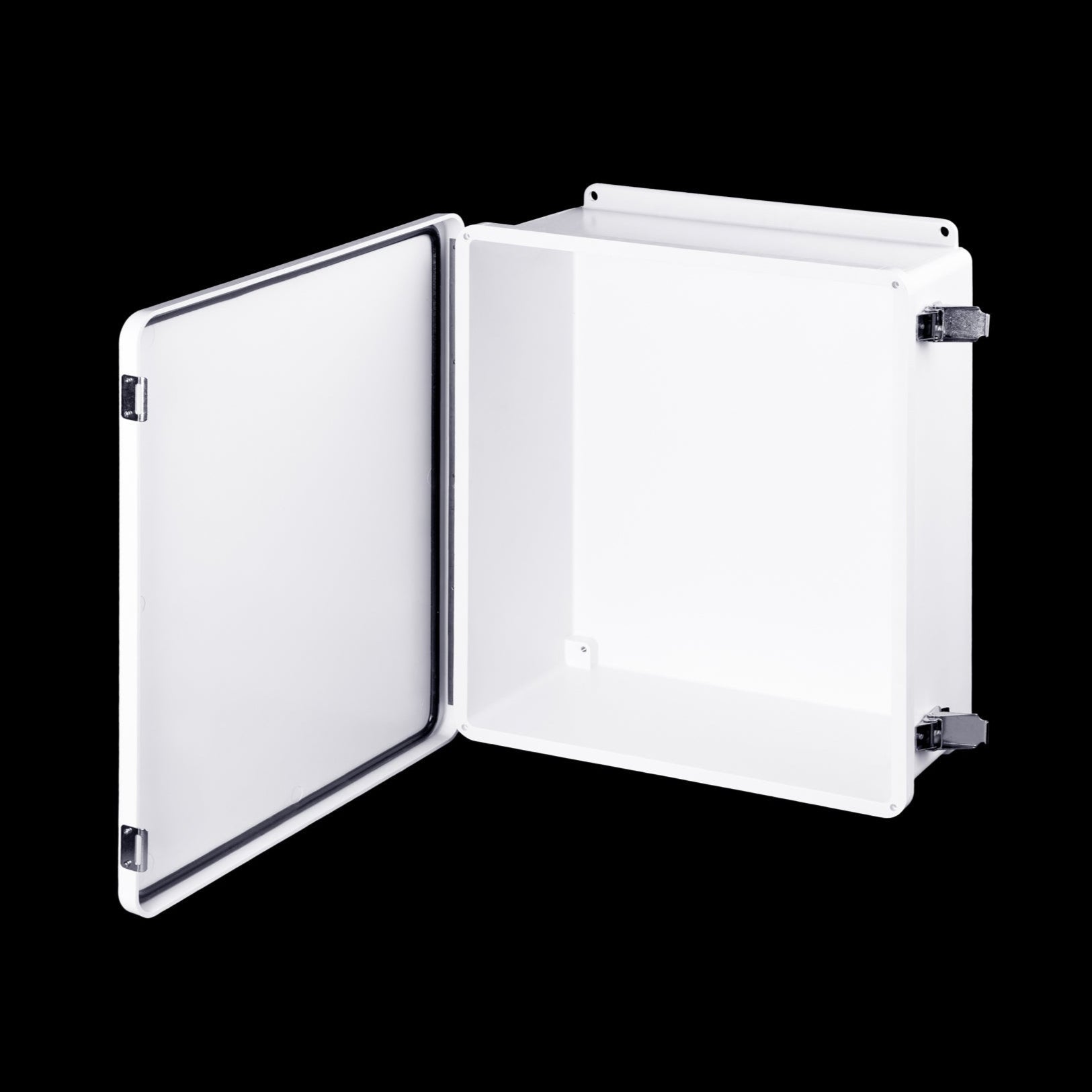

18H x 16W x 8D Inches J Series Fiberglass White Enclosure with an "HPL" Opaque Cover (Hinged, Padlock Latches) is designed for general electrical and electronic applications. Simple in its design, the enclosure can be configured with modifications such as cutouts and windows. Featuring a modest overhand cover on a flange mounted base, they offer unobstructed side-walls, built in mounting capabilities and a protective wrap around cover. J Series Products enhance any instrument installation.
Application
- Industrial enclosure for harsh; aggressive environments
- Designed for general electrical and electronic applications; and any application that has associated environmental concerns
- Can be configured with cutouts; windows; and modifications that make the finished product truly unique
- Enhance any instrument installation and accommodate standard back-panel mounting
Features
- White Color
- Increased wall thickness vs. competitive models offers structural support and prevents potential water ingress
- Integral mounting flange vs. mounting feet (no assembly required)
- Molded-in inserts provide added pull-out strength
- White Opaque Cover
- Overhang cover on smooth sided base
- High temperature; flame retardant; non-corrosive
- All stainless hardware latches and screws
- Full-length; stainless-steel hinge
- Chemically resistant; fiberglass reinforced polyester
- Non-corrosive; environmental designs
- Stainless steel retention chain on screw covers
- Continuous polyurethane gasket
- Manufactured with SolarGuard®, Stahlin's proprietary formulation of non-halogenated fiberglass, offering superior resistance to outdoor exposure, chemicals and flames.
- Back Panels Available for all sizes
Specifications & Standards
-
NEMA 10250; UL 50; UL 50e; UL508AcULus Listed File #E64358
-
CSA Std. C22.2cULus Listed File #E64358
-
Type1; 3R; 4; 4X; 6P; 12
-
IEC 60529; UL Listed #E362920IP66
-
UL1741UL Listed File #E333478
-
Plenum Space UL2043Compliant
-
Temperature Range °F-76°F to +274°F
-
Temperature Range °C-60°C to +134°C
-
Flammability RatingUL94-5VA
-
NFPA No. 101 Flame SpreadClass A(1)
-
Outdoor Exposure UL746c(f1) Rated
-
CECertified
