Stainless Steel Pole Mount / Flange Mount Kit for Altelix NFC242009 & NS242012 Series NEMA Enclosures
Altelix- Description
-

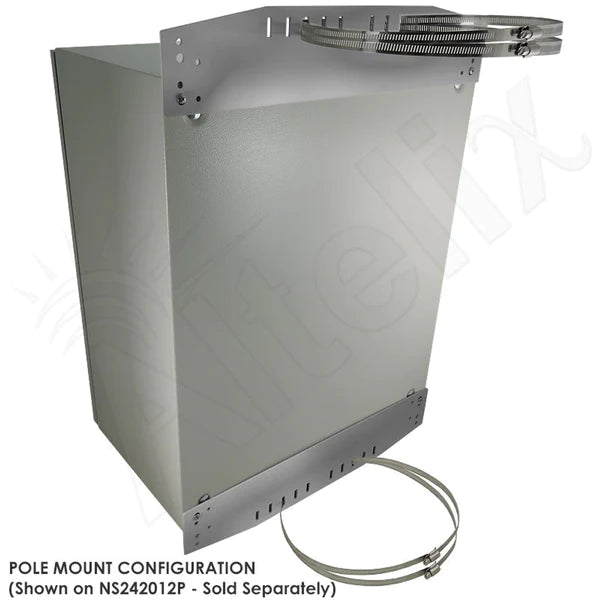

The Altelix NMKX-500-08 Stainless Steel Pole Mount Kit attaches to the rear of our NFC242009 and NS242012 series NEMA enclosures. These heavy duty stainless steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick stainless steel for all weather applications.

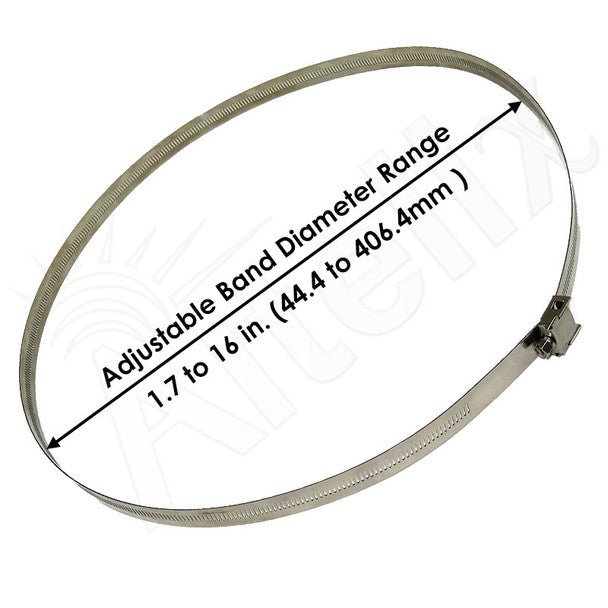

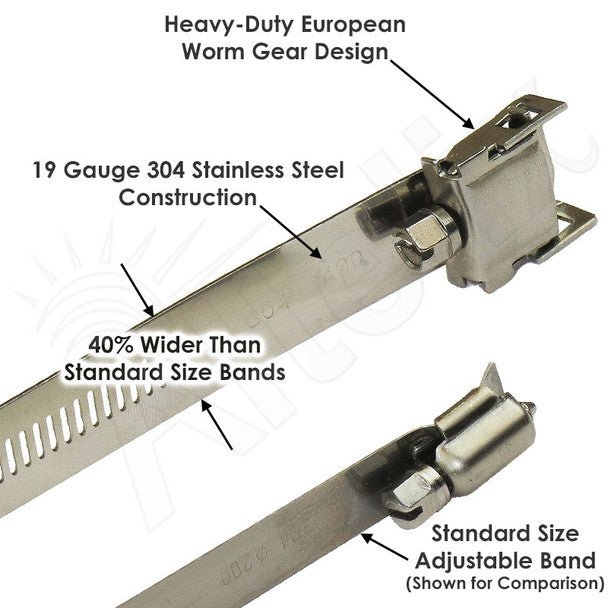

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:- Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
- Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
- Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter
Click Here for more information.

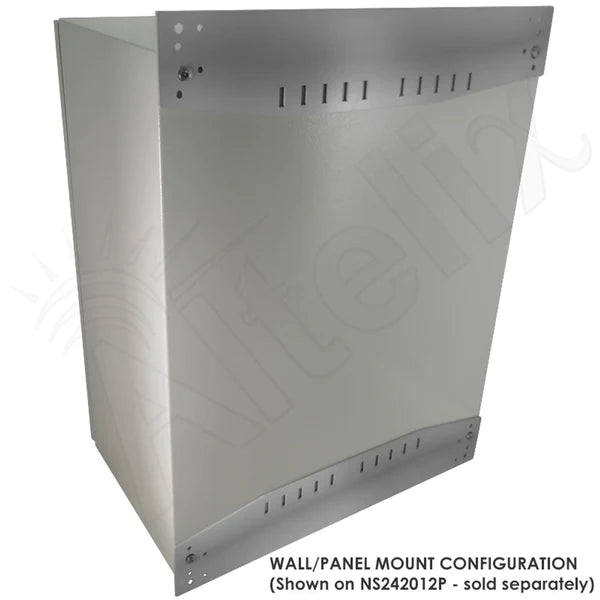

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

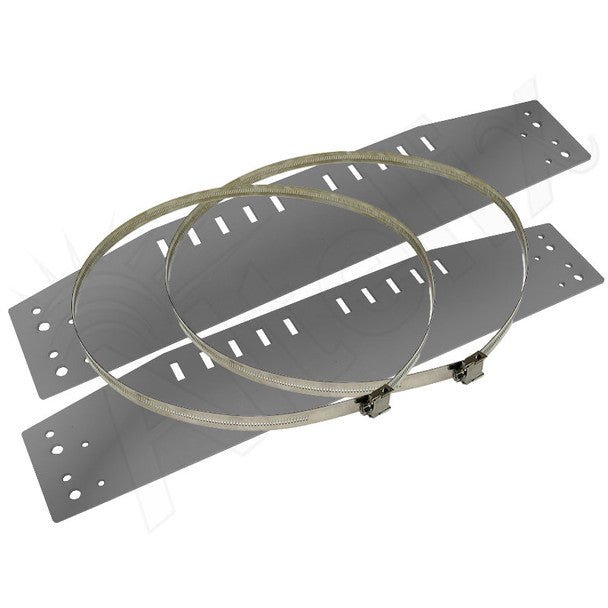

The NMKX-500-08 kit includes (2) stainless steel mounting brackets, (4) stainless steel adjustable bands and mounting hardware.
The NMKX-500-08 is for use with the following enclosures:- NFC242009 Series FRP Enclosures
- NS242012 Series Steel Enclosures
