Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures

• Description

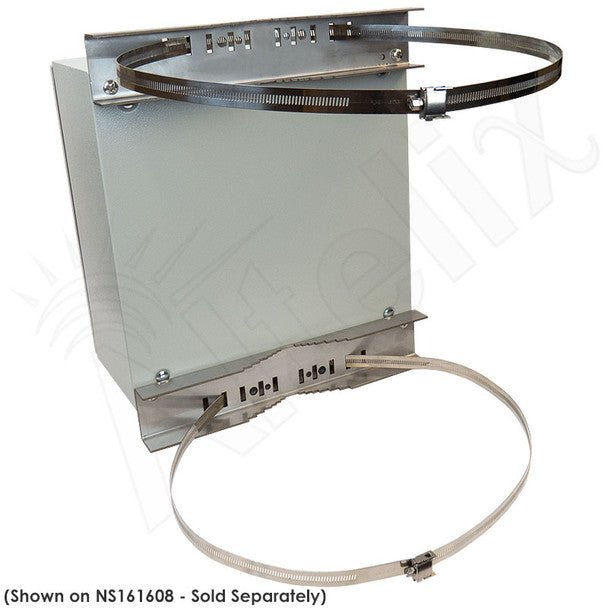

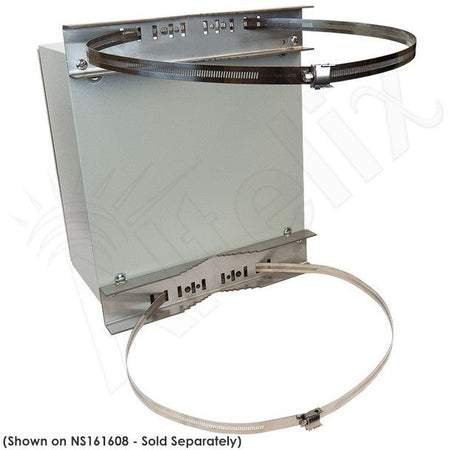

• The Altelix NMHX-400-16 Stainless Steel Pole Mount Kit attaches to the rear of our NFC and NS series NEMA enclosures. These heavy duty stainless steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick stainless steel for all weather applications.

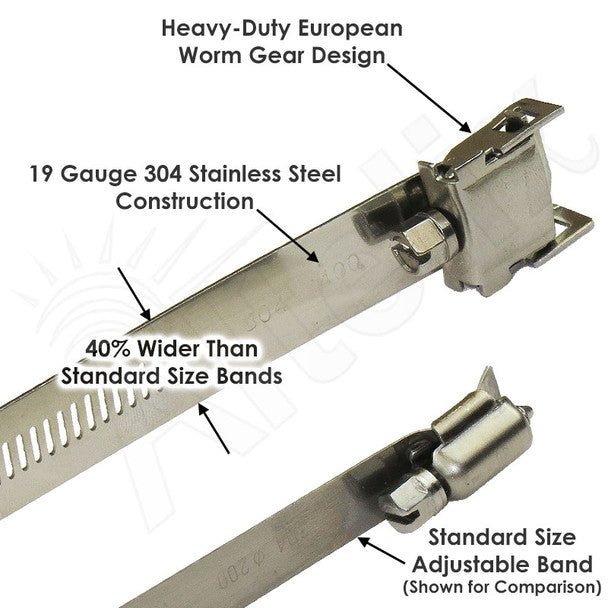

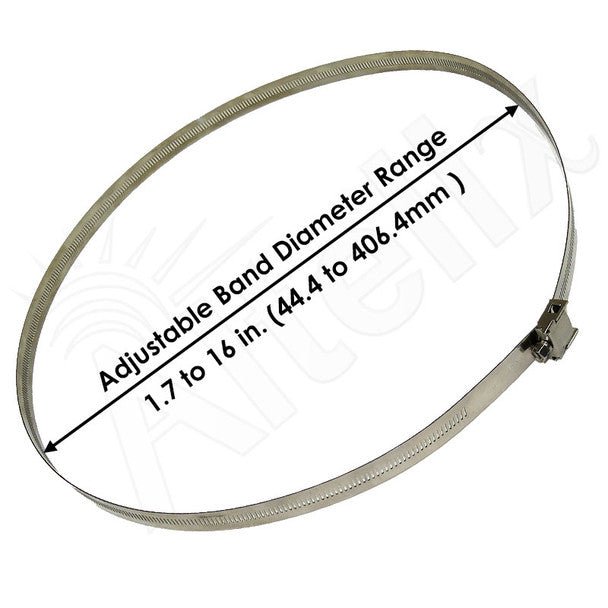

  Optional adjustable stainless steel bands can also be purchased for the following pole sizes (see the accessory section below):



  • Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
  • Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
  • Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

  The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

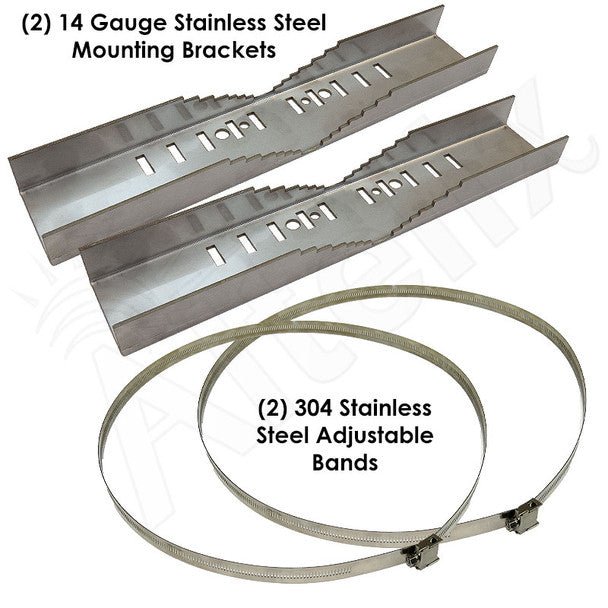

  The NMHX-400-16 kit includes (2) 0.08" (2mm) thick steel mounting brackets, (4) stainless steel bands and mounting hardware.

  The NMHS-400-16 is for use with the following enclosures:

  • NF201612
  • NFC161608
  • NFC201608
  • NFC241609
  • NS/NX161608
  • NS201608
  • NS/NX201612
  • NS241610
  • NS241612

No downloads available for this variant.
