Vented Power Module with 120VAC Outlets for NS161608, NX161608, NS201612, NX201612 and NS241612 EnclosuresAltelix

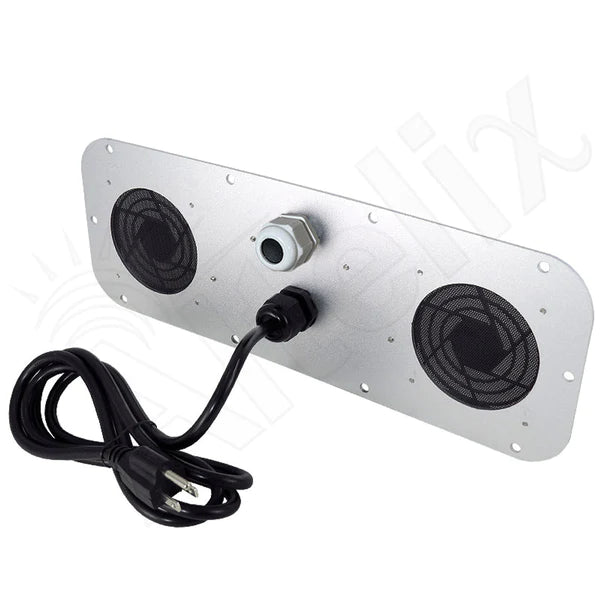

The Altelix NHM16A-VA1C Vented Power Module with 120VAC Outlets is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures. It features (2) 3" vents with screens which are removable for cleaning. In addition, a cable gland is provided for any wiring requirements.

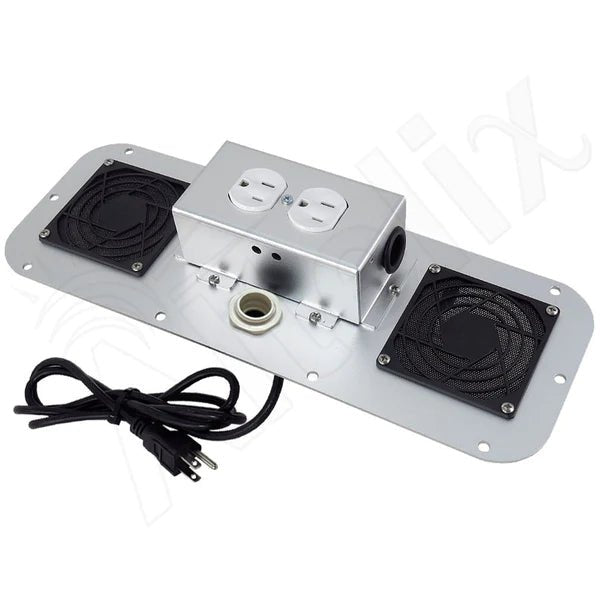

The NHM16A-VA1C is constructed from 0.10" (2.5mm) thick aluminum and features a pre-wired duplex 120VAC power outlet and a pre-wired 5-foot power cord, so no additional wiring is required.
The NHM16A-VA1C is for use with the following enclosures:
- NS161608 Series
- NX161608 Series
- NS201612 Series
- NX201612 Series
Panel Material Aluminum Panel Thickness 0.10 in. (2.5 mm) Voltage 120VAC Power Cord Length 5 Feet (1.5m) Hole Diameter for Cable Gland 0.875 in. (22.2 mm) Cable Gland - Cable Diameter Range* 0.1" to 0.3" (2.5 to 7.6mm) Max. Connector Size That Can Pass Through Cable Gland 0.5" (12.7mm) Wide *Note:
For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland.
