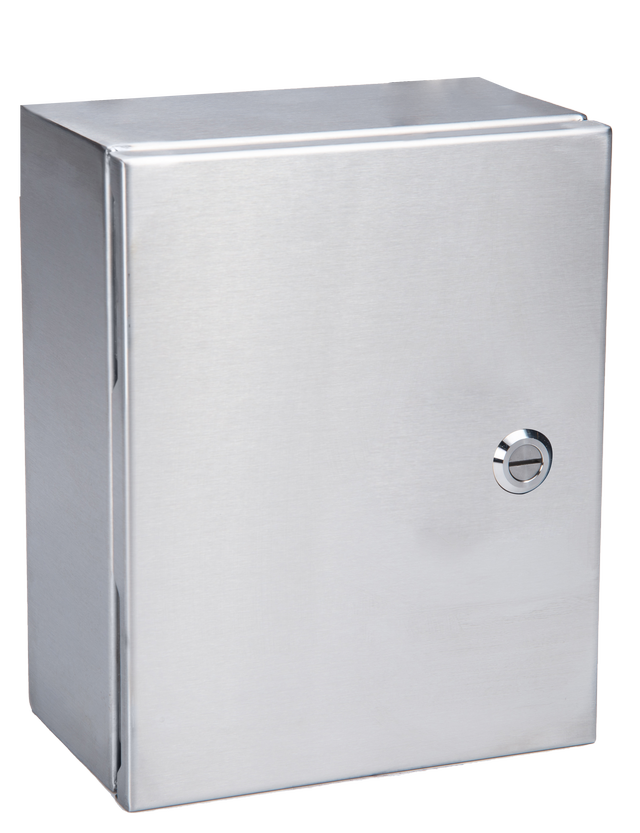

StrongBox 304 Stainless Steel | PingeTM | Quarter Turn Latch | Bolted Tabs - UL/cUL NEMA Type 4X IP66 Enclsoure
Product Details:
- NEMA 4X (IP66) Outdoor Use
- Wall Mount
- Removable Pin Hinge (Pinge™)
- Bolted Tabs
- Quarter-Turn Latch
- Grounding Lug

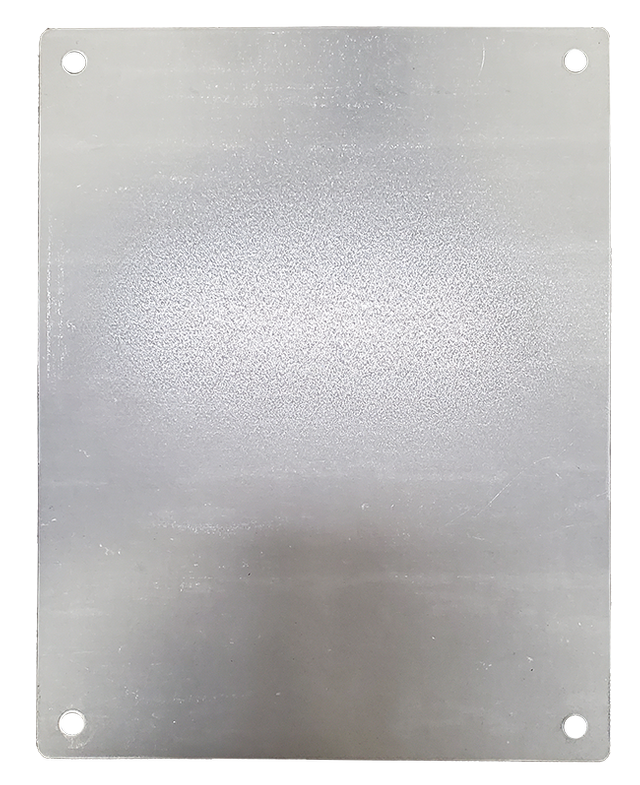

- Standoff Back Panel Studs (Back Panel Not Included)
Ideal for indoor or outdoor applications that require protection against water, oil and dirt. Strongbox series Standard Enclosures feature an attractive brushed finish and NEMA 4X corrosion protection.
Standard enclosures include Removeable Pin Hinge (Pinge™), Bolted Mounting Tabs, Stainless Steel 1/4 turn Latch and Grounding Stud on door and body.
Seams continuously welded and ground smooth
Door opens 180+ degrees
Construction & Design Specs
- 304 Stainless Steel
- #4 Brushed Finish
- "C" Channel Body Flange with minimum 0.34" wide sealing face
- Minimum 180 degree door swing
- Grounding Studs on door and base
- Collar Studs for back panel mounting
- 316 Stainless Steel Pin Hinges (PingeTM)
- IP66 Rated 304 Stainless Steel Quarter Turn Latches
- Hydrophobic polyurethane formed-in-place foam gasket
3rd Party Approvals
- NEMA/CSA Type 1, 2, 3, 3R, 4, 4X
- UL 508A Listed
- IEC 60529, IP66
