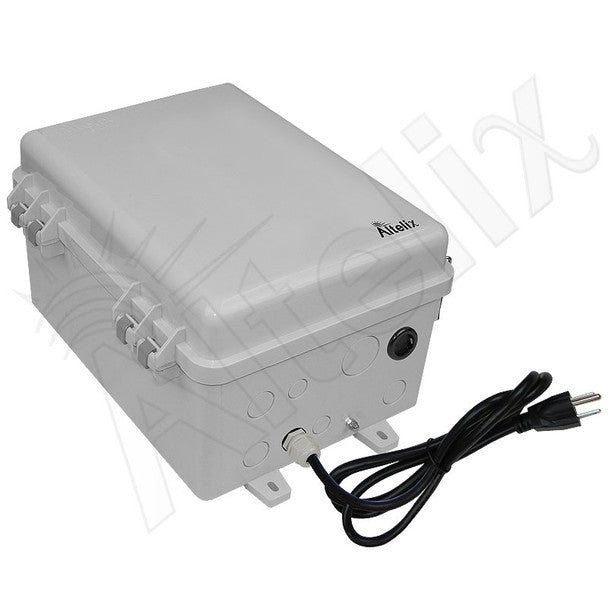

Altelix 12x9x7 NEMA 4X PC+ABS Weatherproof Utility Box NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlet & Power Cord
Couldn't load pickup availability
Specifications
Product Type | Enclosures |
---|---|
Material | Polycarbonate |
Application | Indoor, Outdoor |
IP Equivalent | IP65, IP66 |
Height | 12 |
Width | 9 |
Depth | 7 |
Inner Dimensions | 7.8 x 7.1 x 5.7 inches |
Cover Type | Gasketed Cover |
Latch Type | Padlockable Latch, Tamper proof locking screw |
Mount Type | Wall Mount |
Mounting Plate Included | No |
Power Options | 120VAC |
Power Cord Length | Pre-wired 5 foot 3-prong power cord |
- Description

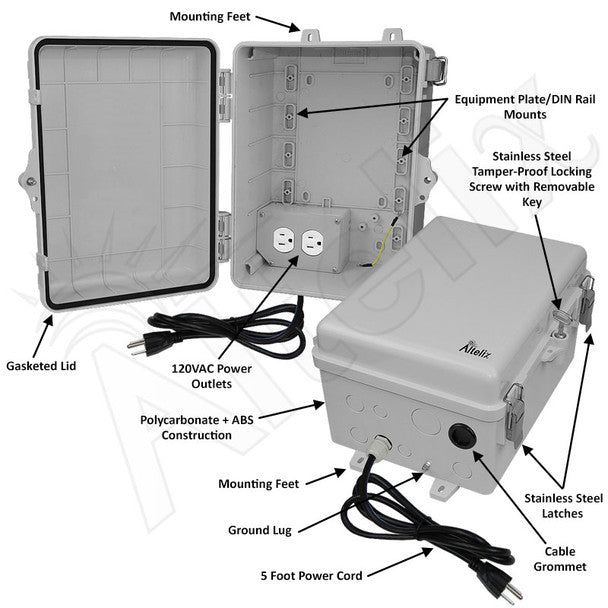

The Altelix NP120907A1C NEMA 4X enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 120VAC power outlet. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.
Complete with Cable Grommets and Wire Management Accessories

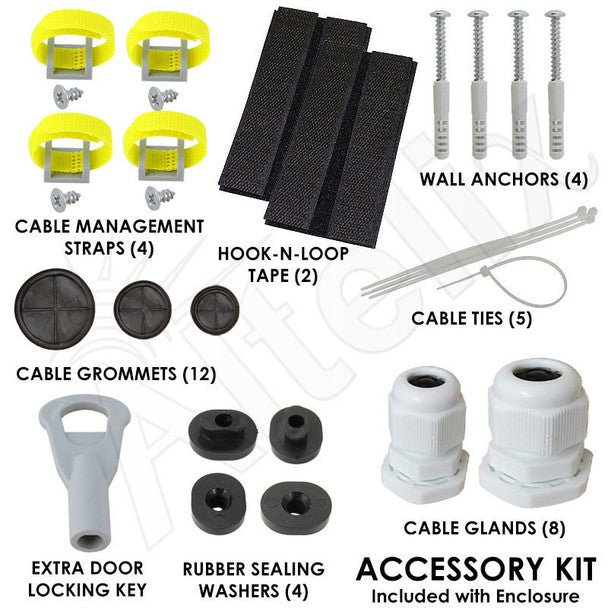

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.
Additional Accessories
