13x10x4 IP66 NEMA 4X PC+ABS Weatherproof Utility Box with Hinged DoorAltelix
Weatherproof Polycarbonate + ABS Construction For Extreme Durability
The Altelix NP131004 Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments.
Construction and Features

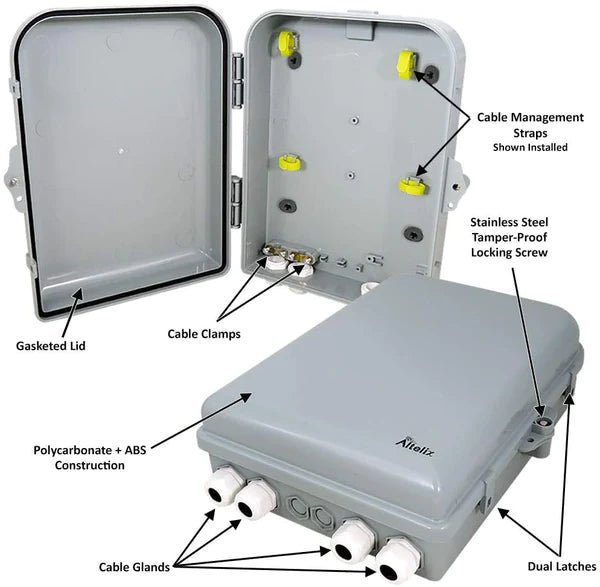

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Complete with Cable Glands and Wire Management Straps
This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-220-08 attaches to the rear of the enclosure and allows it be mounted to poles and fence posts up to 9.5 inches in diameter.
Material Polycarbonate + ABS Color Gray Outer Dimensions 13.0 x 9.5 x 4.0 Inches
(330 x 241 x 102 mm)
Inner Dimensions 12.1 x 8.7 x 3.3 Inches
(307 x 221 x 84 mm)
Weight 2.0 lbs. (0.9 kg) Ratings Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 Flame Rating Meets UL94-V0 Included Cable Glands (4) M24 x 1.5
