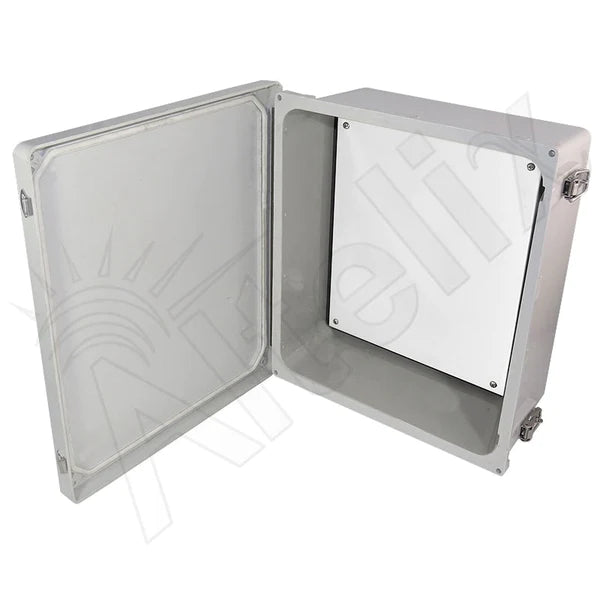

Altelix 14x12x6 NEMA 4X Fiberglass Weatherproof RF Transparent Wireless Enclosure with Non Metallic Equipment Mounting Plate

In stock
SKU: NF141206M
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price $169.99

Specifications

Product Type Enclosures
Material Fiberglass
Application Outdoor, Indoor
IP Equivalent IP65, IP66
Height 14
Width 12
Depth 6
Inner Dimensions 13.0 x 11.0 x 5.0 Inches
Cover Type Gasketed Cover
Latch Type Padlockable Latch
Mount Type Wall Mount
Mounting Plate Included Yes
Mounting Plate Material PVC
  • Description
  • RF Transparent Design

    The Altelix NF141206M NEMA 4X Weatherproof Enclosure with Non-Metallic Equipment Mounting Plate features a non-metallic and RF transparent 0.20" (5mm) thick polyester equipment mounting plate.

    This RF transparent enclosure and non-metallic equipment mounting plate are ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear. In addition, mounting radios to the Polyester equipment mounting plate can be done simply by using self-tapping screws. The generous size of this enclosure accommodates a wide range of equipment.

    Extreme Protection Built to Last

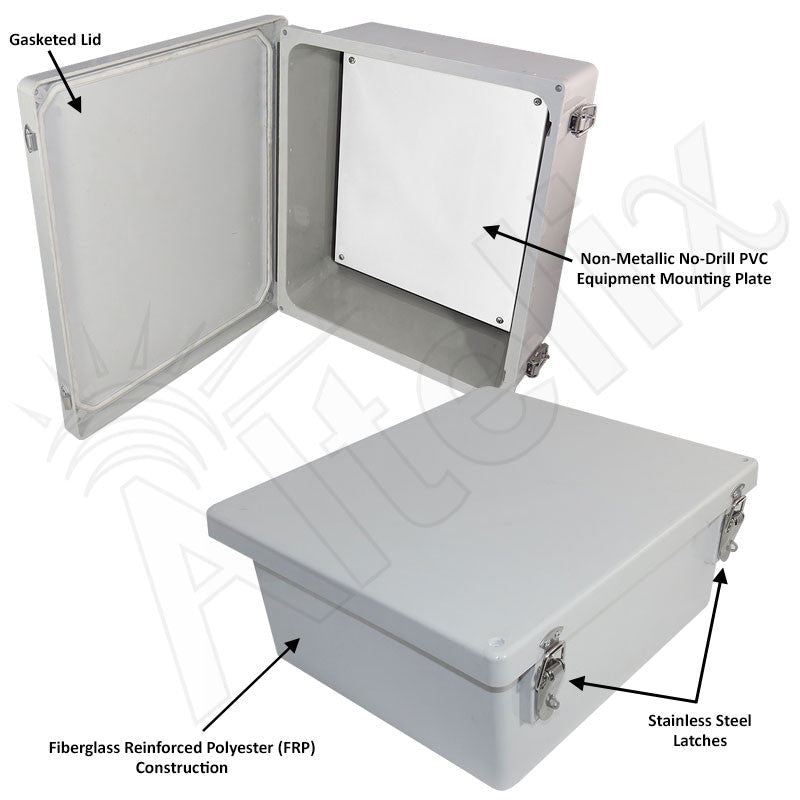

    This JIC style enclosure is dent-proof, corrosion resistant and UV stable. It is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is non-conductive and RF transparent. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

    Mounting
    Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

    Material Fiberglass Reinforced Polyester
    Color Gray
    Outer Dimensions 15.75 x 13.83 x 6.54 Inches
    (401 x 352 x 164 mm)
    Inner Dimensions 13.87 x 11.97 x 6.2 Inches
    (352 x 304 x 157 mm)
    Mounting Plate Material 0.19 in (5 mm) Polyester
    Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm)
    Weight 10.2 lbs. (4.6 kg)
    Ratings NEMA Type 4, 4X / IP66
    Flame Rating UL94-5V
  • 1
  • 2
  • 4
  • 4X
  • 12
  • 13

No downloads available for this variant.
