Altelix 12x10x6 Vented Fiberglass Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fan

• Features Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction Dual 3" Vents and Thermostat Controlled Cooling Fan Includes Blank Galvanized Steel Equipment Mounting Plate 120VAC Outlets Pre-wired 5 foot power cord Quarter-Turn Door Latch with Key Bonus Aluminum Bottle Opener Key Now Included! (4) Mounting Feet Included NEMA Type 3R, 3RX / IP24 Rated Optional Lockable Latches Available

  Applications Rapid Deployment Systems Indoor / Outdoor WiFi Equipment SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection of Equipment from Theft or Damage Concealment of Electronic Equipment

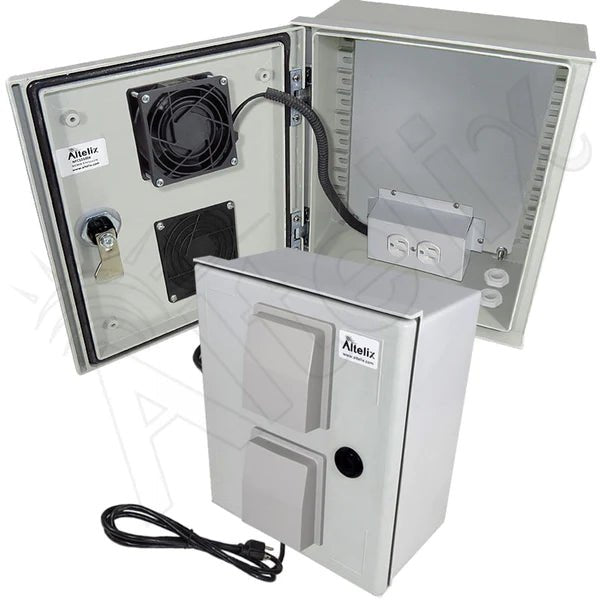

  The Altelix NFC121006VFA1C Vented Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

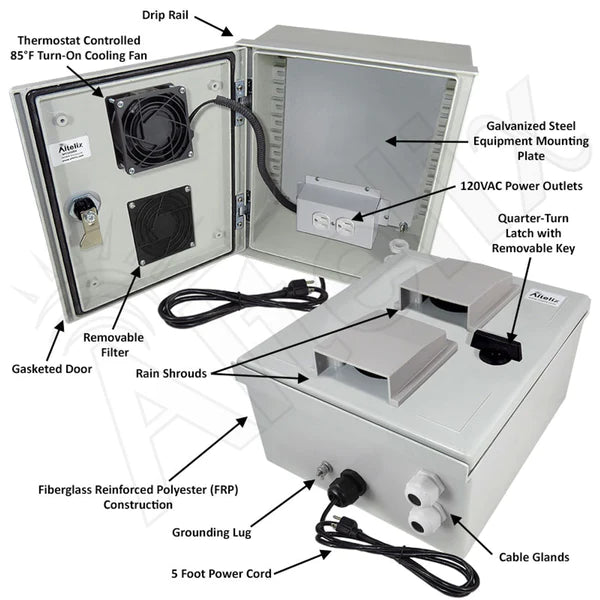

  Construction and Features
  This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and a quarter-turn latch to secure the enclosure and is locked and unlocked using the included removable key. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

  This base configuration consists of the fiberglass enclosure with hinged lid. It can be drilled and modified by the installer to suit unique site requirements.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

  Power
  This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets.

  Plug and Play
  The NFC121006VFA1C features a 5 foot pre-wired power cord to provide power to the internal 120VAC outlets, so no additional wiring is required. Simply mount the enclosure then plug the power cord into a 120VAC outlet.

  Cable Glands
  The enclosure features (2) of our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Cooling Fan Ventilation
  This enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning.

  Equipment Mounting Plate
  The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

  Mounting
  Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.




• 3R
• 3RX
