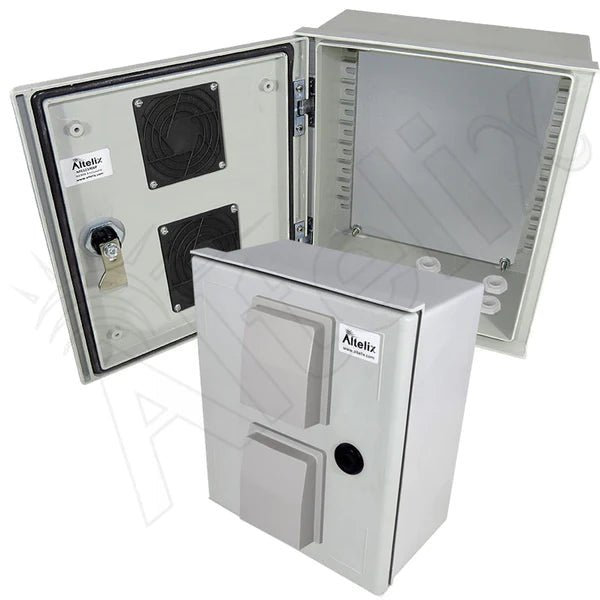

Altelix 12x10x6 Vented Fiberglass Weatherproof NEMA Enclosure with Steel Equipment Mounting Plate

• Features Dual 3" Vents with Rain Shields to Expel Heat Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction Includes Blank Galvanized Steel Equipment Mounting Plate Quarter-Turn Door Latch with Key Bonus Aluminum Bottle Opener Key Now Included! (4) Mounting Feet Included NEMA Type 3R, 3RX / IP24 Rated Optional Lockable Latches Available

  Applications Rapid Deployment Systems Indoor / Outdoor WiFi Equipment SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection of Equipment from Theft or Damage Concealment of Electronic Equipment



  The Altelix NFC121006VP Vented Weatherproof NEMA Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering.

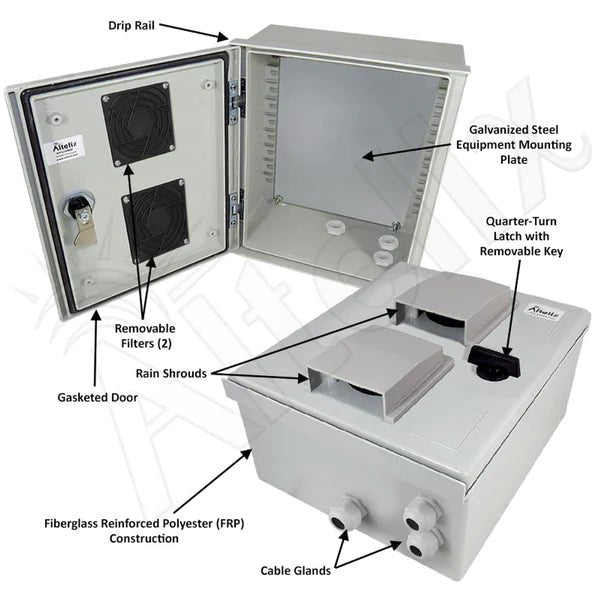

  Construction and Features
  This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and a quarter-turn latch to secure the enclosure and is locked and unlocked using the included removable key. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

  Cable Glands
  The enclosure features (3) of our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Galvanized Steel Equipment Plate
  This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 16 Gauge (1.5mm thick) galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

  Ventilation
  To help expel heat from within the enclosure, this model features two 3 inch air vents with cleanable screens. Rain shields help prevent rain water from entering the enclosure.

  Mounting
  Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.




• 3R
• 3RX
