Altelix 14x12x10 Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan and 120 VAC Outlets

Fan Cooled NEMA Enclosure with 120VAC Power Outlets

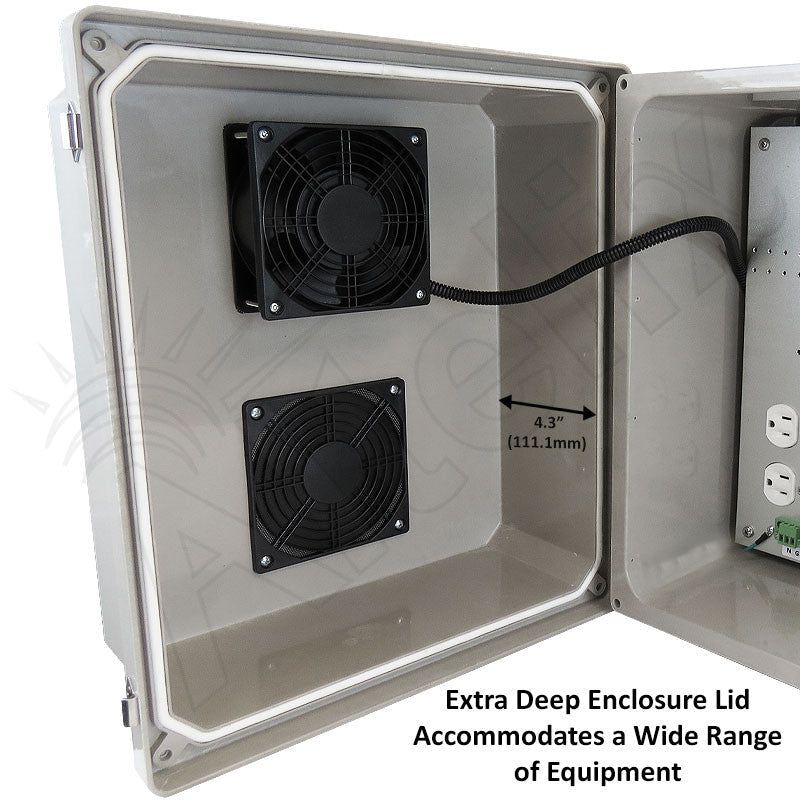

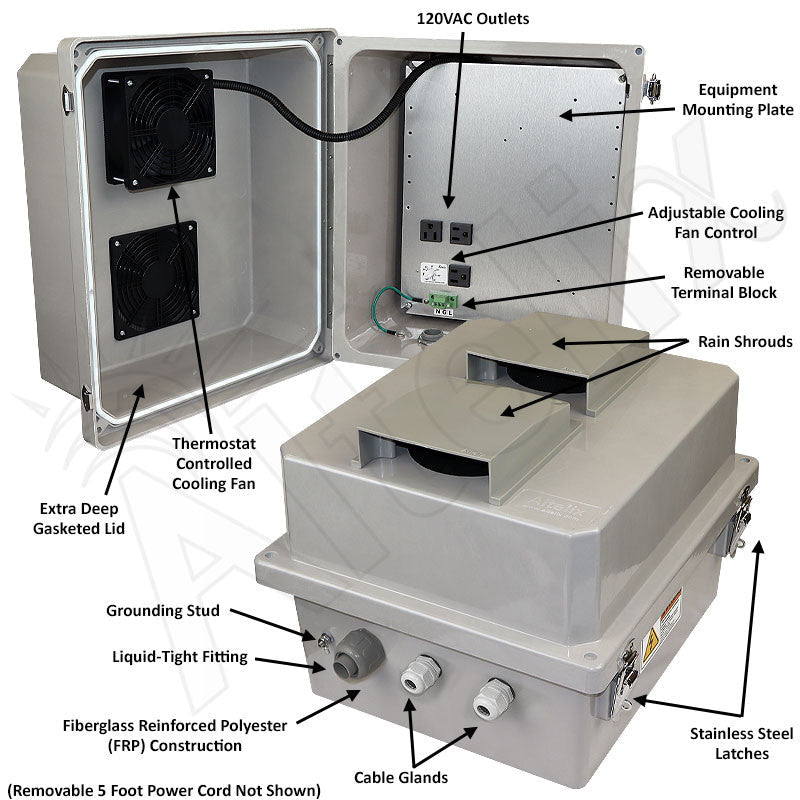

The Altelix NF141210VFA1C-A_1 features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The aluminum equipment mounting plate features pre-wired 120VAC power outlets for your equipment.

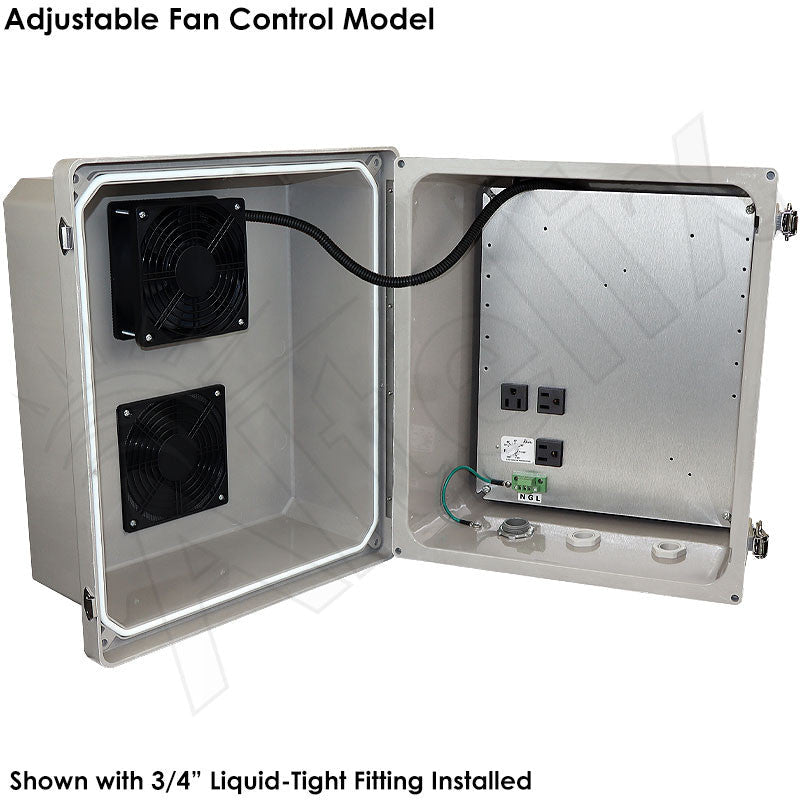

Precision Cooling with Adjustable Fan Control
This enclosure features an adjustable fan control now located directly on the equipment mounting plate. This intuitive feature allows the user to manually set the cooling fan’s turn-on temperature from 30°F (-1°C) to 140°F (30°C), giving precise control over thermal management based on specific equipment needs. This control is preset from the factory for 100°F (38°C) turn on. Whether you're housing sensitive electronics or high-power devices, this smart cooling solution helps extend equipment life and maintain optimal performance. Rain shrouds located on the lid of the enclosure keep rain water from entering while allowing ventilation for installed equipment. The cooling fan is wired internally, leaving all the power outlets available for installed equipment.

Flexible Power Outlet Configuration
Inside the enclosure, you'll find three pre-wired power outlets mounted on the equipment mounting plate—but with a twist. These outlets are rotatable, making it easy to accommodate plug-in power supplies of various shapes and sizes. This small but powerful feature helps eliminate cable clutter and improves accessibility during setup and maintenance. These power outlets are featured on the adjustable cooling fan model. Models with fixed thermostats feature (2) standard duplex power outlets providing a total of four outlets. A terminal strip is provided for easy wiring by a qualified installer.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Cable Glands

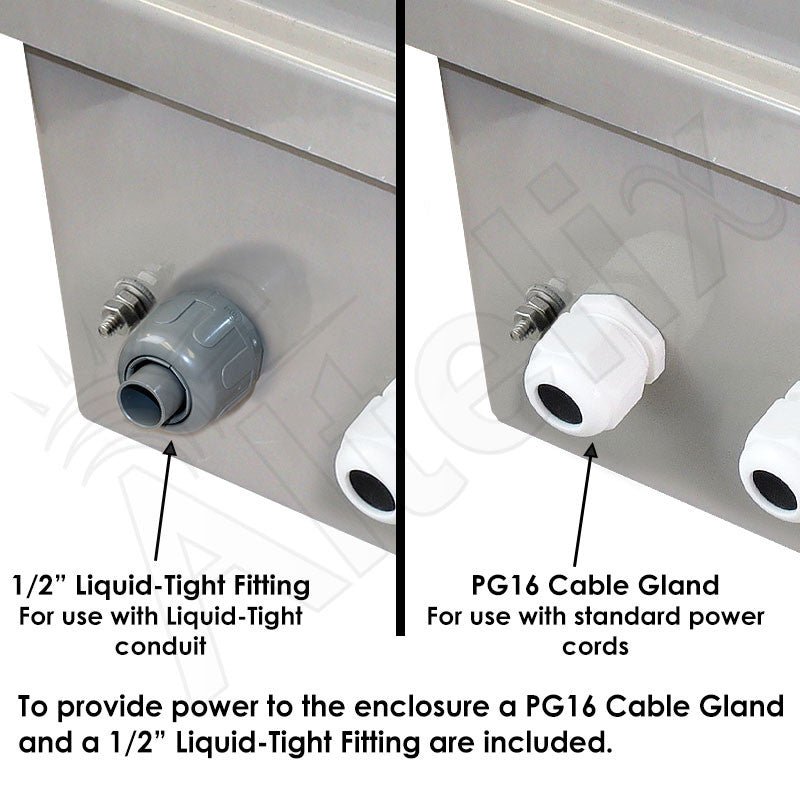

The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. To provide power to the enclosure a 1/2" Liquid-Tight fitting as well as a PG16 Cable Gland are included.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting.

• 3R
• 3RX
