Nema Supply

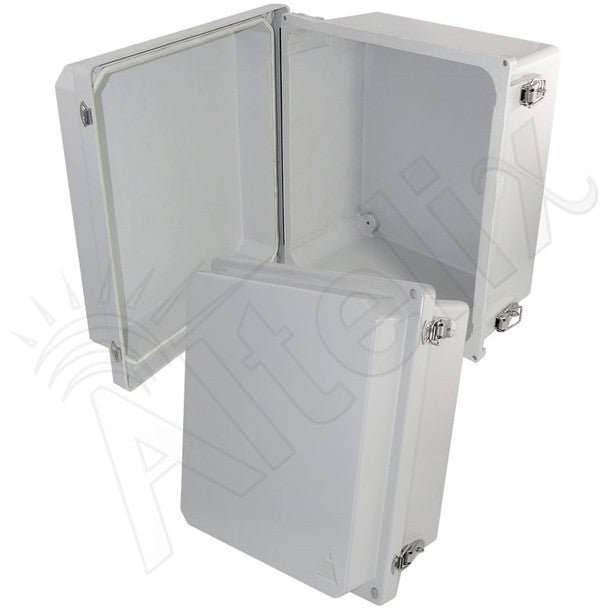

Altelix 14x12x10 Fiberglass Weatherproof NEMA 4X Enclosure

In stock
SKU: NF141210
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
$204.99

Specifications

Product Type Enclosures
Material Fiberglass
Application Indoor, Outdoor
IP Equivalent IP65, IP66
Height 14
Width 12
Depth 10
Inner Dimensions 13.0 x 11.0 x 9.7 Inches
Cover Type Hinged Cover, Opaque
Latch Type Padlockable Latch
Mount Type Wall Mount
Mounting Plate Included No
Features

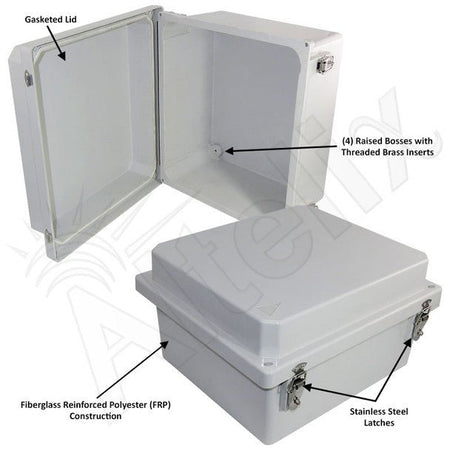

  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Meets NEMA 1, 2, 4, 4X, 12, 13, IP65, IP66
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins

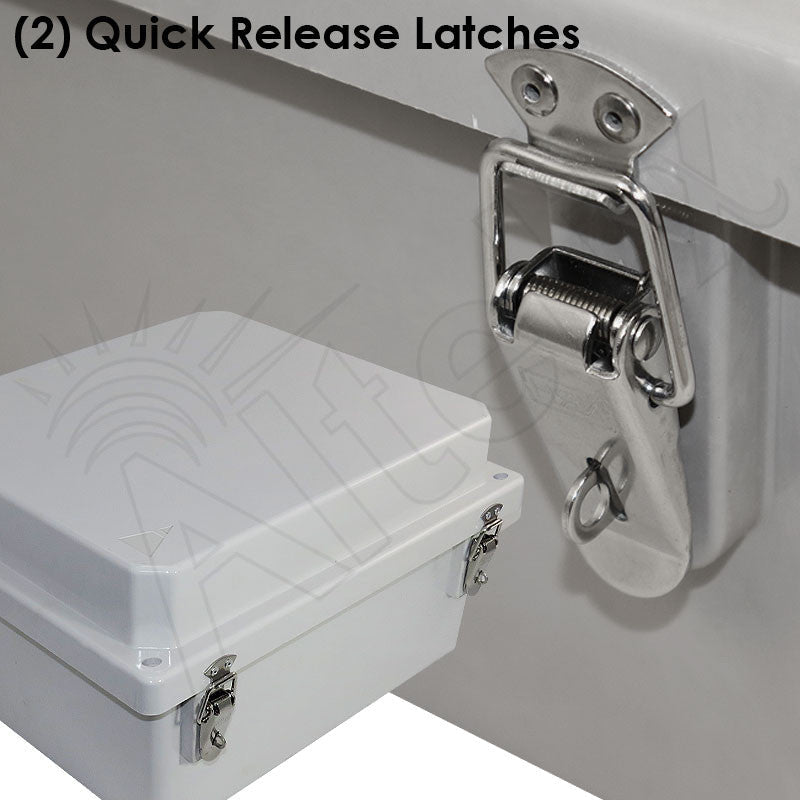

  • (2) Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant

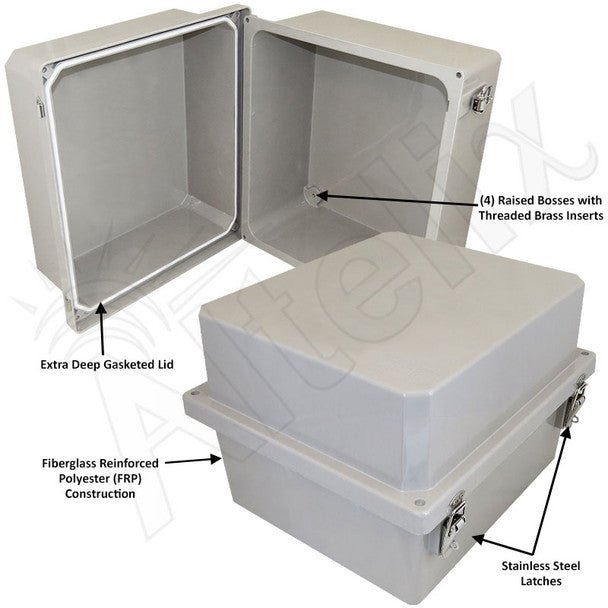

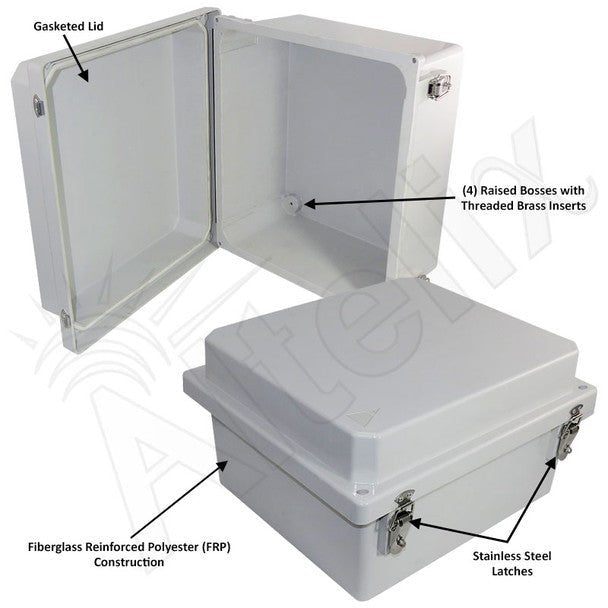

  • Raised Bosses and Threaded Brass Inserts for Plate Mounting
  • Includes Stainless Steel Mounting Brackets
  • RF Transparent and Non-Conductive
  • Outer Dimensions: 15.7 x 13.8 x 10.5 Inches (401 x 352 x 268 mm)
  • Inner Dimensions: 12.7 x 10.7 x 9.4 Inches (323 x 273 x 240 mm)
  • Pole Mounting Kit Available
 Applications
  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Telephone Equipment Enclosure
  • Solar Equipment Enclosure
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure


Extreme Protection Built to Last

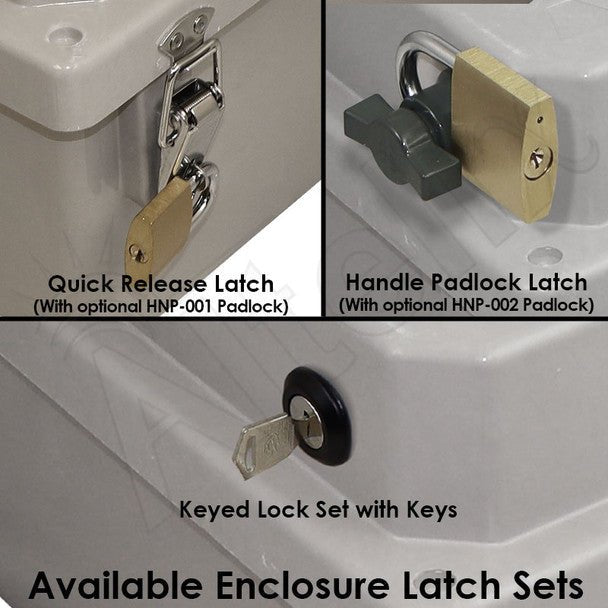

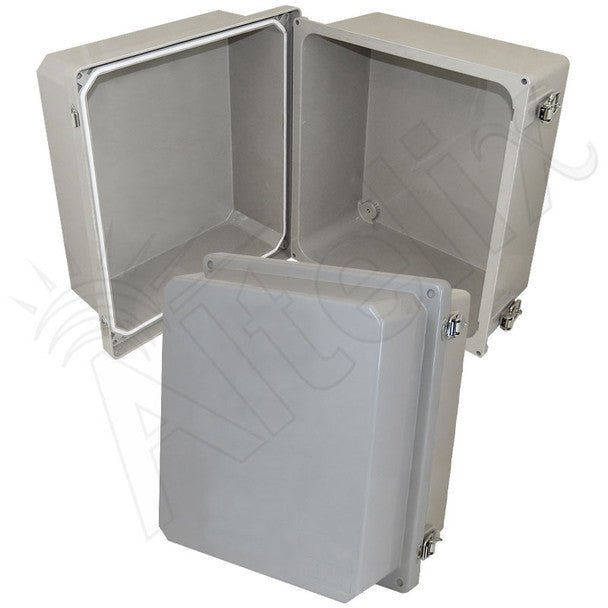

The Altelix NF141210 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door features multiple latch options to secure the enclosure.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

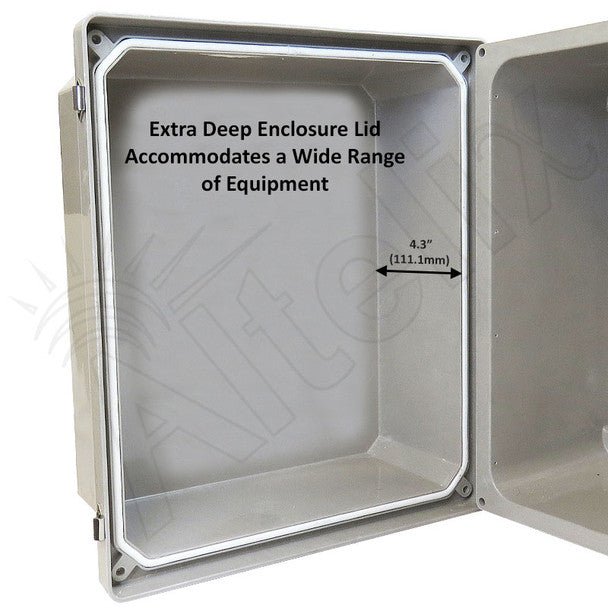

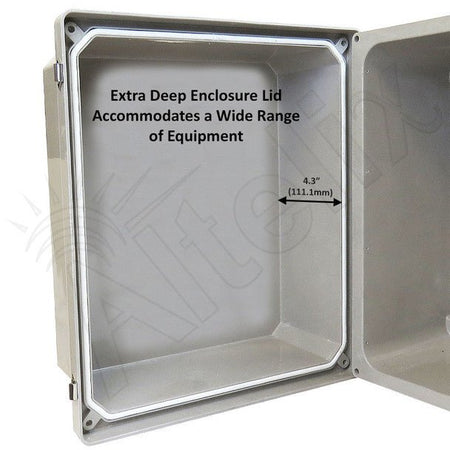

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

Mounting

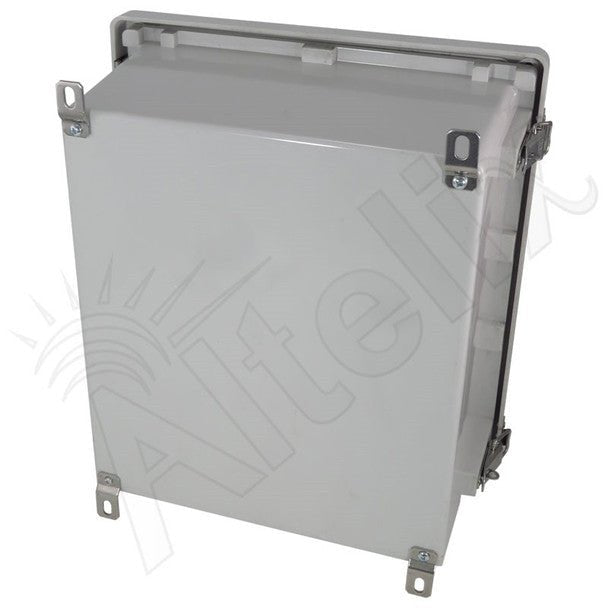

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Additional Accessories
  • 1
  • 2
  • 4
  • 4X
  • 12
  • 13

No downloads available for this variant.
