Altelix 14x12x6 Fiberglass NEMA 4X Weatherproof Enclosure with Quick Release Latches
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 14 |
| Width | 12 |
| Depth | 6 |
| Inner Dimensions | 12.7 x 10.7 x 5.5 Inches |
| Cover Type | Gasketed Cover, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
-

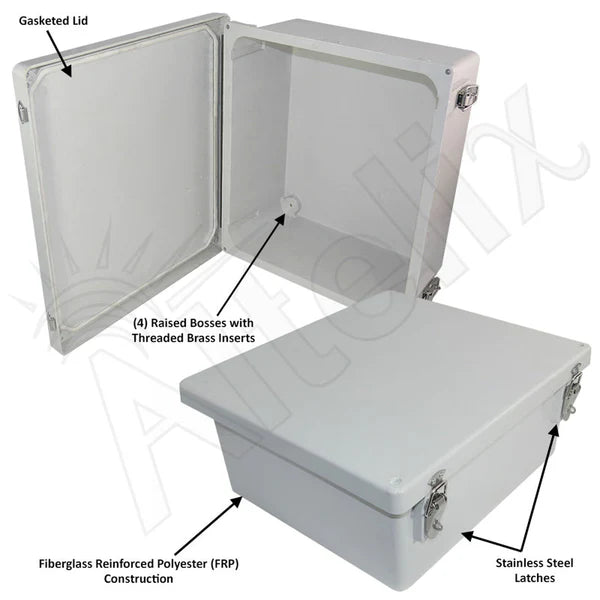

Features - Water Resistant JIC Enclosure Design with Gasketed Lid
- Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
- Raised Bosses and Threaded Brass Inserts for Plate Mounting
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Includes Stainless Steel Mounting Feet
- RF Transparent and Non-Conductive
- Pole Mounting Kit Available
Applications
- Rapid Deployment
- Harsh Environments
- WiFi Enclosure
- RFID Reader Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Telephone Equipment Enclosure
- Solar Equipment Enclosure
- Outdoor Use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
- Building Automation Controls
- Industrial Controls Enclosure
Extreme Protection Built to Last
The Altelix NF141206 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.
Mounting

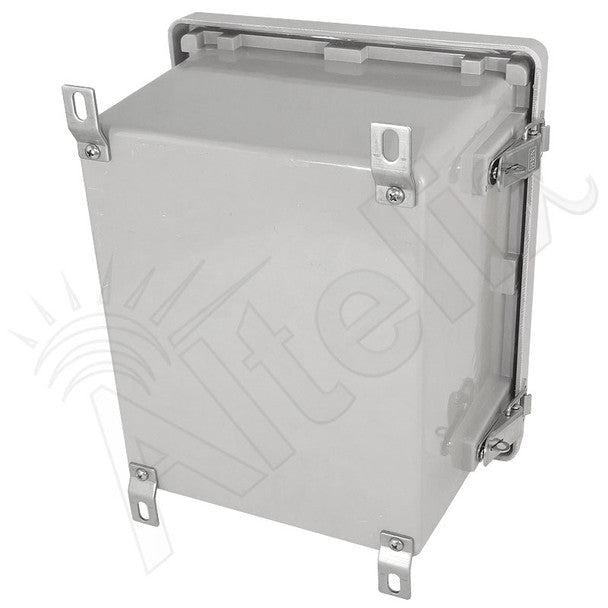

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.
Additional Accessories
- Altelix Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide — $24.99
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $74.99
- Altelix Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $124.99
- Altelix Blank Aluminum Equipment Mounting Plate for NF141206, NF141208 & NF141210 Series Enclosures — $36.99
- Altelix Blank No-Drill PVC Equipment Mounting Plate with Screws for NF141206, NF141208 & NF141210 Series Enclosures — $18.99
- Altelix Blank Galvanized Steel Equipment Mounting Plate for NF141206, NF141208 & NF141210 Series Enclosures — $15.99
