Altelix 14x12x6 Fiberglass Weatherproof NEMA 4X Enclosure with Blank Aluminum Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 14 |
| Width | 12 |
| Depth | 6 |
| Inner Dimensions | 13.0 x 11.0 x 4.9 Inches |
| Cover Type | Gasketed Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Mounting Feet |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Mounting Plate Dimensions | 11x13 |
- Description
-
Extreme Protection Built to Last

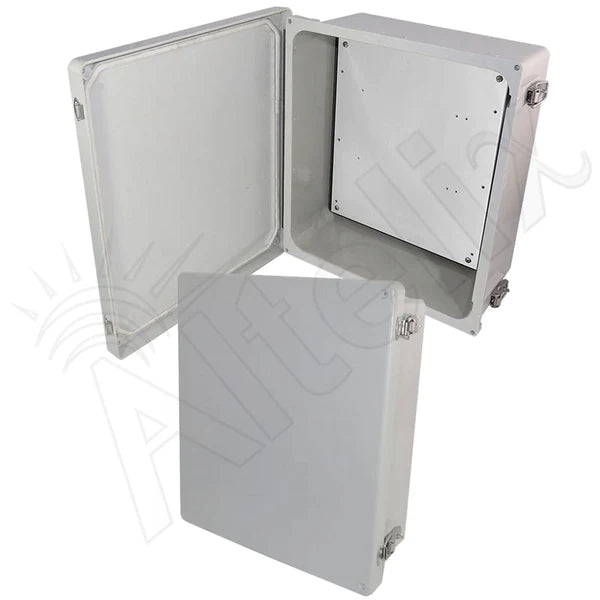

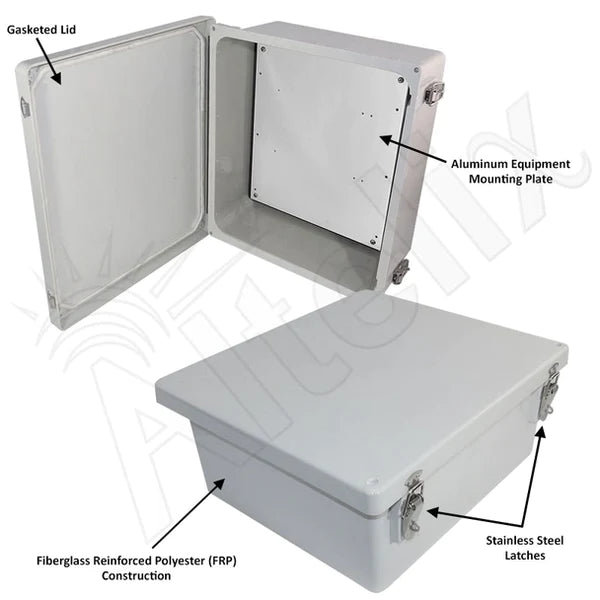

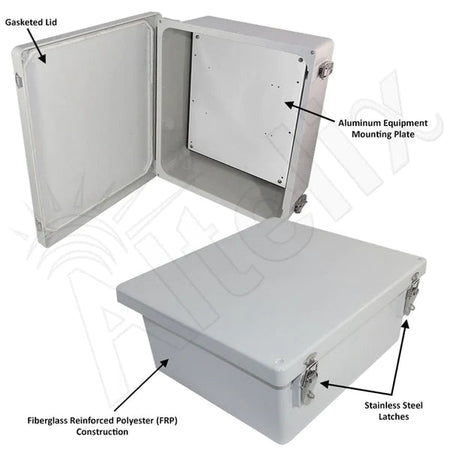

The Altelix NF141206P NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.
Aluminum Equipment Plate
This model features an easy to drill, aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting

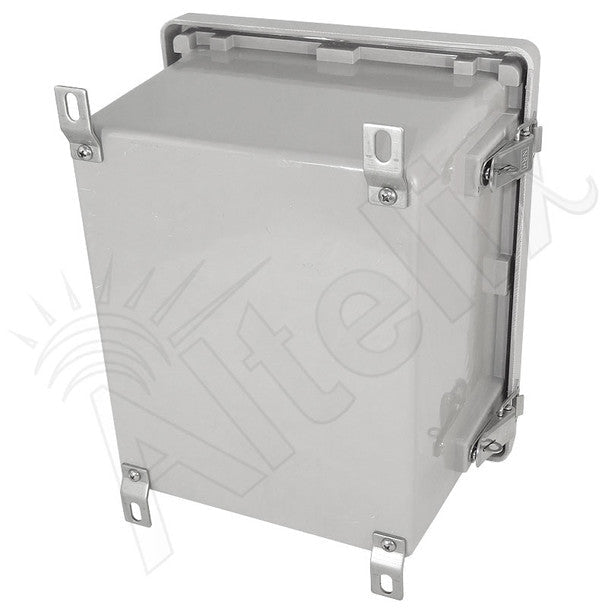

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).
Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
No downloads available for this variant.
