Altelix 14x12x6 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate & 120 VAC Outlets

• Features (4) Pre-Wired 120VAC Outlets Removable 120VAC Power Terminal Block Aluminum Equipment Mounting Plate Stainless Steel Hinge and Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes Cable Glands and Stainless Steel Mounting Feet Now Includes a 1/2" Liquid-Tight Fitting for Providing Power to the Enclosure RF Transparent Enclosure Pole Mounting Kit Available

  Applications Rapid Deployment Communications Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure

  Weatherproof Protection and 120VAC Power Outlets

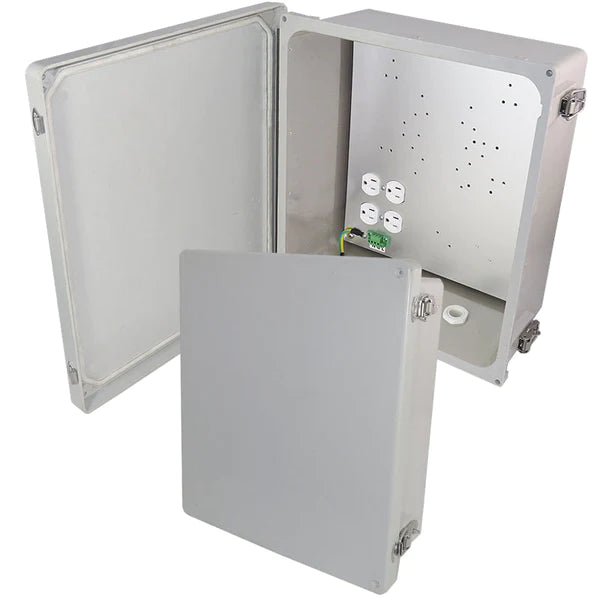

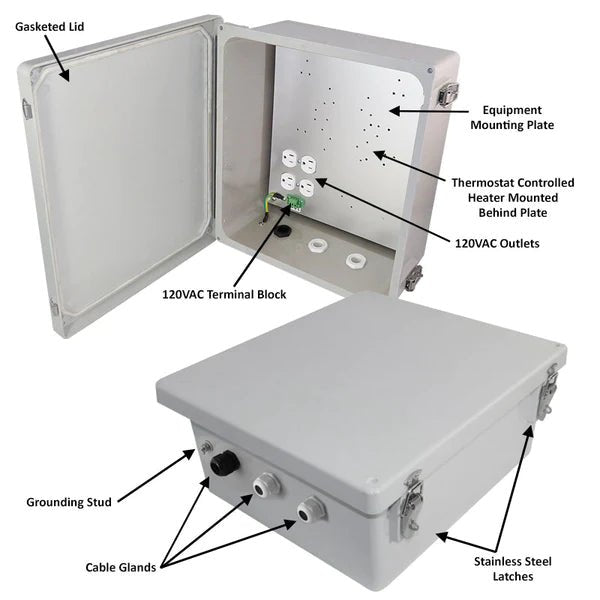

  The Altelix NF141206A1 NEMA 4X Weatherproof Enclosure features four pre-wired 120VAC power outlets and a quick-connect terminal strip for easy wiring by a qualified installer. The finished aluminum equipment mounting plate features multiple tapped holes for equipment installation and can be easily drilled by the installer for unique application requirements.

  Extreme Protection Built to Last

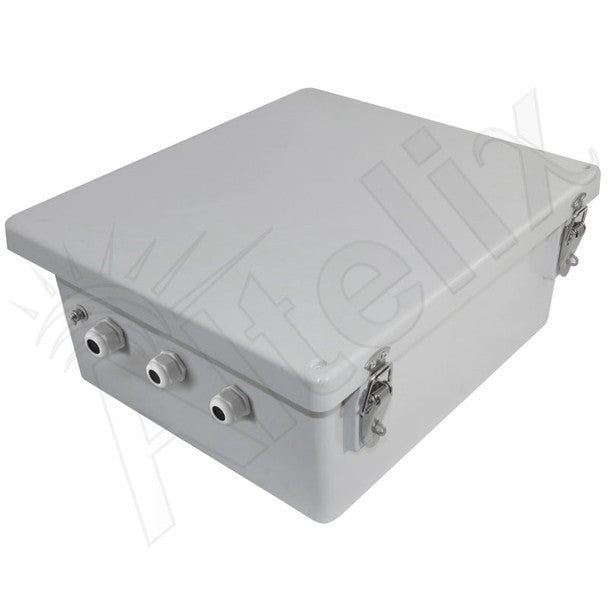

  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

  Cable Glands

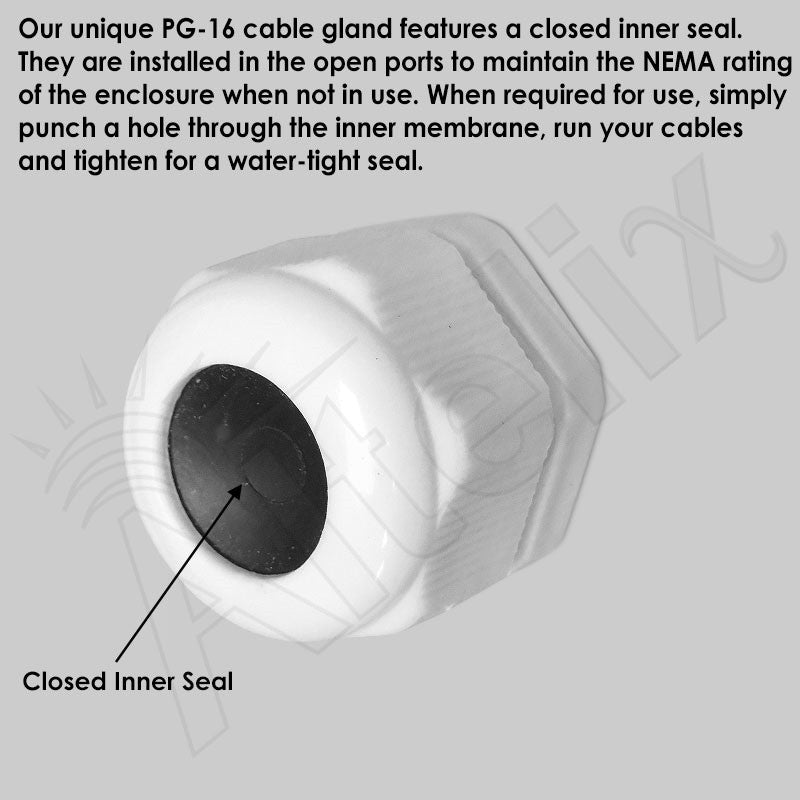

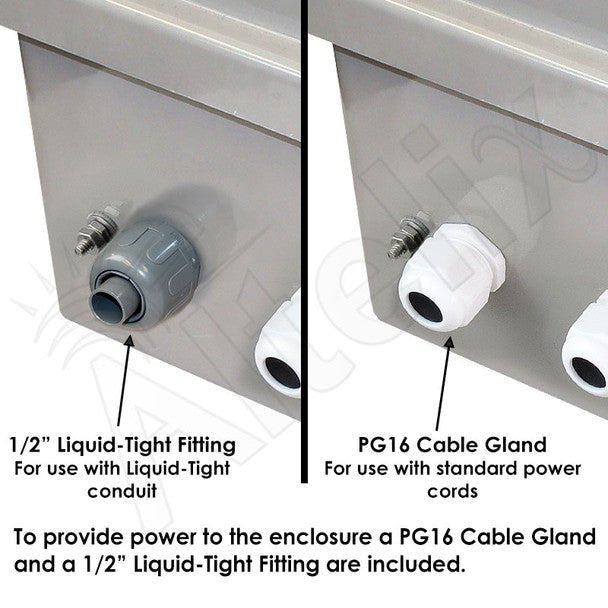

  The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. To provide power to the enclosure a 1/2" Liquid-Tight fitting as well as a PG16 Cable Gland are included.

  Terminal Block

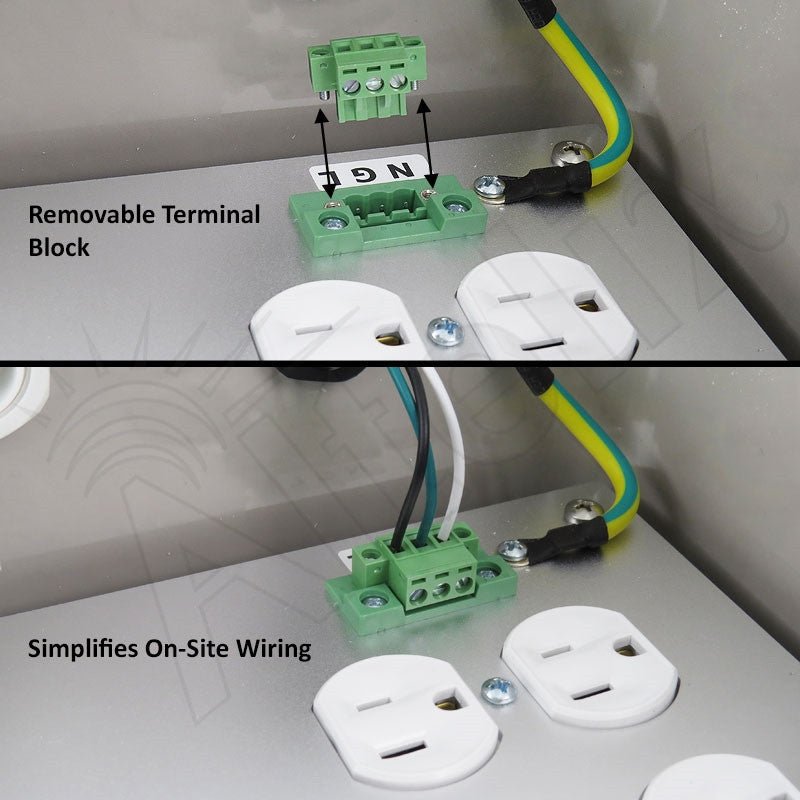

  This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

  Mounting

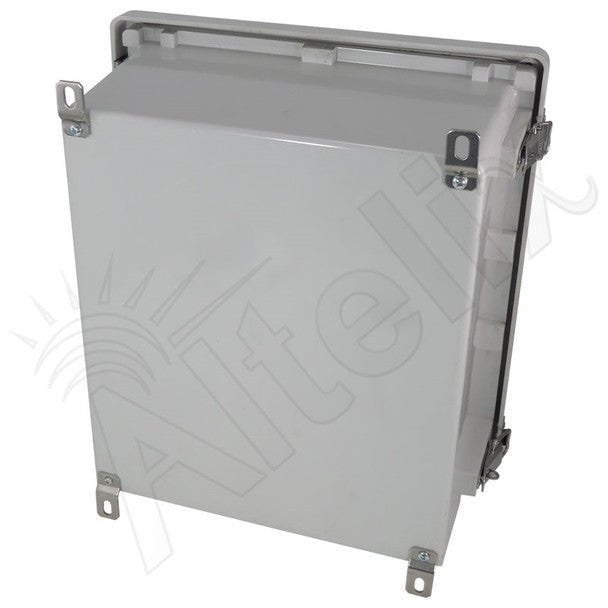

  Stainless steel brackets are included for secure wall mounting.

• 1
• 2
• 4
• 4X
• 12
• 13
