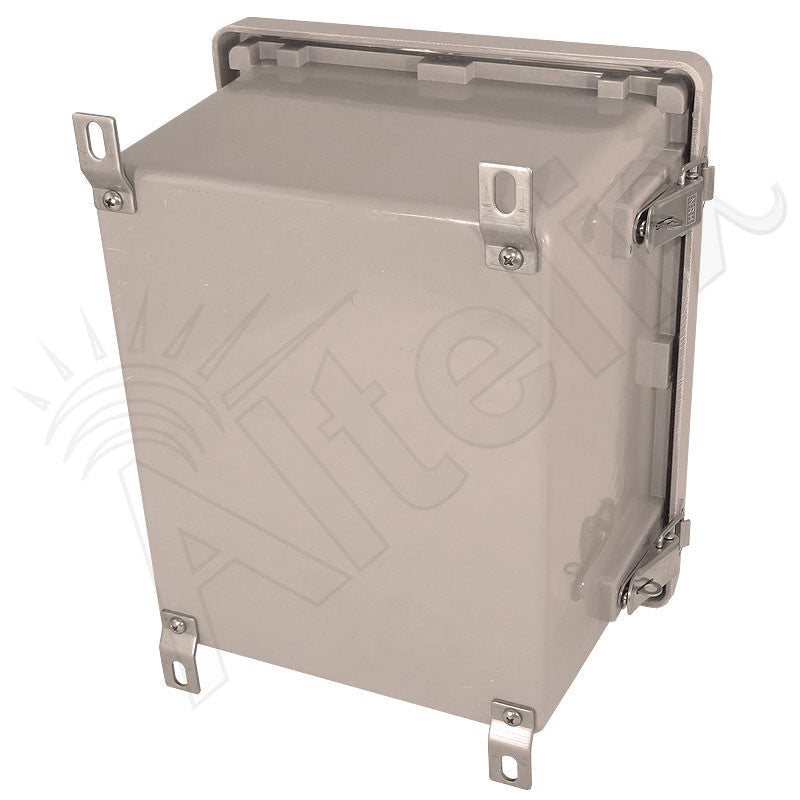

Altelix 14x12x6 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 14 |
| Width | 12 |
| Depth | 6 |
| Inner Dimensions | 13.0 x 11.0 x 4.5 Inches |
| Cover Type | Hinged Cover, Opaque, Gasketed Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Mounting Plate Dimensions | 10.9 x 12.8 in. |
| Power Options | 120VAC |
| Power Cord Length | Pre-wired 5 foot 3-Prong Power Cord |
-
Features - No Electrical Wiring Required
- Pre-wired 5 foot 3-Prong Power Cord
- (4) Pre-Wired 120VAC Outlets
- Aluminum Equipment Mounting Plate
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
- Includes Cable Glands and Stainless Steel Mounting Feet
- RF Transparent Enclosure
- Pole Mounting Kit Available
Applications - Rapid Deployment Equipment
- Rapid Deployment
- Harsh Environments
- Outdoor WiFi Enclosure
- RFID Reader Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Industrial Controls Enclosure
- Building Automation Controls
- Outdoor use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
Plug and Play Power for Rapid Deployment
The Altelix NF141206A1C NEMA enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting.
Additional Accessories
- Altelix 35mm Top Hat DIN Rail Kit for NP141105 & NFC121006 Series Enclosures — $10.99
- Altelix Universal Mounting System — $46.99
- Altelix Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide — $24.99
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $74.99
- Altelix Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $124.99
