Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Outdoor |
| IP Equivalent | IP24 |
| Height | 14 |
| Width | 12 |
| Depth | 6 |
| Inner Dimensions | 11.0 x 9.0 x 5.7 Inches |
| Cover Type | Gasketed Cover, Hinged Cover, Opaque |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
| Cooling & Heating | Vents Only |
-
Features - Two (2) 4" Vents with Rain Shields and Screens
- Water Resistant JIC Enclosure Design with Gasketed Lid
- NEMA Type 3R, 3RX / IP24 Rated
- Raised Bosses and Brass Inserts for Plate and Accessory Mounting
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Includes Cable Glands and Stainless Steel Mounting Feet
- RF Transparent and Non-Conductive
- Pole Mounting Kit Available
Applications
- Rapid Deployment Systems
- Harsh Environments
- WiFi Enclosure
- RFID Reader Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Solar Equipment Enclosure
- Outdoor use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
- Building Automation Controls
- Industrial Controls Enclosure
- Battery Box
Vented NEMA Enclosure

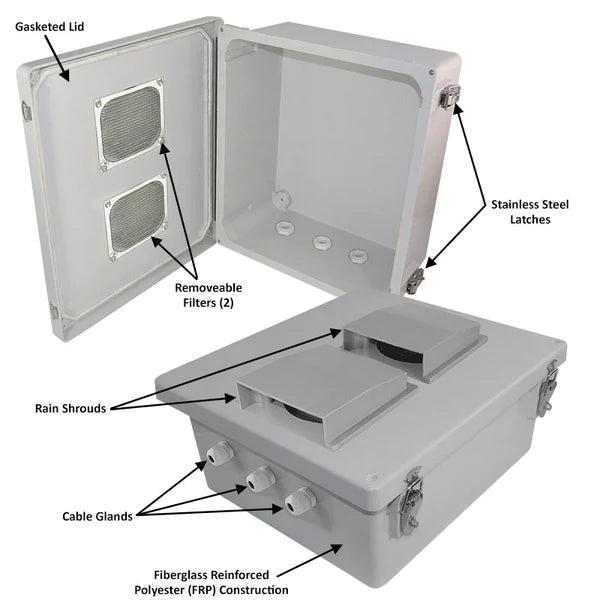

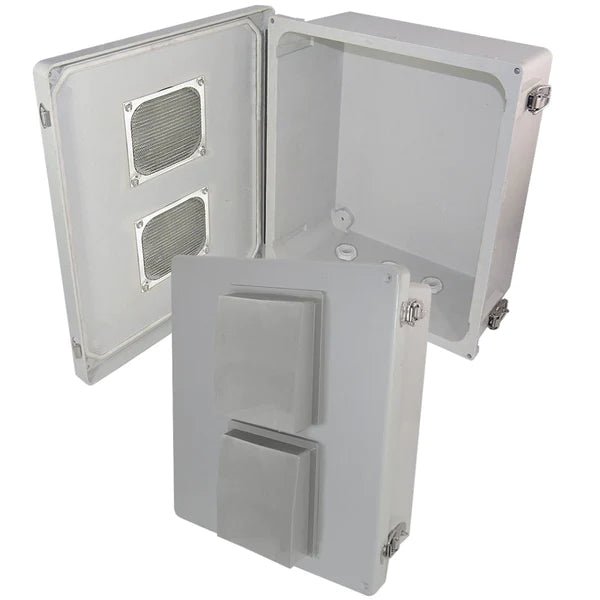

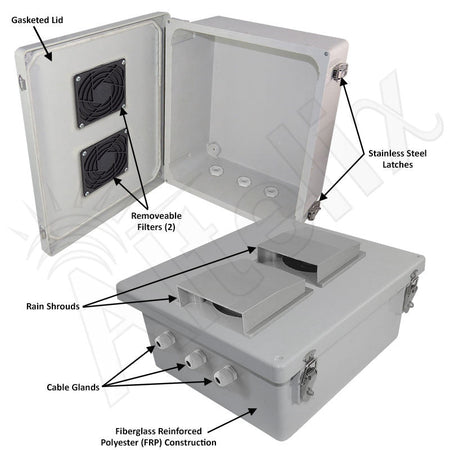

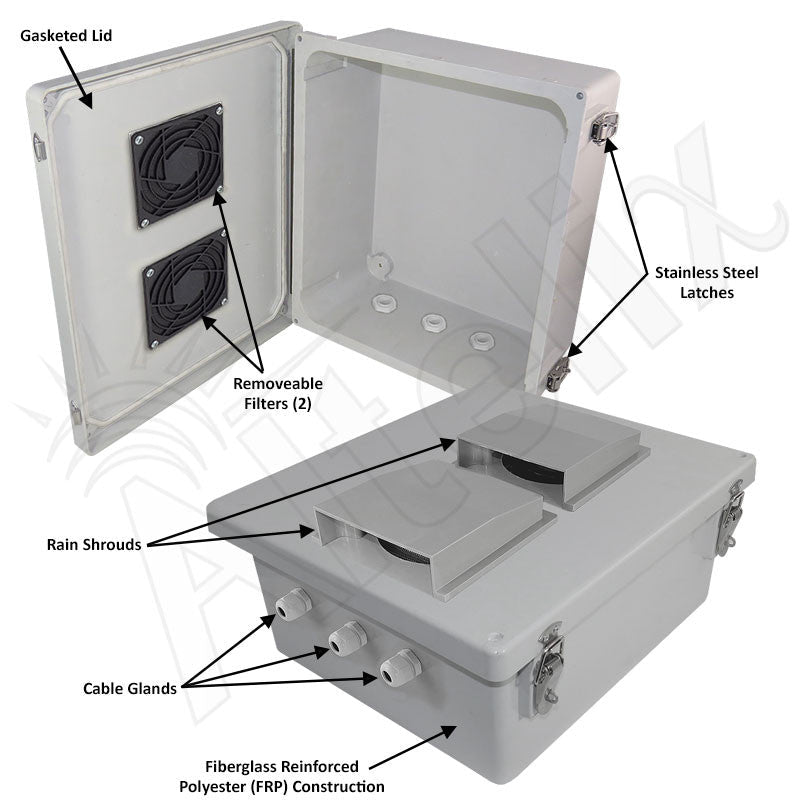

The Altelix NF141206V features two 4 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting equipment from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. The enclosure features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting.
Additional Accessories
- Altelix Stainless Steel Universal Pole Mount Kit with Adjustable Bands for Enclosures 7 to 12 Inches Wide — $24.99
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $74.99
- Altelix Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures — $124.99
- Altelix Blank Aluminum Equipment Mounting Plate for NF141206, NF141208 & NF141210 Series Enclosures — $36.99
- Altelix Blank No-Drill PVC Equipment Mounting Plate with Screws for NF141206, NF141208 & NF141210 Series Enclosures — $18.99
- Altelix Blank Galvanized Steel Equipment Mounting Plate for NF141206, NF141208 & NF141210 Series Enclosures — $15.99
