Altelix 14x12x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 14 |
| Width | 12 |
| Depth | 6 |
| Inner Dimensions | 12.7 x 10.7 x 5.5 Inches |
| Cover Type | Gasketed Cover, Opaque, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Specialty Enclosure | Din Rail Enclosure |
| Mounting Plate Included | No |
-
Features - Steel Din Rail Mounting Brackets with 10 Rail Mounting Positions
- Includes (2) Steel 35mm Top Hat DIN Rails and Screws
- Water Resistant JIC Enclosure Design with Gasketed Lid
- Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Includes Cable Glands and Stainless Steel Mounting Feet
- RF Transparent and Non-Conductive
- Pole Mounting Kit Available
Applications
- Rapid Deployment Communications
- DIN Rail Mounted Equipment
- Harsh Environments
- Building Automation Controls
- Industrial Controls Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Solar Equipment Enclosure
- Outdoor Use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

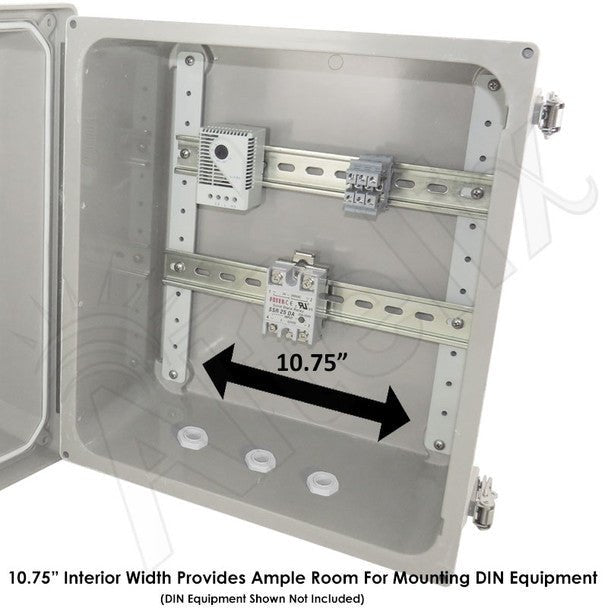

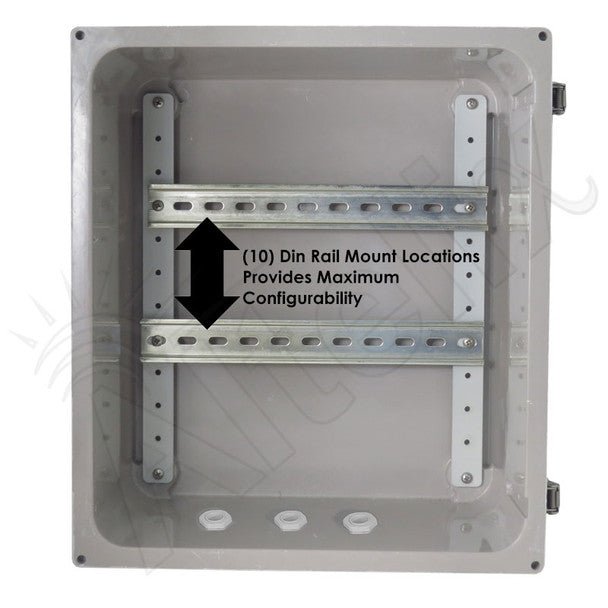

The Altelix NF141206-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 10 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting.
