Altelix 14x12x6 Insulated Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan and 120 VAC OutletsAltelix
Insulated Fan Cooled NEMA Enclosure with 120VAC Power Outlets

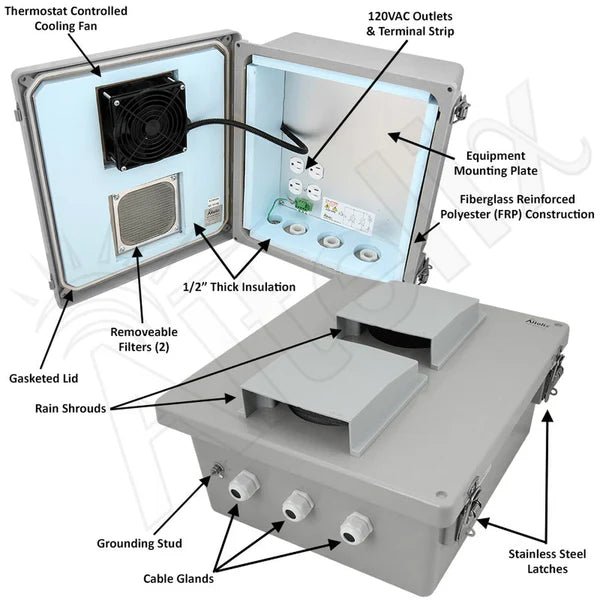

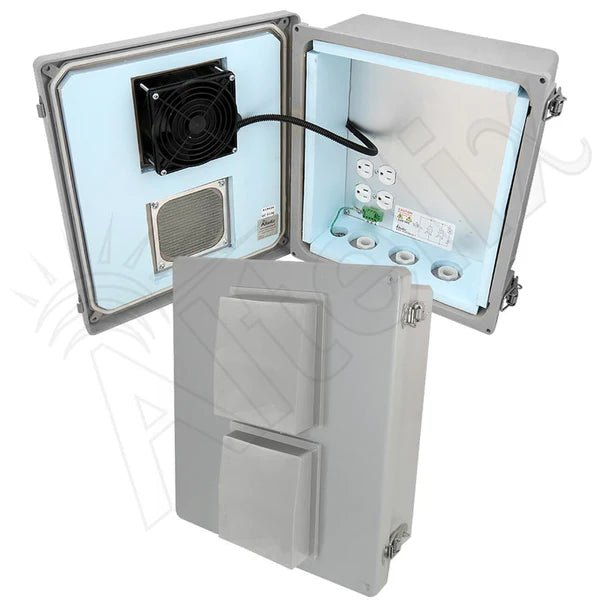

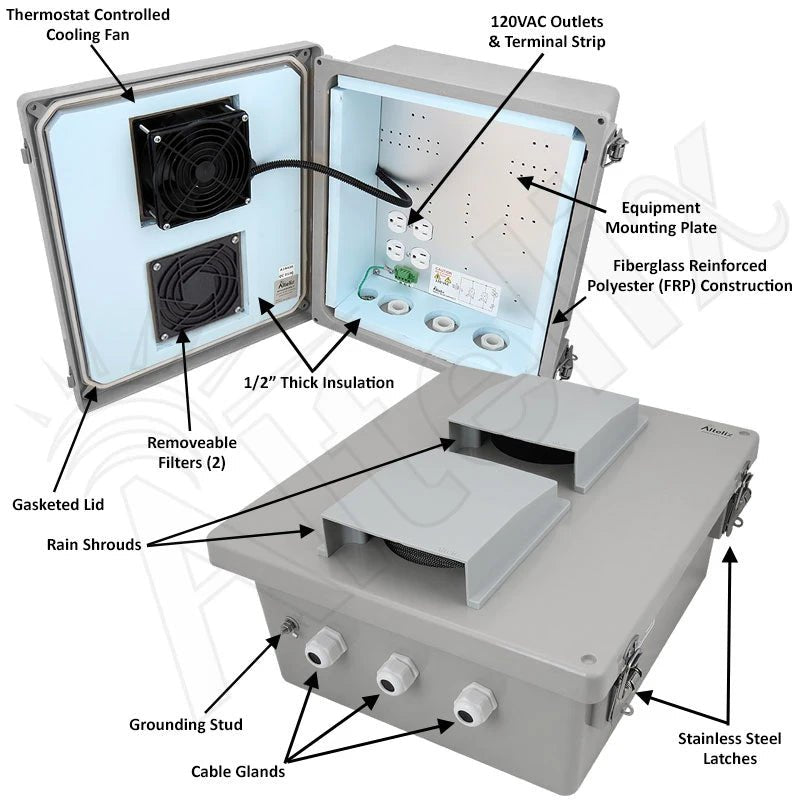

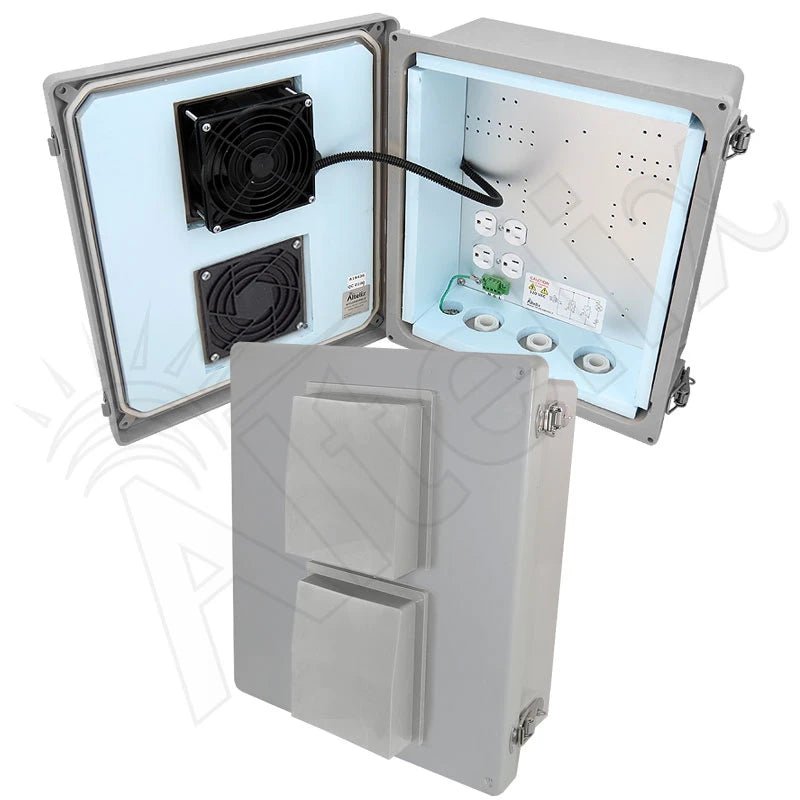

The Altelix NF141206VFA1-Z features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment.
This enclosure provides four pre-wired 120VAC power outlets and a terminal strip, for easy wiring by a qualified installer. The fan is wired internally, leaving all 4 power outlets available for installed equipment.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
This heated enclosure features 0.50 inch (12.7mm) thick RF Transparent insulation attached to all interior sides of the enclosure.
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
