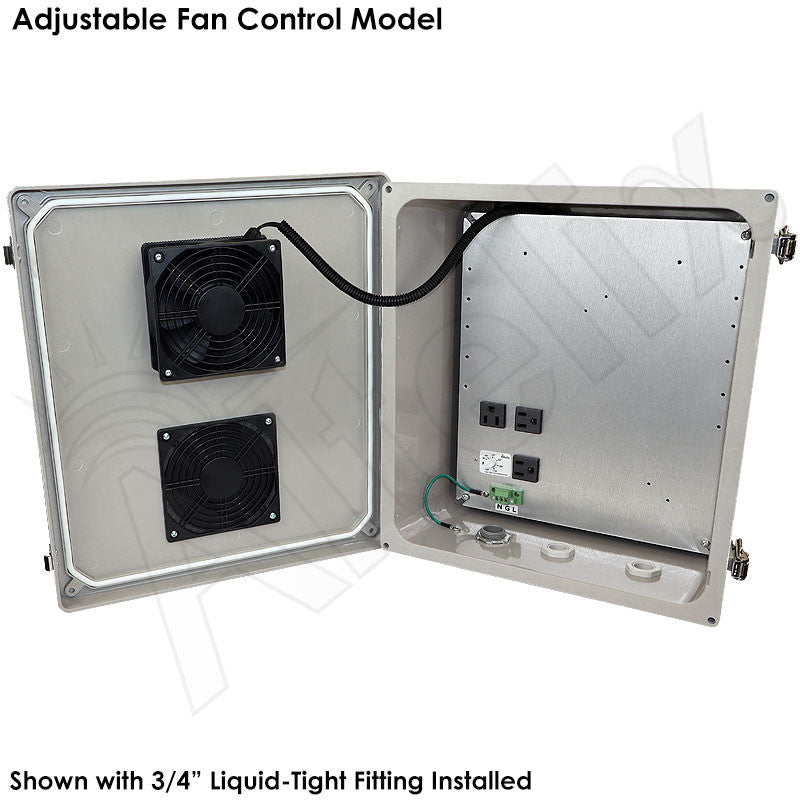

Altelix 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan and 120 VAC OutletsAltelix
Fan Cooled NEMA Enclosure with 120VAC Power Outlets
The Altelix NF141208VFA1 features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.
This enclosure provides four pre-wired 120VAC power outlets and a terminal strip for easy wiring by a qualified installer. The fan is wired internally, leaving all 4 power outlets available for your equipment.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).
Material Fiberglass Reinforced Polyester Color Gray Voltage 120VAC Max Load 15A @ 120VAC Terminal Block Wire Range 12-18 AWG Terminal Block Wire Strip Length 6-7mm Cooling Fan Turn-On Temperature 100°F (38°C) ±9°F Cooling Fan Turn-Off Temperature 79°F (26°C) ±9°F Outer Dimensions 15.7 x 13.8 x 10.1 Inches
(401 x 352 x 258 mm)
Inner Dimensions* 13.0 x 11.0 x 5.0 Inches
(330 x 279 x 127 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm) Weight 12.4 lbs. (5.6 kg) Ratings NEMA Type 3R, 3RX / IP24 Flame Rating UL94-5V *See drawing for detailed dimensions of maximum space available for equipment.
