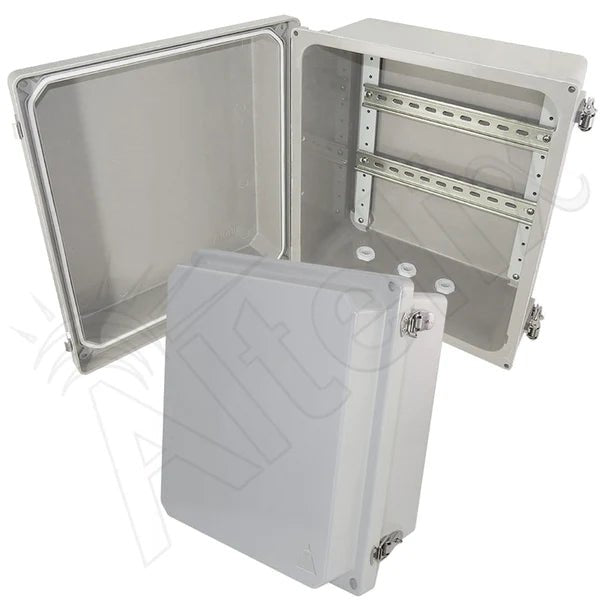

Altelix 14x12x8 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

• Features Steel Din Rail Mounting Brackets with 10 Rail Mounting Positions Includes (2) Steel 35mm Top Hat DIN Rails and Screws Extended Lid for Increased Equipment Clearance Stainless Steel Hinge and Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes Cable Glands and (4) Stainless Steel Mounting Feet RF Transparent Enclosure Available With or Without Cable Glands Installed Pole Mounting Kit Available

  Applications Rapid Deployment Systems DIN Rail Mounted Equipment Harsh Environments Building Automation Controls Industrial Controls Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Solar Equipment Enclosure Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment



  NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

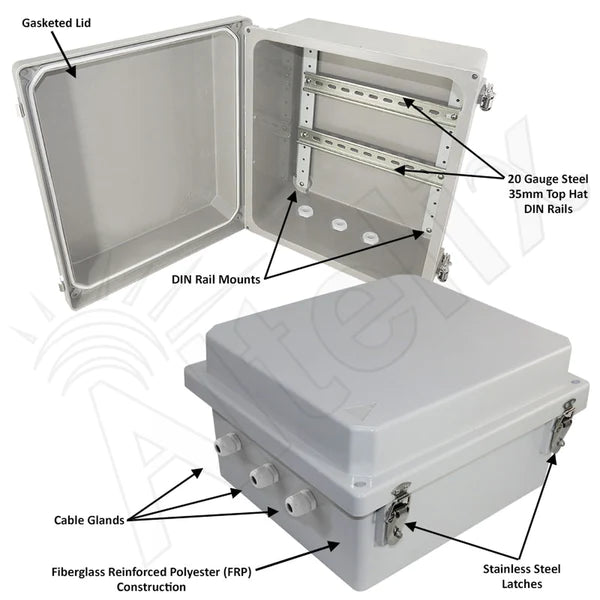

  The Altelix NF141208-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 10 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

  Cable Glands
  The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. This enclosure can also be purchased with no cable gland holes. This is ideal when the enclosure needs to be modified by the installer to suit unique site requirements.

  Mounting
  Stainless steel brackets are included for secure wall mounting.

• 1
• 4
• 4X
• 12
• 13
• 2
