Altelix 16x16x8 NEMA 4X Steel Weatherproof Enclosure with Steel Equipment Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Application | Outdoor, Indoor |
| IP Equivalent | IP66 |
| Height | 16 |
| Width | 16 |
| Depth | 8 |
| Inner Dimensions | 12.0 x 12.0 x 6.3 Inches |
| Cover Type | Hinged Cover, Opaque, Gasketed Cover |
| Latch Type | Quarter-Turn |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Galvanized Steel |
| Mounting Plate Dimensions | 14.3 x 13.8 In. |
-
Features - Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Quarter-Turn Door Latch with Key
- Bonus Aluminum Bottle Opener Key Now Included!
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 4, 4X / IP66 Rated
Applications - Indoor / Outdoor Electrical and Electronic Equipment
- Industrial Controls and Components
- Security and Surveillance Systems
- Telephone Equipment Enclosure
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Agriculture Processing Facilities
- Mining Operations and Refineries
- Marine Applications
The Altelix NS161608P Steel NEMA 4X Weatherproof Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering.
Construction and Features

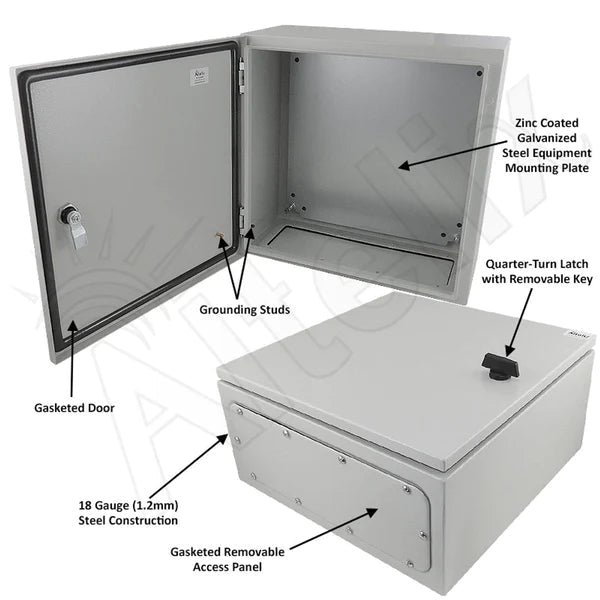

This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and a quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. A removable access panel is provided and is fully gasketed to ensure proper seal.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure.
Additional Accessories
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures — $86.99
- Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures — $149.99
- Altelix Keyed Lock Set with Keys for NS/NFC Series Enclosures — $11.99
- Altelix Replacement Latch for NS/NX Series Steel Enclosures — $11.99
- Altelix Handle Padlockable Latch for NS/NFC Series Enclosures — $24.99
- Altelix Aluminum Door Latch Key for NFC, NS and NX Series Enclosures — $11.99
