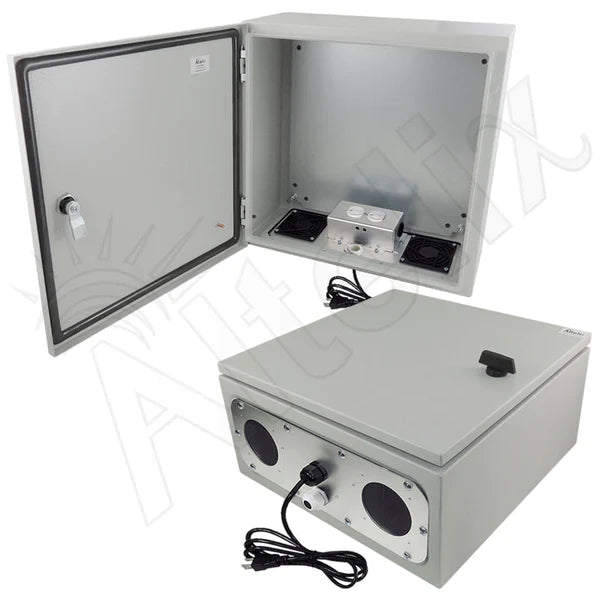

Altelix 16x16x8 Vented Steel Weatherproof NEMA Enclosure with 120 VAC Outlets and Power Cord

• Features Dual 3" vents to help expel heat 120VAC duplex outlet Heavy duty continuous seam welded 18 gauge steel construction Includes blank zinc coated galvanized steel equipment mounting plate Quarter-Turn Door Latch with Key Bonus Aluminum Bottle Opener Key Now Included! Epoxy polyester textured light gray powder coat finish NEMA Type 3R, 3RX / IP24 rated

  Applications Indoor / Outdoor electrical and electronic equipment Industrial controls and components Security and surveillance systems Outdoor use of indoor equipment Protection of equipment from theft or damage Agriculture processing facilities Mining operations and refineries Marine applications



  The Altelix NS161608VA1C Vented Steel Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

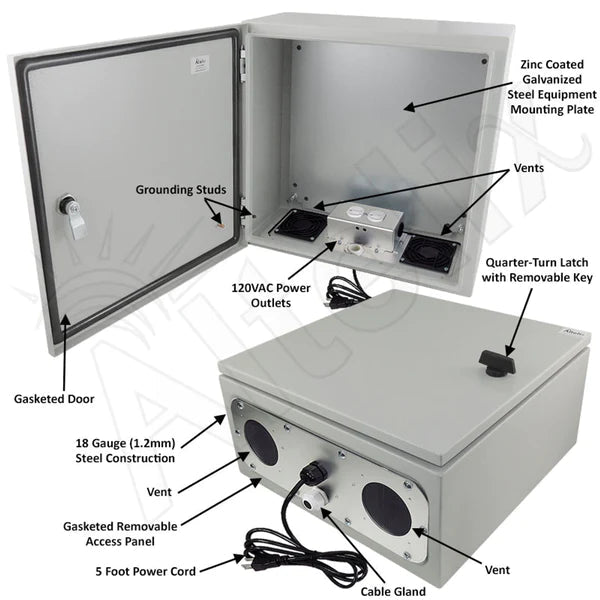

  Construction and Features

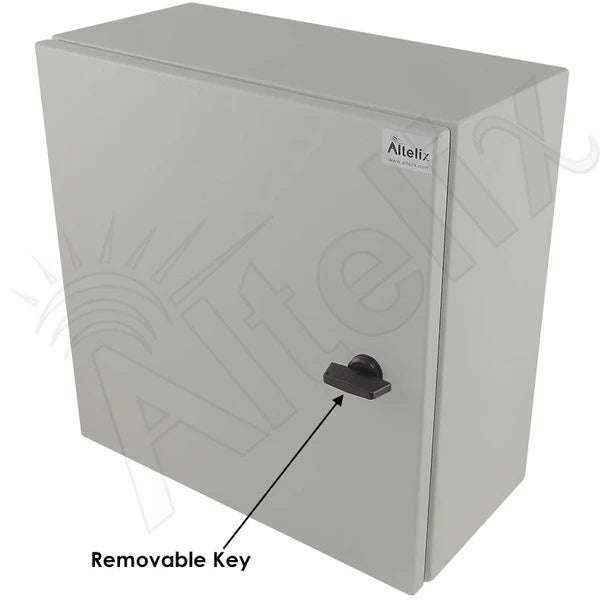

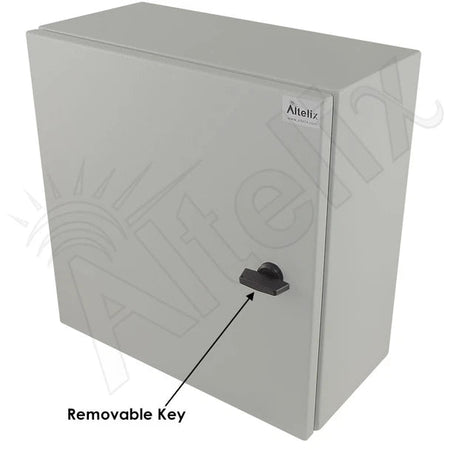

  This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and quarter-turn latch to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.

  Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

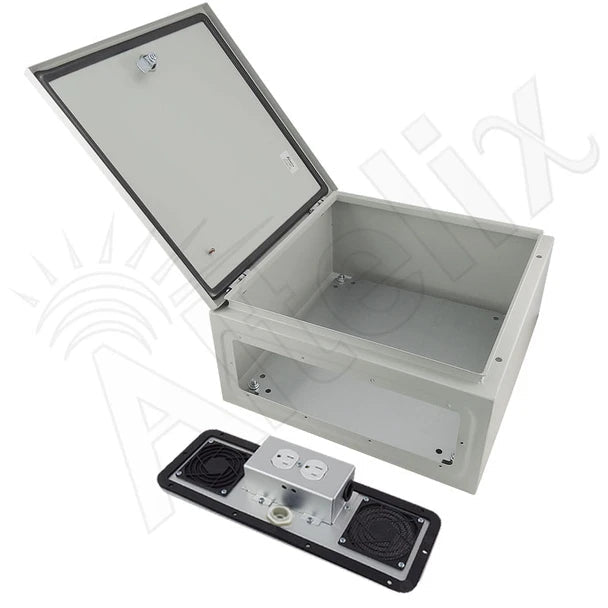

  Removable Power Module
  The NS161608VA1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.

  Ventilation
  To help expel heat from within the enclosure, this model features two 3" vents located on the removable power module.

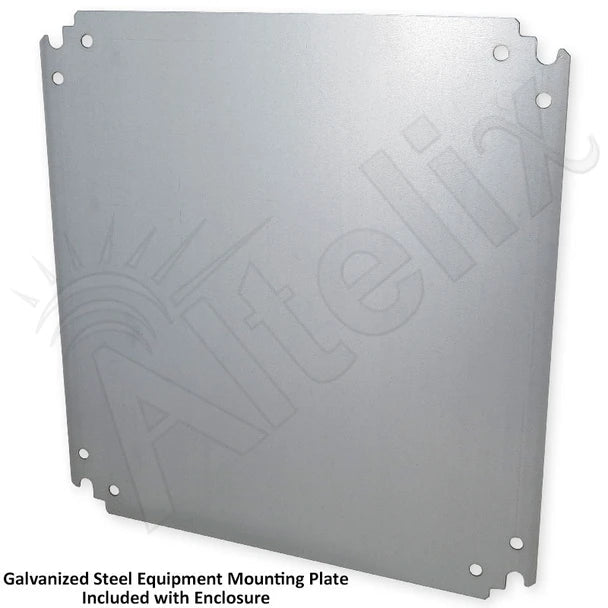

  Galvanized Steel Equipment Plate
  This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

  Cable Gland
  The enclosure features a unique PG-16 cable gland with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Mounting holes are provided inside the enclosure for mounting to a wall or other structure.

• 3R
• 3RX
