Altelix 20x16x12 Fiberglass Weatherproof NEMA 4X Enclosure
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 20 |
| Width | 16 |
| Depth | 12 |
| Inner Dimensions | 18.7 x 14.7 x 12.0 Inches |
| Cover Type | Hinged Cover, Gasketed Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
-
Features - Water Resistant JIC Enclosure Design with Gasketed Lid
- Extra Deep Extended Lid for Increased Equipment Clearance
- Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
- Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
- Fiberglass Reinforced Polyester, FRP
- Raised Bosses and Threaded Brass Inserts for Plate Mounting
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Includes Stainless Steel Mounting Feet
- RF Transparent Enclosure
- Pole Mounting Kit Available
Applications
- Rapid Deployment Systems
- Harsh Environments
- WiFi Enclosure
- RFID Reader Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Solar Equipment Enclosure
- Outdoor use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
- Building Automation Controls
- Industrial Controls Enclosure
- Telephone Equipment Enclosure
Extreme Protection Built to Last
The Altelix NF201612 Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door features multiple latch options to secure the enclosure.
This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.
Increased Interior Space

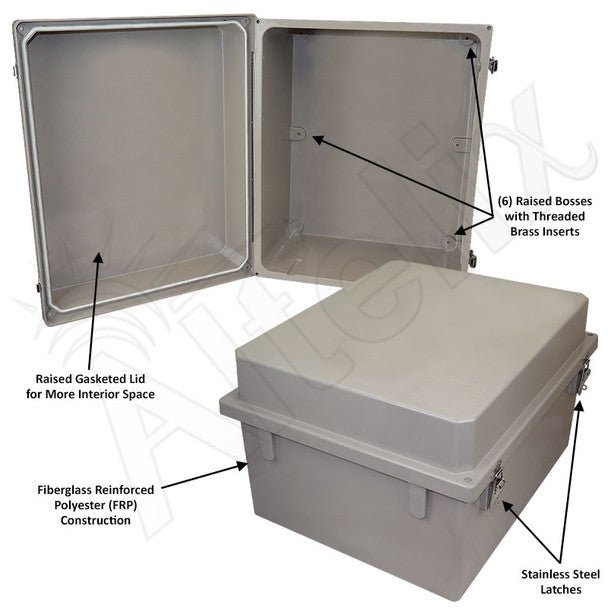

The NF201612 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612 can accommodate a wide range of equipment. Six raised bosses with threaded brass inserts are provided inside the enclosure for mounting equipment plates and equipment brackets.
Mounting

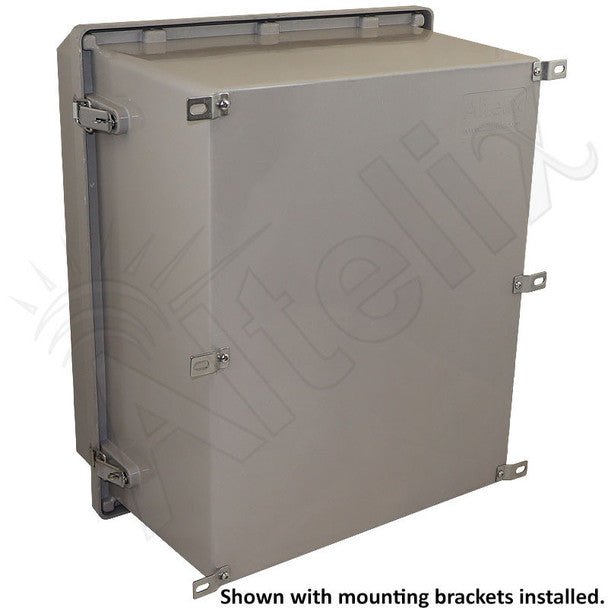

Stainless steel brackets are included for secure wall mounting.
Additional Accessories
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures — $86.99
- Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures — $149.99
No downloads available for this variant.
