Altelix 14x11x7 NEMA 4X Polycarbonate Outdoor Enclosure

• Features Gasketed lid with dual stainless steel latches Raised mounting bosses in base for use with equipment mounting plates and DIN rail kits Durable Polycarbonate + ABS construction Weatherproof and UV Stable Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 Tamper-Proof locking screw with key and provision for padlock Can be mounted using external mounting feet or internal mounting feet RF transparent for wireless devices Multiple size knock-out holes on bottom of enclosure Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware Optional pole mount kits and utility shelf available

  Applications Indoor / Outdoor WiFi access points and routers Multi purpose utility box Home automation WiFi, LoRa and RFID gear Security and surveillance systems LED controllers IoT devices Network switches Telephone Equipment Enclosure Media converters Cable TV and CCTV amplifiers Broadband equipment SCADA remote terminal Outdoor weather protection Protection against theft or damage Warehouses and public areas Concealment of equipment

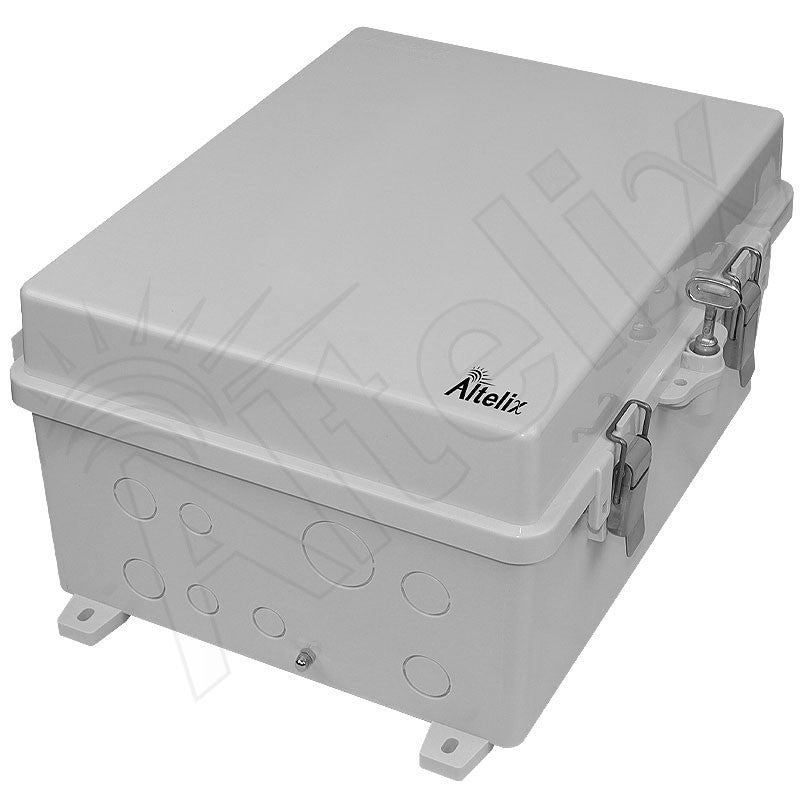

  The Altelix NP141107 NEMA 4X enclosure is ideal for protecting devices from harsh environments and tampering. With the generous size of this enclosure the NP141107 can accommodate a wide range of equipment.

  Equipment Mounting Options

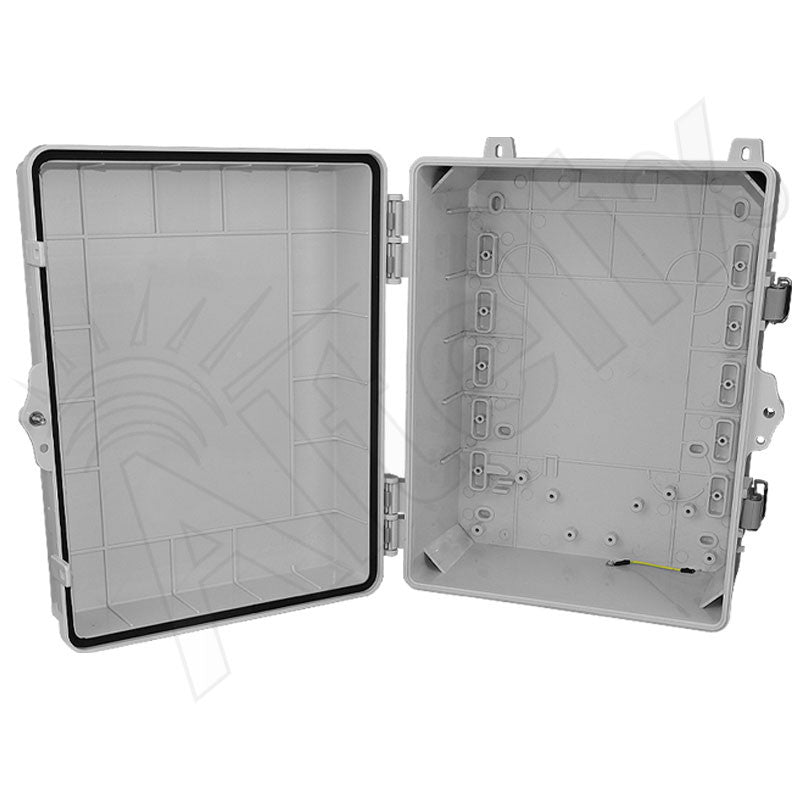

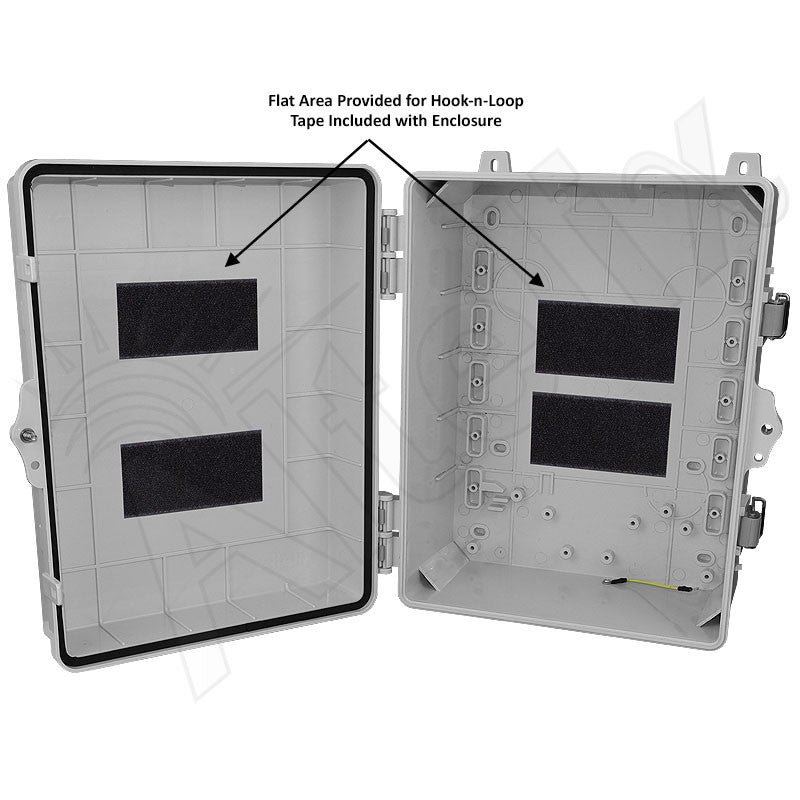

  This enclosure provides multiple ways to install equipment. Raised bosses located in the base of this enclosure can be used to mount an equipment plate. These same bosses can also be used to install Altelix's 35mm Top Hat DIN Rail kits (sold separately). Up to (5) DIN Rail kits can be installed into the enclosure base. This provides greater versatility when mounting equipment inside the enclosure. A large flat section in the base is also provided for use with the hook-n-loop tape included in the accessory kit.

  RF Transparent Design
  The NP141107 is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

  Secure Your Equipment

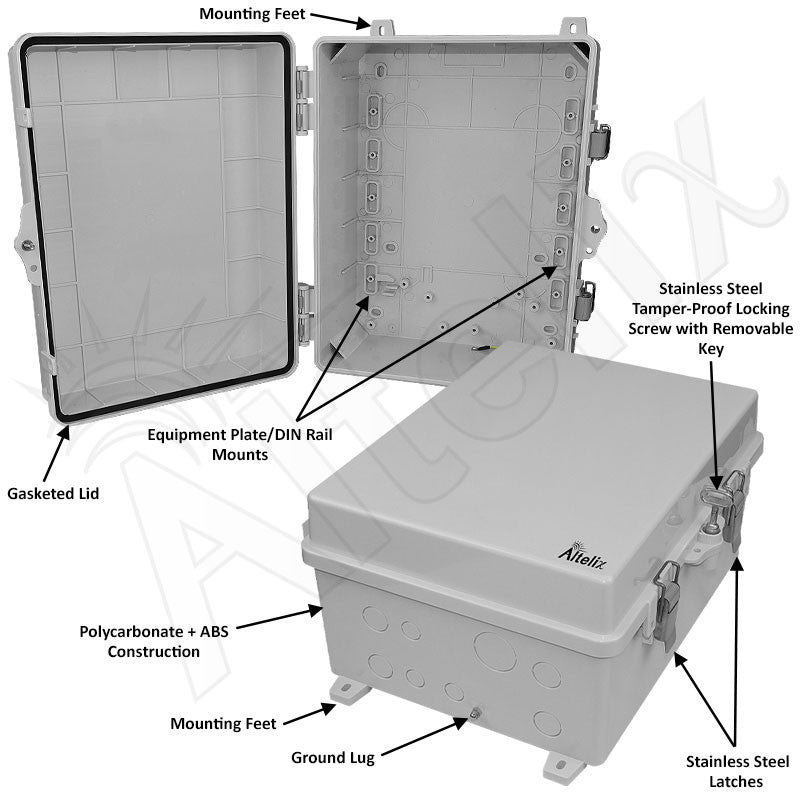

  These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

  Polycarbonate + ABS Protection Built to Last
  Available in either Gray or Black, this enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

  Complete with Cable Grommets and Wire Management Accessories

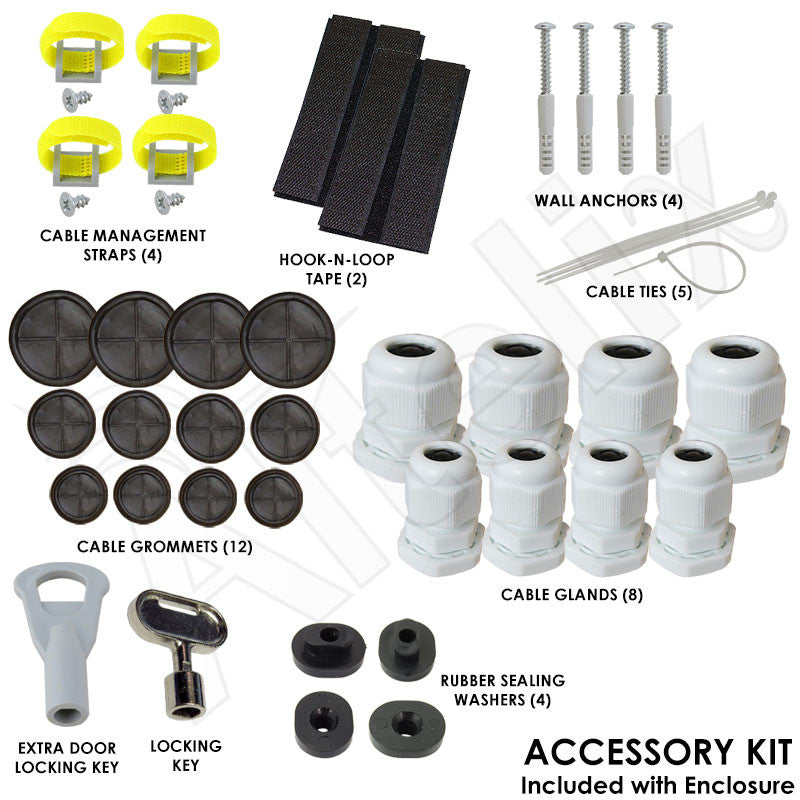

  This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

  Multiple Mounting Options

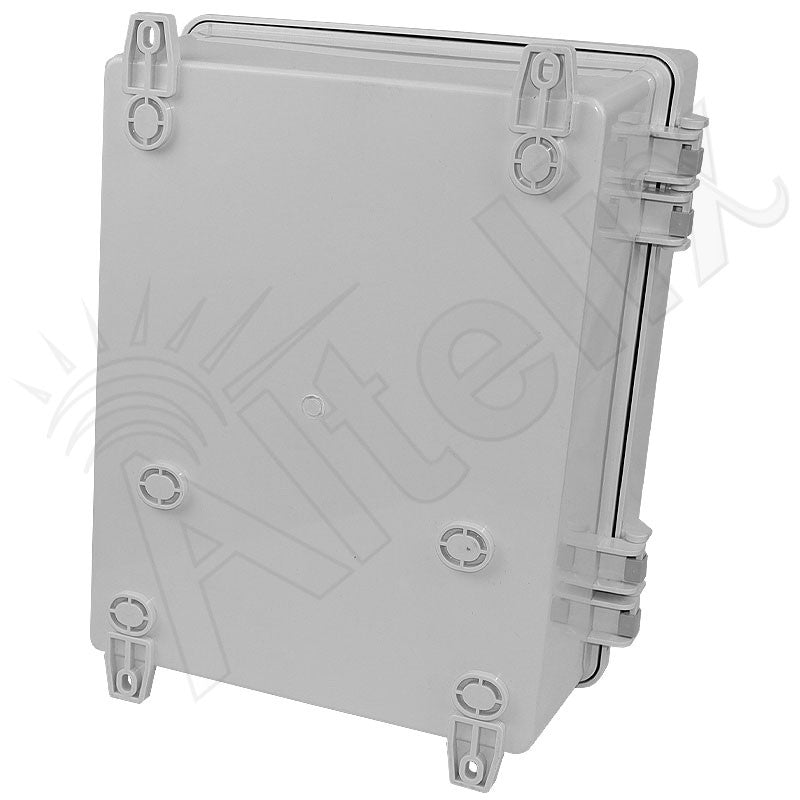

  This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit.





• 1
• 2
• 4
• 4X
• 12
• 13
