Altelix 20x16x12 Fiberglass Weatherproof Vented NEMA Enclosure

• Features (2) 4" Vents with Rain Shields and Screens Water Resistant JIC Enclosure Design with Gasketed Lid Extra Deep Extended Lid for Increased Equipment Clearance NEMA Type 3R, 3RX / IP24 Rated Stainless Steel Hinges with High Quality 316 Steel Hinge Pins Stainless Steel Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Raised Bosses and Threaded Brass Inserts for Plate Mounting Weatherproof, UV Stable and Highly Corrosion Resistant Includes Stainless Steel Mounting Feet RF Transparent Enclosure Available With or Without Cable Glands Installed Pole Mounting Kit Available

  Applications Rapid Deployment Systems Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Solar Equipment Enclosure Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure



  Extreme Protection Built to Last

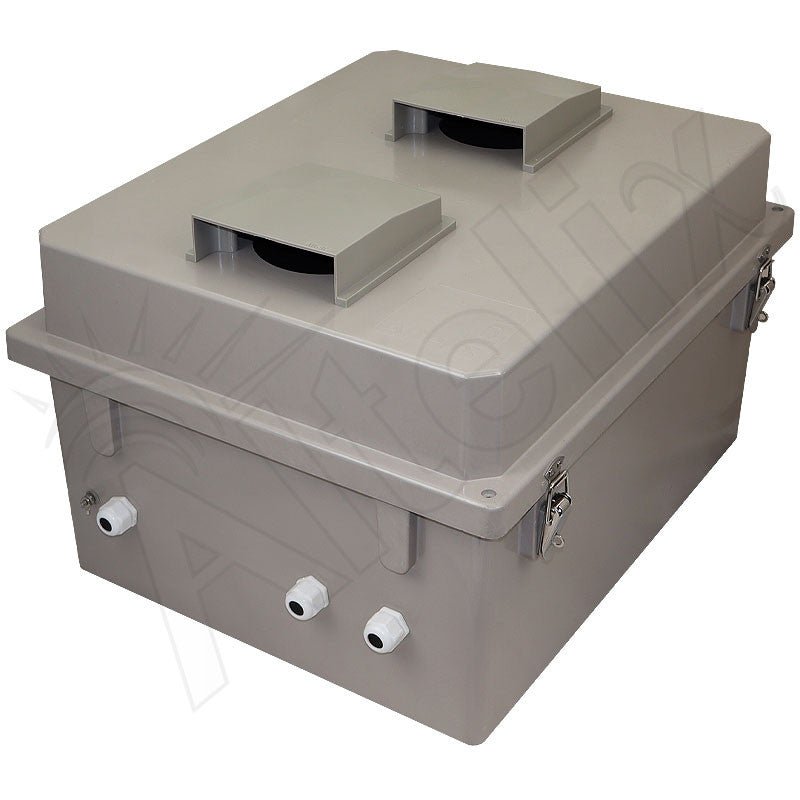

  The Altelix NF201612V Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal environments. The gasketed door includes stainless steel quick release latches with padlock hasps.

  Increased Interior Space

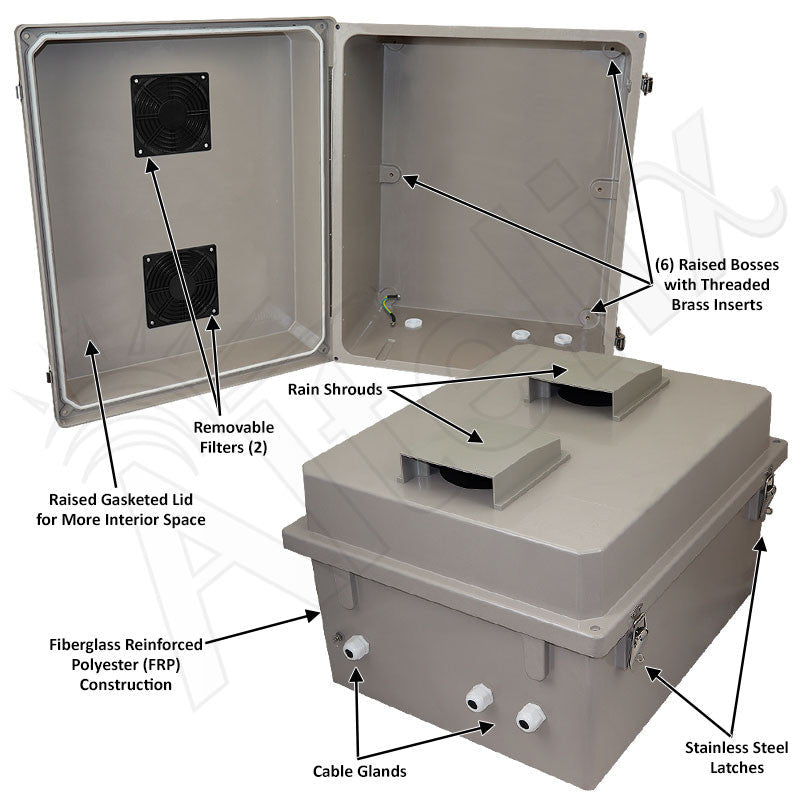

  The NF201612V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612V can accommodate a wide range of equipment. Six raised bosses with threaded brass inserts are provided inside the enclosure for mounting equipment plates and equipment brackets.

  Cable Glands
  The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. This enclosure can also be purchased with no cable gland holes. Is is ideal when the enclosure needs to be modified by the installer to suit unique site requirements.

  Mounting
  Stainless steel brackets are included for secure wall mounting.







• 3R
• 3RX
