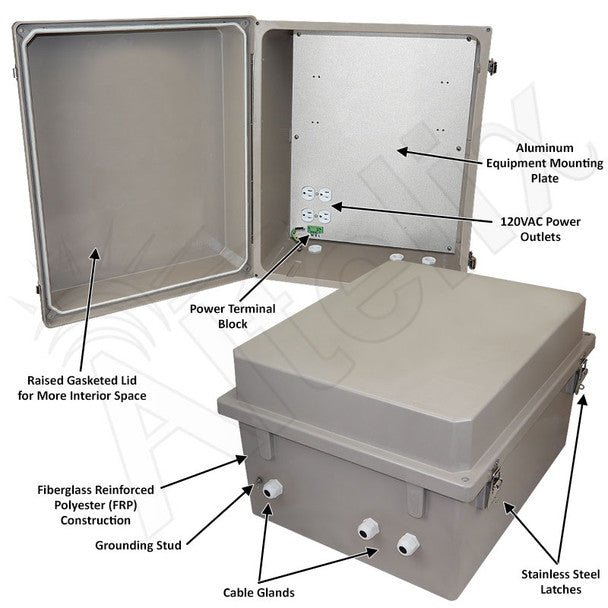

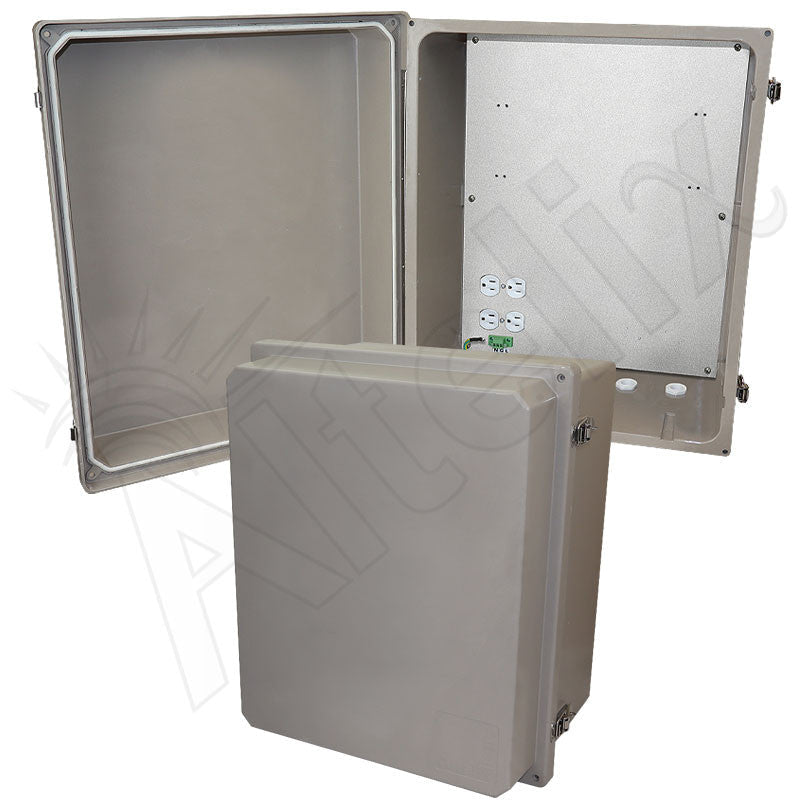

Altelix 20x16x12 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate and 120 VAC Outlets

• Features (4) Pre-Wired 120VAC Outlets Removable 120VAC Power Terminal Block Aluminum Equipment Mounting Plate Extra Deep Extended Lid for Increased Equipment Clearance Stainless Steel Hinges with High Quality 316 Steel Hinge Pins Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes 1/2" Liquid-Tight Fitting, Cable Glands and Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications Rapid Deployment Systems Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure

  Weatherproof Protection and 120VAC Power Outlets

  The Altelix NF201612 Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This NEMA 4X enclosure features four pre-wired 120VAC power outlets and a quick-connect terminal strip for easy wiring by a qualified installer. The finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door features multiple latch options to secure the enclosure.

  Increased Interior Space
  The NF201612 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612 can accommodate a wide range of equipment.

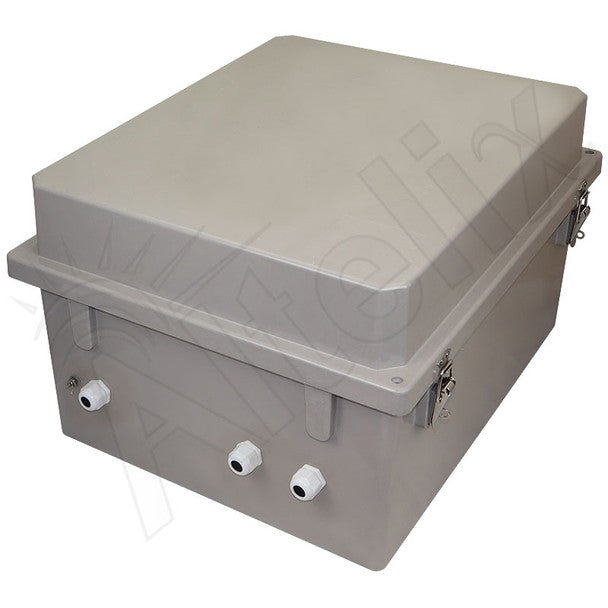

  Cable Glands
  The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. To provide power to the enclosure a 1/2" Liquid-Tight fitting as well as a PG16 Cable Gland are included.

  Removable Terminal Block
  This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

  Mounting
  Stainless steel brackets are included for secure wall mounting.





• 4
• 4X
• 1
• 2
• 12
• 13
