Altelix 20x16x12 NEMA 4X Steel Weatherproof Enclosure with 120 VAC Outlets and Power Cord

In stock
SKU: NS201612A1C
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
$459.99

Specifications

Product Type Enclosures
Application Outdoor
IP Equivalent IP66
Height 20
Width 16
Depth 12
Inner Dimensions 15.7 x 12.0 x 10.2 Inches
Cover Type Hinged Cover
Latch Type Quarter-Turn
Mount Type Wall Mount
Mounting Plate Included Yes
Mounting Plate Dimensions 18.3 x 13.8
Power Options 120VAC
Power Cord Length 5 Feet
  • Description

  • The Altelix NS201612A1C Steel NEMA 4X Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

    Construction and Features
    This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.

    Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

    Bonus Aluminum Bottle Opener Key
    This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

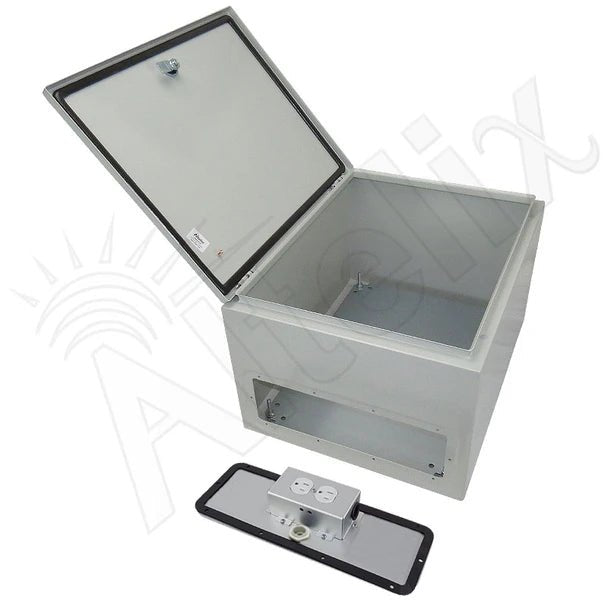

    Removable Power Module
    The NS201612A1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.

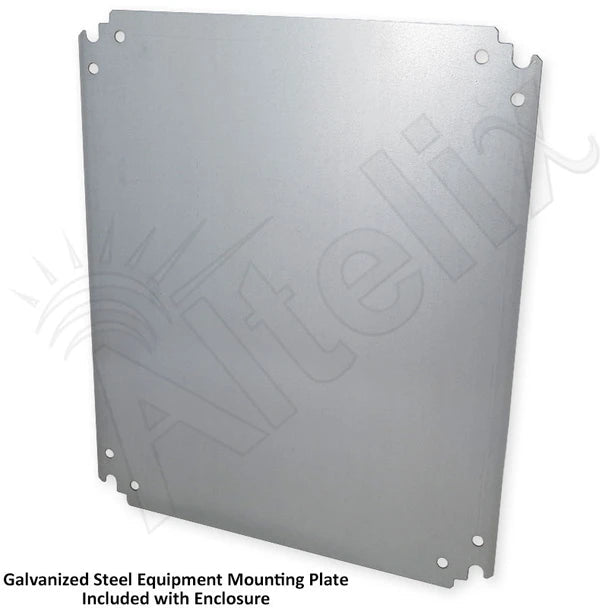

    Galvanized Steel Equipment Plate
    This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

    Mounting
    Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-400-08) and stainless steel (model NMKX-400-08).

    Optional Lockable Latches
    For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Additional Accessories
  • 4
  • 4X
