Altelix 20x16x12 Fiberglass Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord

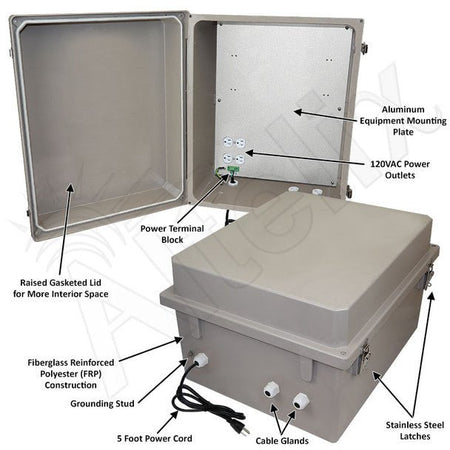

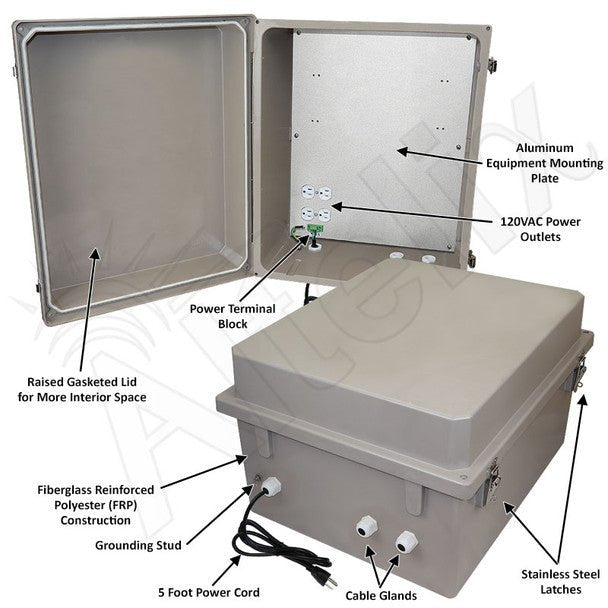

• Features No Electrical Wiring Required Pre-wired 5 foot 3-Prong Power Cord (4) Pre-Wired 120VAC Outlets Aluminum Equipment Mounting Plate Extra Deep Extended Lid for Increased Equipment Clearance Stainless Steel Hinges with High Quality 316 Steel Hinge Pins Stainless Steel Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes Cable Glands and Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications Rapid Deployment Systems Harsh Environments WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure

  Plug and Play Power for Rapid Deployment

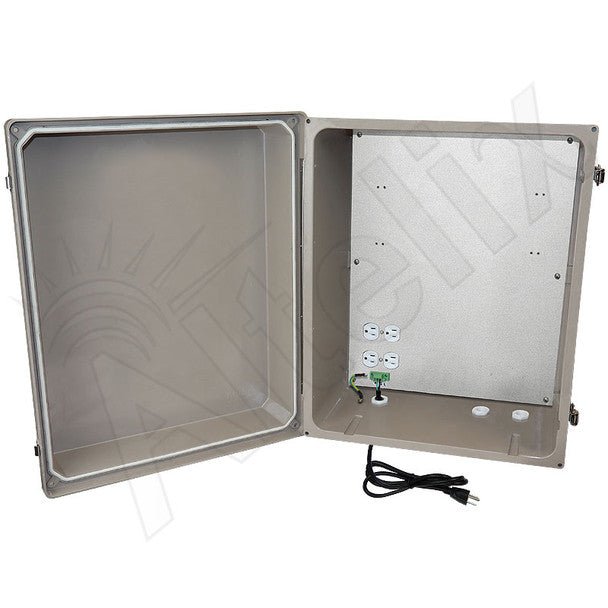

  The Altelix NF201612 Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This NEMA 4X enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Four pre-wired 120VAC power outlets inside the enclosure provide power to your equipment. The finished aluminum equipment mounting plate can be easily drilled by the installer for unique application requirements.

  Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

  Increased Interior Space
  The NF201612 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612 can accommodate a wide range of equipment.

  Cable Glands
  The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Stainless steel brackets are included for secure wall mounting.

• 4
• 4X
• 1
• 2
• 12
• 13
