Altelix 20x16x8 NEMA 3X Fiberglass Weatherproof Enclosure with Blank Steel Equipment Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65 |
| Height | 20 |
| Width | 16 |
| Depth | 8 |
| Inner Dimensions | 16.2 x 14.2 x 6.0 Inches |
| Cover Type | Hinged Cover, Opaque, Gasketed Cover |
| Latch Type | Quarter-Turn |
| Mount Type | Wall Mount |
| Mounting Plate Material | Galvanized Steel |
| Mounting Plate Dimensions | 13.7 x 17.9 In. |
-
Features - Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
- Includes Blank Galvanized Steel Equipment Mounting Plate
- Dual Quarter-Turn Door Latches
- Bonus Aluminum Bottle Opener Key Now Included!
- (4) Mounting Feet Included
- NEMA Type 3, 3X / IP65 Rated
- Optional Lockable Latch Sets Available
Applications - Indoor / Outdoor WiFi Equipment
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Concealment of Electronic Equipment

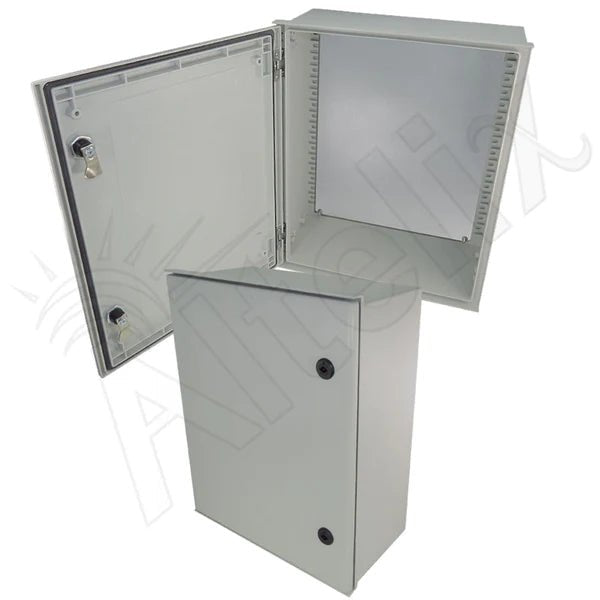

The Altelix NFC201608P NEMA 3X Weatherproof Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

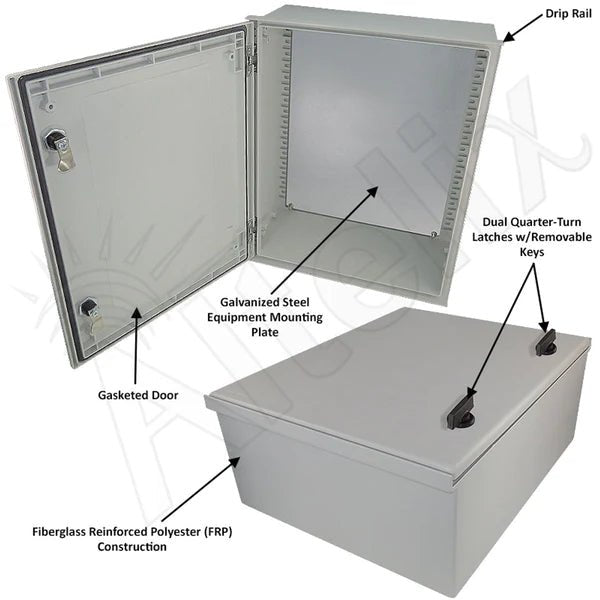

Construction and Features
This rugged IP65 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Galvanized Steel Equipment Plate
This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 16 Gauge (1.5mm thick) galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.
Additional Accessories
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures — $86.99
- Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures — $149.99
- Altelix Trapped Key Interlock Type Lock Set with Key for NFC Series Enclosures — $11.99
- Altelix Door Latch Key for NFC/NFE Enclosures — $3.99
- Altelix Keyed Lock Set with Keys for NS/NFC Series Enclosures — $11.99
- Altelix Handle Padlockable Latch for NS/NFC Series Enclosures — $24.99
- Altelix Aluminum Door Latch Key for NFC, NS and NX Series Enclosures — $11.99
- Altelix Universal Mounting System — $46.99
- Altelix Inner Door / Dead Panel for NFC201608 Enclosures — $61.99
