Altelix 20x16x8 Vented Fiberglass Heated Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord, 200W Heater & Dual 85°F Turn-On Cooling Fans

• Features Dual 4" Vents with Rain Shields Dual Thermostat Controlled Cooling Fans Thermostat Controlled 200W Heating System Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction Includes Aluminum Equipment Mounting Plate 120VAC Outlets Pre-wired 5 foot power cord Dual Quarter-Turn Door Latches Bonus Aluminum Bottle Opener Key Now Included! (4) Mounting Feet Included NEMA Type 3R, 3RX / IP24 Rated Optional Lockable Latch Sets Available

  Applications Outdoor WiFi Installations SCADA, Remote Terminal Unit Security and Video Surveillance NVR Systems Protection of Equipment from Theft or Damage Concealment of Equipment Tunnel and Mining Installations Railroad Facilities Mills & Refineries Cement and Chemical Plants Food Processing Facilities Warehouses and Loading Docks Marinas and Marine Terminals Golf Courses, Resort Properties and Recreational Areas Building Maintenance Areas Building Rooftop or Basement Parking Lots and Garages Weather Stations

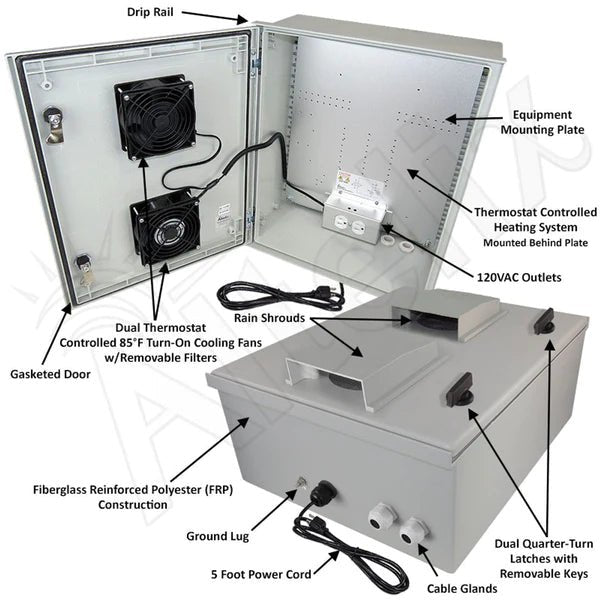

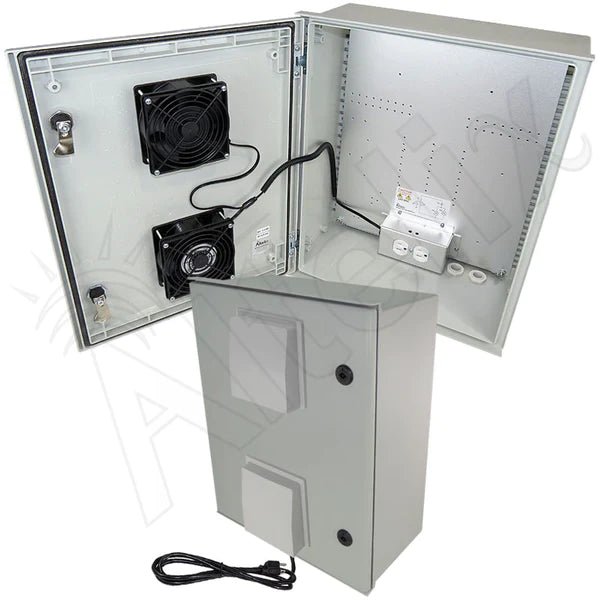

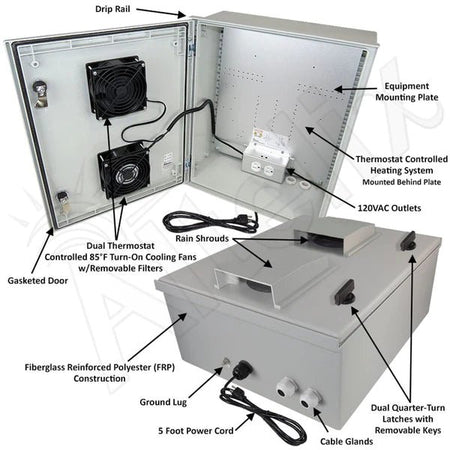

  The Altelix NFC201608VFHA1C Heated and Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

  Construction and Features
  This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

  Power
  This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC power outlets.

  Plug and Play
  The NFC201608VFHA1C features a 5 foot pre-wired power cord to provide power to the internal 120VAC outlets, so no additional wiring is required. Simply mount the enclosure then plug the power cord into a 120VAC outlet.

  Equipment Mounting Plate
  The aluminum equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

  200W Heating System
  Ideal for cold environments, this model features a 200W thermostat controlled heater. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets. An insulated extreme cold weather model is also available.

  Dual Cooling Fans Ventilation
  This enclosure also features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning. For applications which require the cooling fan to turn on at a lower temperature, this enclosure is also available with a 85°F (30°C) turn-on thermostat. With this option the fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C).

  Cable Glands
  The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure.

• 3R
• 3RX
