Altelix 24x16x12 NEMA 4X Steel Weatherproof Enclosure with 120 VAC Outlets and Power Cord
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Height | 24 |
| Width | 16 |
| Depth | 12 |
- Description
-

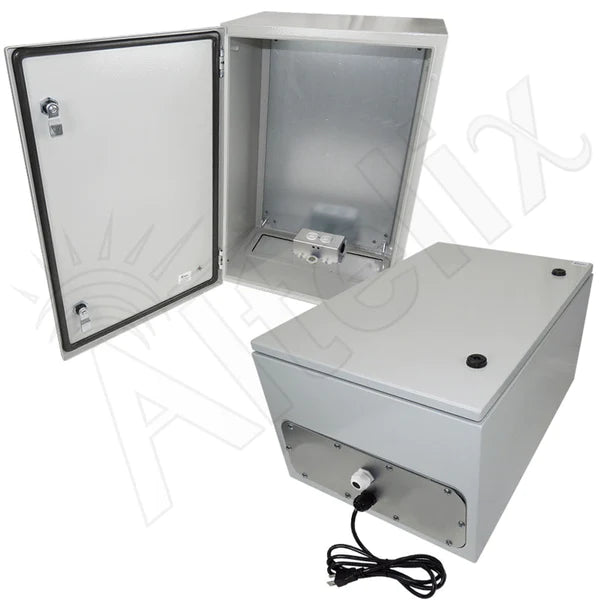

The Altelix NS241612A1C NEMA 4X Steel Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features

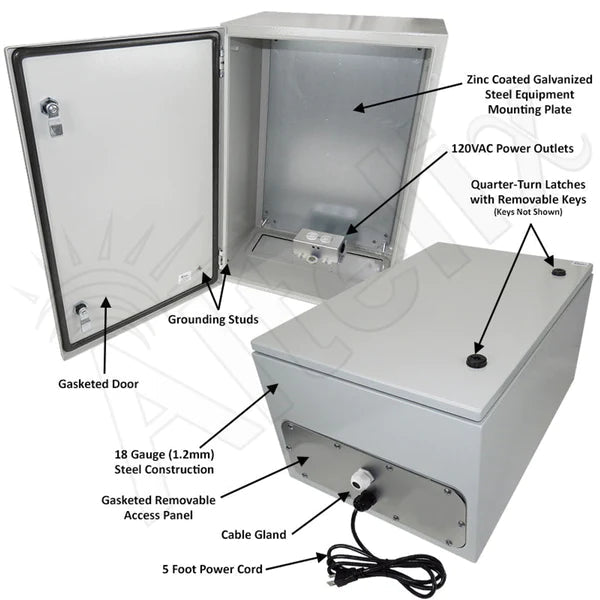

This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power Module

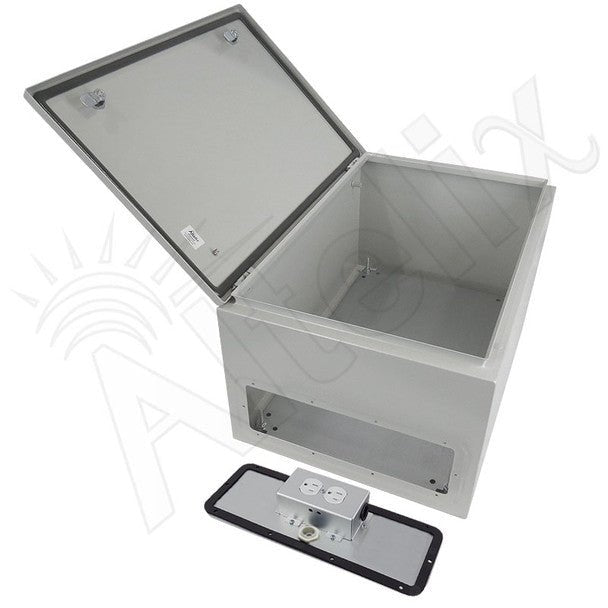

The NS241612A1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.
Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Gland
The enclosure features a unique PG-16 cable gland with a closed inner seal. It is installed in the open port to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure.This item is a Special Order Product which is Non-Returnable.
Additional Accessories
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures — $86.99
- Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures — $149.99
- Altelix Keyed Lock Set with Keys for NS/NFC Series Enclosures — $11.99
- Altelix Replacement Latch for NS/NX Series Steel Enclosures — $11.99
- Altelix Handle Padlockable Latch for NS/NFC Series Enclosures — $24.99
- Altelix Aluminum Door Latch Key for NFC, NS and NX Series Enclosures — $11.99
- Altelix Blank Aluminum Access Panel for NS161608, NX161608, NS201612, NX201612 and NS241612 Enclosures — $21.99
- Altelix Vented Aluminum Access Panel for NS161608, NX161608, NS201612, NX201612 and NS241612 Enclosures — $34.99
