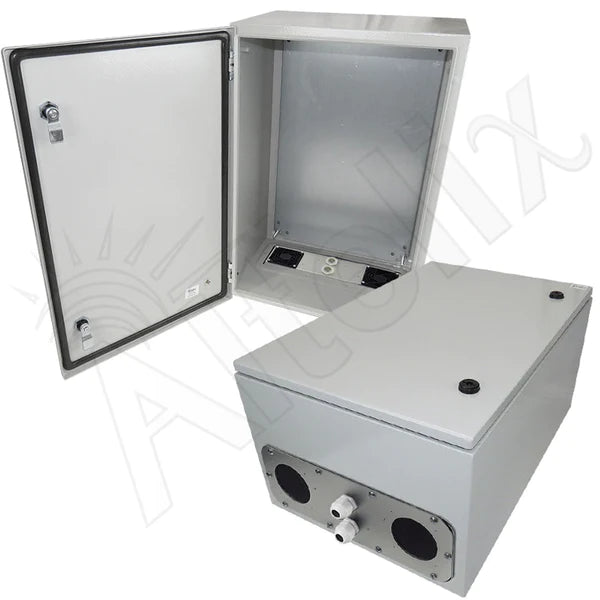

Altelix 24x16x12 Vented Steel Weatherproof NEMA Enclosure with Steel Equipment Mounting Plate
Couldn't load pickup availability
Specifications
Product Type | Enclosures |
---|---|
Material | Painted Steel |
Application | Indoor, Outdoor |
IP Equivalent | IP24 |
Height | 24 |
Width | 16 |
Depth | 12 |
Inner Dimensions | 19.9 x 12.0 x 10.2 Inches |
Cover Type | Hinged Cover |
Latch Type | Quarter-Turn |
Mount Type | Wall Mount |
Mounting Plate Included | Yes |
Mounting Plate Material | Mild Steel |
Mounting Plate Dimensions | 22.2 x 13.8 In. |
Cooling & Heating | Vents Only |
-
Features
Dual 3" vents to help expel heat
Removable Access Panel with Cable Glands
Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
Dual quarter-turn door latches with keys
Bonus Aluminum Bottle Opener Key Now Included!
Epoxy polyester textured light gray powder coat finish
NEMA Type 3R, 3RX / IP24 Rated -
Applications
Indoor / Outdoor Electrical and Electronic Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage
Agriculture Processing Facilities
Mining Operations and Refineries
Marine Applications
The Altelix NS241612VP Vented Steel Weatherproof NEMA Enclosure with with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features

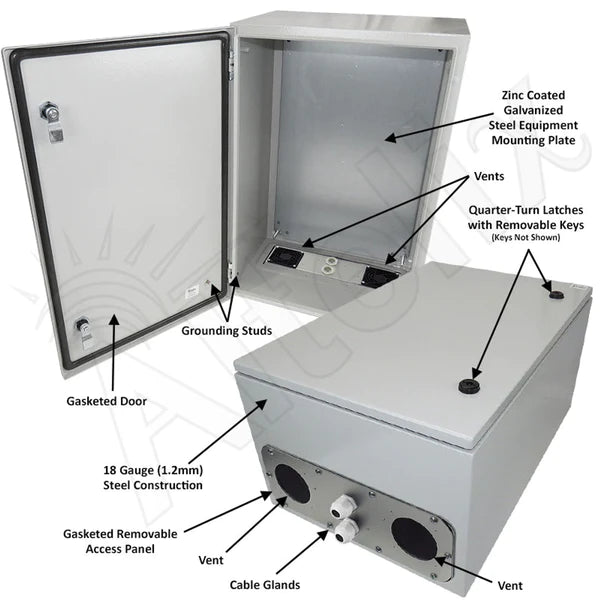

This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!Removable Access Panel with Ventilation

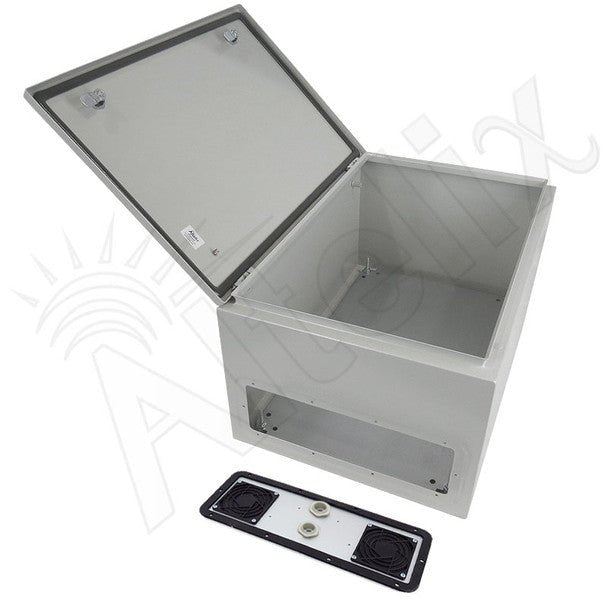

The NS241612VP features a removable access panel that attaches to the bottom of the enclosure. Constructed of rugged aluminum it features two 3" vents to help expel heat from within the enclosure. Weatherproof cable glands are provide on the panel for cable entry into the enclosure.Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure.
This item is a Special Order Product which is Non-Returnable.
