Altelix 24x24x12 NEMA 4X Steel Weatherproof Enclosure with Steel Equipment Mounting Plate
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$409.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Application | Outdoor |
| IP Equivalent | IP66 |
| Height | 24 |
| Width | 24 |
| Depth | 12 |
| Inner Dimensions | 20.0 x 20.0 x 10.3 Inches |
| Cover Type | Hinged Cover |
| Latch Type | Quarter-Turn |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Dimensions | 22.2 x 21.6 |
-

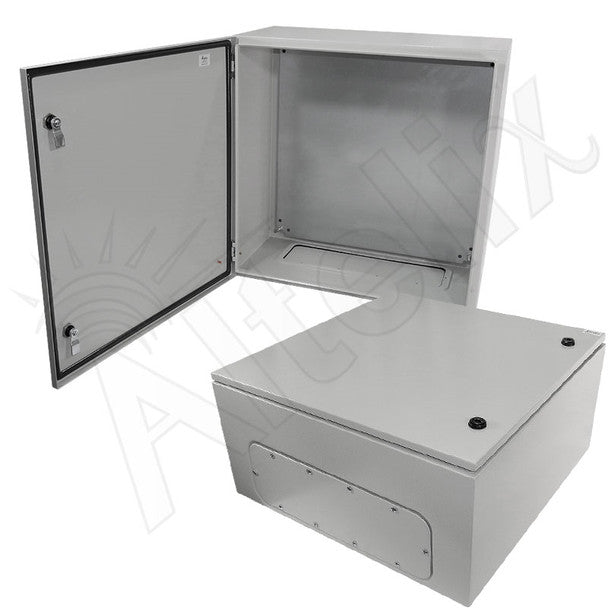

The Altelix NS242412P Steel NEMA 4X Weatherproof Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering.
Construction and Features

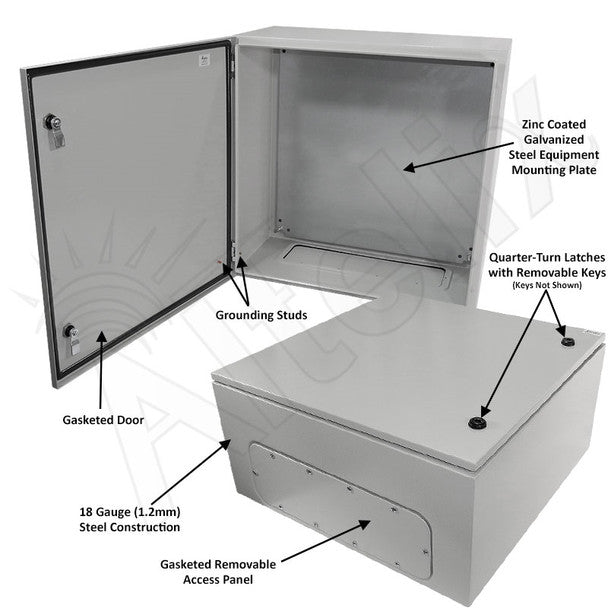

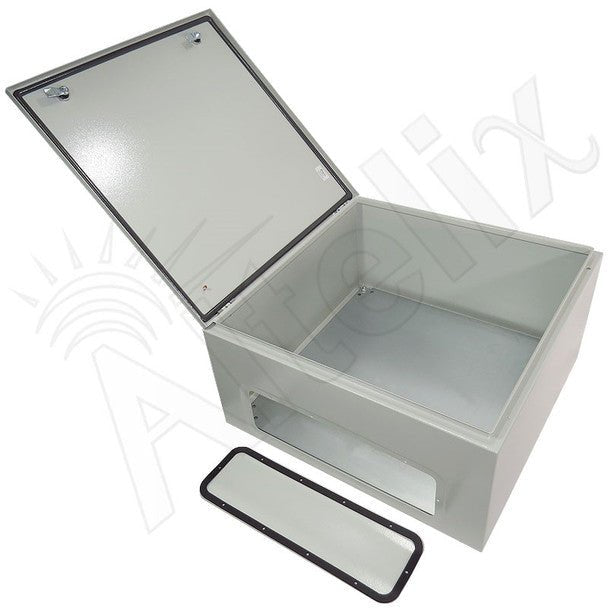

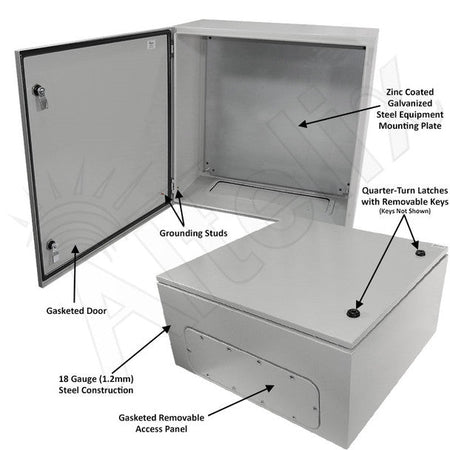

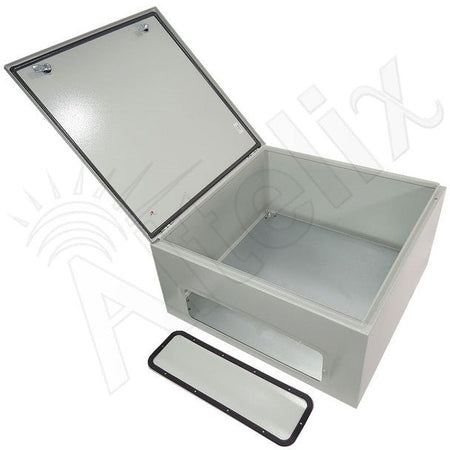

This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure. A removable access panel is provided and is fully gasketed to ensure proper seal.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. -
This item is a Special Order Product which is Non-Returnable.
Additional Accessories
- Altelix Keyed Lock Set with Keys for NS/NFC Series Enclosures — $11.99
- Altelix Replacement Latch for NS/NX Series Steel Enclosures — $11.99
- Altelix Handle Padlockable Latch for NS/NFC Series Enclosures — $24.99
- Altelix Aluminum Door Latch Key for NFC, NS and NX Series Enclosures — $11.99
- Altelix Blank Aluminum Access Panel for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosures — $24.99
- Altelix Vented Aluminum Access Panel for NS242012, NS242412, NX242416, NS242416, NS242424, NS282416 and NS322416 Enclosures — $36.99
- Altelix Power Module with 120VAC Outlets for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosures — $149.99
- Altelix Power Module with 120VAC Outlets and Cooling Fan for NS242012, NS242412, NX242416, NS242416, NS242424, NS282416 and NS322416 Enclosures — $224.99
- Altelix Vented Power Module with 120VAC Outlets for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosures — $184.99
No downloads available for this variant.
