Altelix 24x24x16 Steel Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fans
Altelix 24x24x16 Steel Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fans Altelix 24x24x16 Steel Weatherproof NEMA Enclosure with 120 VAC Outlets, Power Cord & 85°F Turn-On Cooling Fans
$799.99
Product Information
Part Number: NS242416VFA1C-85
Inventory: Typically Ships 2-4 Business Days
  • Description

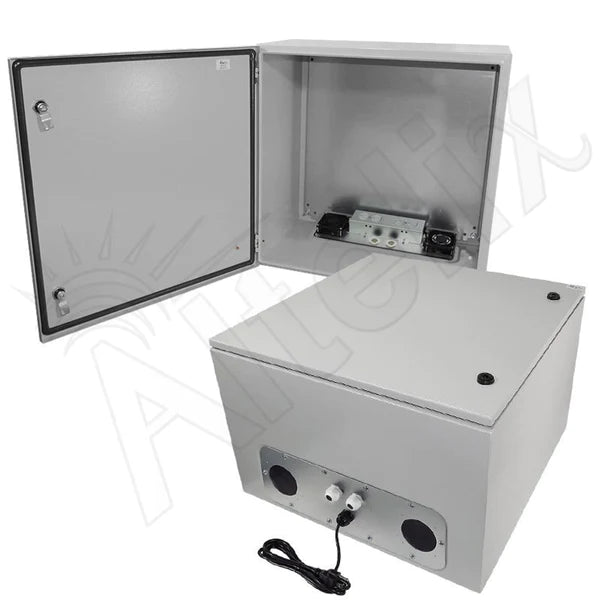

  • The Altelix NS242416VFA1C-85 Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

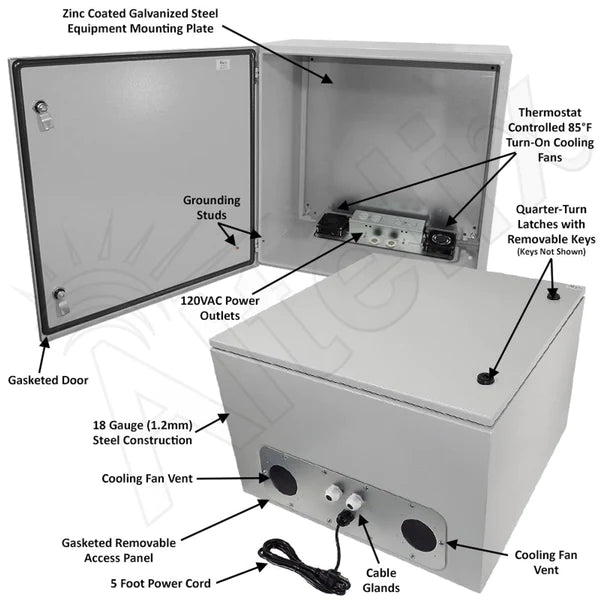

    Construction and Features
    This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door enclosure.

    Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

    Bonus Aluminum Bottle Opener Key
    This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

    Removable Power and Fan Module
    The NS242416VFA1C-85 features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

    85°F Turn-On Cooling Fans
    The NS242416VFA1C-85 is designed for applications which require the cooling fans to turn on at a lower temperature then our standard fan cooled enclosures. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

    Galvanized Steel Equipment Plate
    This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

    Cable Glands
    The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

    Mounting
    Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

    Optional Lockable Latches
    For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
