Altelix 32x24x12 Vented Insulated Fiberglass Heated Weatherproof NEMA Enclosure with Dual Cooling Fans, 400W Heater and 120 VAC OutletsAltelix
Note: THIS IS A SPECIAL ORDER ITEM.

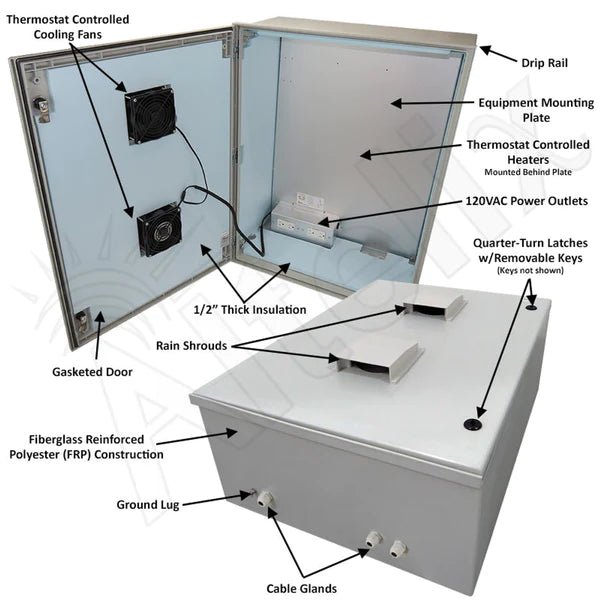

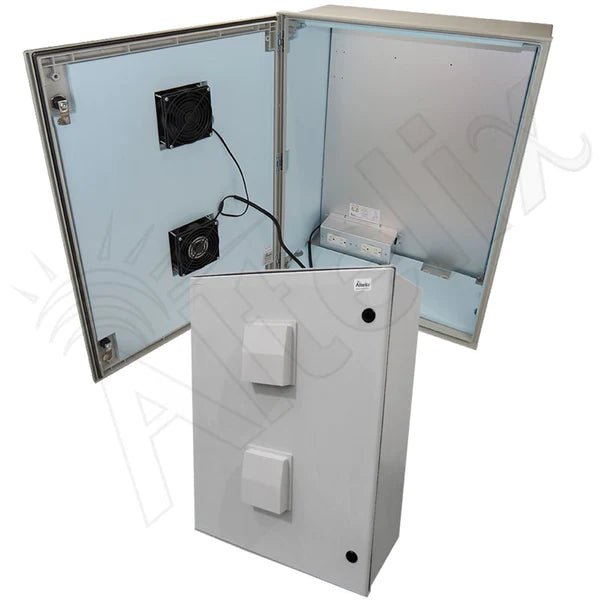

The Altelix NFC322412VFHA1-Z Insulated Heated and Fan Cooled Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features
This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired duplex 120VAC power outlets (4 outlets total). The outlet box is easily removable to facilitate wiring to an external power source.
400W Heating System
Ideal for cold environments, this model also features four 200W (400W total) thermostat controlled heaters. The heaters turn on when the internal temperature reaches 43°F (6°C) and turn off when it rises to 59°F (15°C). Both heaters are situated below the mounting plate and wired internally so they do not interfere with user installed equipment or require the use of the AC outlets. An insulated extreme cold weather model is also available.
Dual Cooling Fans Ventilation
This enclosure features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning.
Designed for extreme cold and hot environments, the NFC322412VFHA1-Z features 0.500 inch (12.7mm) thick insulation bonded to all interior sides of the enclosure.
Aluminum Equipment Plate
This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 0.11 inch (3.0 mm) thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).
Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
