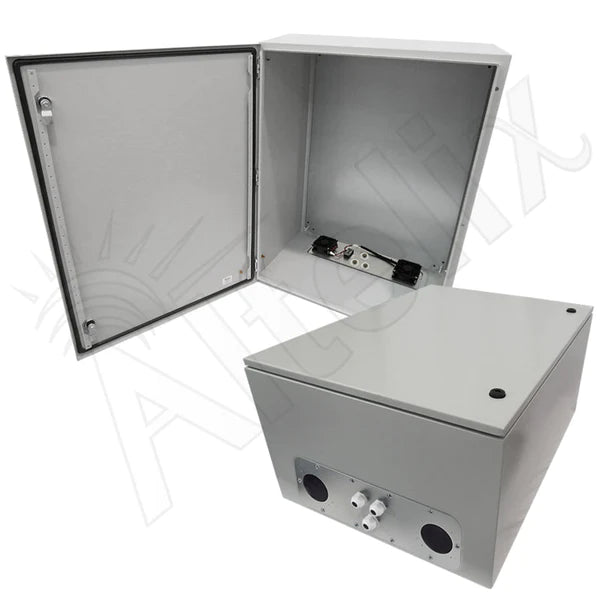

Altelix 32x24x16 Steel Weatherproof NEMA Enclosure with Dual 24 VDC Cooling Fans

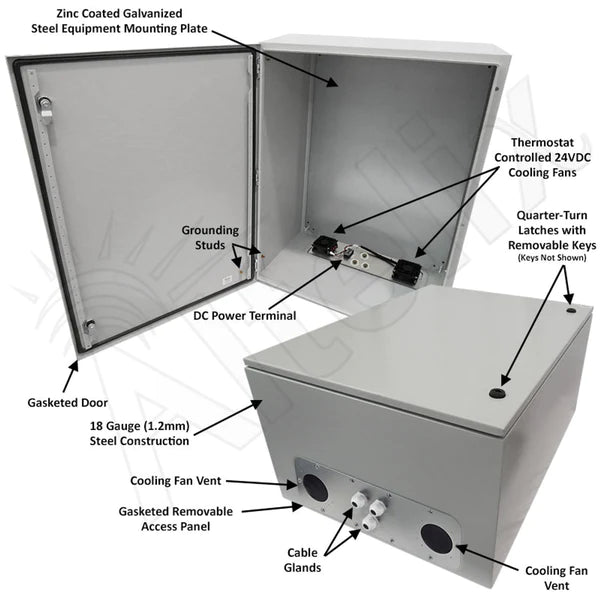

• Features Dual 24VDC Thermostat Controlled Cooling Fans DC Power Terminal Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate Dual quarter-turn door latches with key Bonus Aluminum Bottle Opener Key Now Included! Epoxy polyester textured light gray powder coat finish NEMA Type 3R, 3RX / IP24 Rated

  Applications Rapid Deployment Systems Solar Equipment Vehicle Mounted Equipment Battery Powered Equipment Battery and Charger Box Harsh Environments IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Outdoor use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment Building Automation Controls Industrial Controls Enclosure



  24 VDC Powered Fan Cooled NEMA Enclosure

  The Altelix NS322416VFD2 features two 3" vents and dual 24VDC thermostat controlled cooling fans which help maintain lower internal temperatures. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C).

  This enclosure can be powered from 24VDC solar and battery power sources, and features a terminal strip for easy wiring.

  Construction and Features
  This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.

  Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

  Bonus Aluminum Bottle Opener Key
  This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. This heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

  Removable Power and Fan Module
  The NS322416VFD2 features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features the two 24VDC cooling fans and the DC power terminal strip.

  Galvanized Steel Equipment Plate
  This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

  Mounting
  Mounting holes are provided inside the enclosure for mounting to a wall or other structure.

This item is a Special Order Product which is Non-Returnable.

• 3R
• 3RX
