Hammond CSG Type 1 Galvanized Screw Cover Junction Boxes
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Unpainted Galvanized Steel |
| Series | Hammond CSG Series |
| Application | Indoor, Wall Mountable, Junction Box |
| IP Equivalent | IP20 |
| Height | 6 |
| Width | 6 |
| Depth | 4 |
| Cover Type | Screw Cover |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
Hammond CSG unpainted galvanized steel junction boxes protect indoor wiring connections, pull points and switch installations. The removable screw cover has keyhole slots for access without fully removing the screws. Boxes are supplied without knockouts.
- NEMA Type 1 and IP20; UL 50 Type 1 and CSA Type 1.
- G90 galvanized steel body and cover, supplied unpainted.
- Spot-welded construction with rear wall-mounting holes and an embossed grounding location.
Select height, width and depth in inches. The standard screw cover is included. Optional CSPP panels have an ANSI 61 gray painted finish; compatible panels and galvanized extender rings are listed under Accessories for the selected size. Accessories are sold separately.
Also available: CSG12106 (12 × 10 × 6 inches), CSG12124 (12 × 12 × 4 inches).

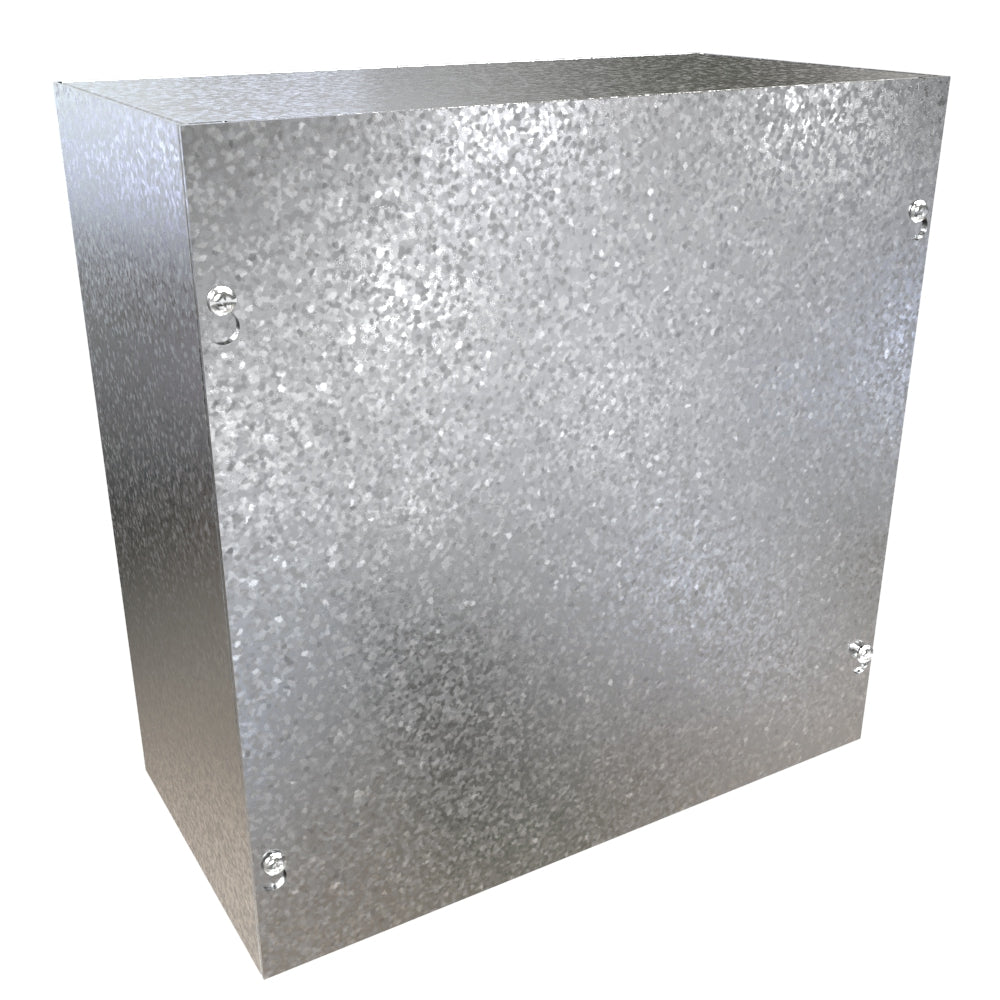

Series image shown. Part-specific drawings and CAD files are under Downloads.
