Hammond CSKOG Type 1 Galvanized Screw Cover Junction Box with Knockouts
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Unpainted Galvanized Steel |
| Series | Hammond CSKOG Series |
| Application | Indoor, Wall Mountable, Junction Box |
| IP Equivalent | IP20 |
| Height | 6 |
| Width | 6 |
| Depth | 4 |
| Cover Type | Screw Cover |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
Hammond CSKOG galvanized junction boxes protect indoor wiring connections, pull points and switch installations. The removable screw cover has keyhole slots for access without fully removing the screws, and knockouts are provided on all four sides.
- NEMA Type 1 and IP20; UL 50 Type 1 and CSA Type 1.
- 16-gauge G90 galvanized steel enclosure and cover, supplied unpainted.
- Spot-welded construction with rear wall-mounting holes and an embossed grounding location.
Select height, width and depth in inches. The standard screw cover is included. Optional mounting panels and galvanized extender rings are sold separately. Compatible accessories for the selected size are listed under Accessories. The optional CSPP mounting panels are painted ANSI 61 gray.
Also available: 12 × 12 × 4 inch CSKOG12124.

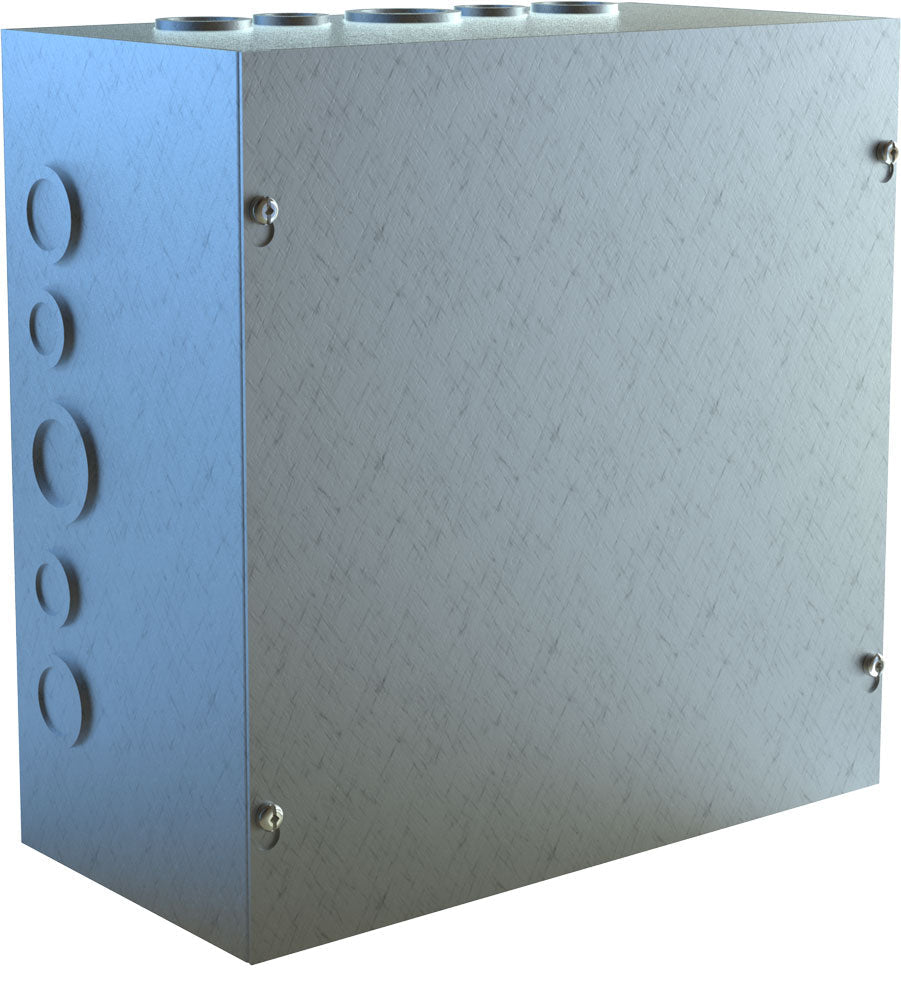

Series image shown. Drawings, CAD files and specifications are under Downloads for the selected part.
