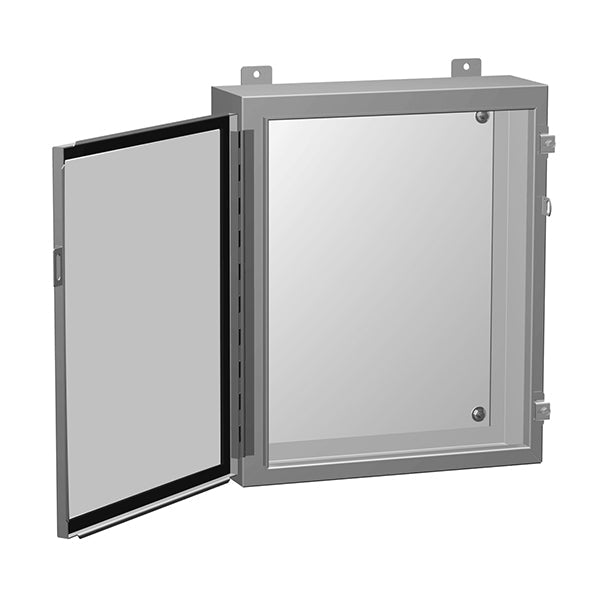

1418 N4 Series Hammond MFG Painted Steel Enclosures
1418 N4 Series Hammond MFG Painted Steel Enclosures 1418 N4 Series Hammond MFG Painted Steel Enclosures Specs
$314.44 $362.62
Product Information
Part Number: 1418N4B6
  • Description
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

    Standards

    • UL 508A Type 3R,12, 4
    • CSA Type 3R, 12, 4
    • NEMA Type 3R, 4, 12 and 13
    • NEMA 4 Mild Steel Wallmount Enclosure
    • IEC 60529, IP66
  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number

    16x12x6 in. 1418N4B6
    16x16x6 in. 1418N4G6
    16x20x6 in 1418N4CR6
    20x16x6 in. 1418N4C6
    20x20x6 in. 1418N4D6
    24x12x6 in. 1418N4AR6
    24x16x6 in. 1418N4H6
    24x20x6 in. 1418N4E6
    24x24x6 in. 1418N4J6
    30x20x6 in. 1418N4F6
    30x24x6 in. 1418N4K6
    36x24x6 in. 1418N4L6
    16x12x8 in. 1418N4B8
    20x16x8 in. 1418N4C8
    20x20x8 in. 1418N4D8
    20x24x8 in. 1418N4ER8
    24x20x8 in. 1418N4E8
    24x24x8 in. 1418N4J8
    24x30x8 in. 1418N4KR8
    30x20x8 in. 1418N4F8
    30x24x8 in. 1418N4K8
    30x30x8 in. 1418N4KK8
    36x24x8  in. 1418N4L8
    36x30x8 in. 1418N4M8
    42x30x8 in. 1418N4O8
    42x36x8 in. 1418N4P8
    48x36x8 in. 1418N4S8
    60x36x8  in. 1418N4T8
    20x16x10 in. 1418N4C10
    24x20x10 in. 1418N4E10
    30x24x10 in. 1418N4K10
    36x30x10 in. 1418N4M10
    48x30x10 in. 1418N4R10
    48x36x10 in. 1418N4S10
    60x36x10 in. 1418N4T10
    24x20x12  in. 1418N4E12
    30x24x12 in. 1418N4K12
    36x24x12 in. 1418N4L12
    36x30x12 in. 1418N4M12
    42x36x12 in. 1418N4P12
    48x36x12 in. 1418N4S12
    30x24x16 in. 1418N4K16
    36x30x16 in. 1418N4M16
    48x36x16 in. 1418N4S16
    60x36x16 in. 1418N4T16
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
