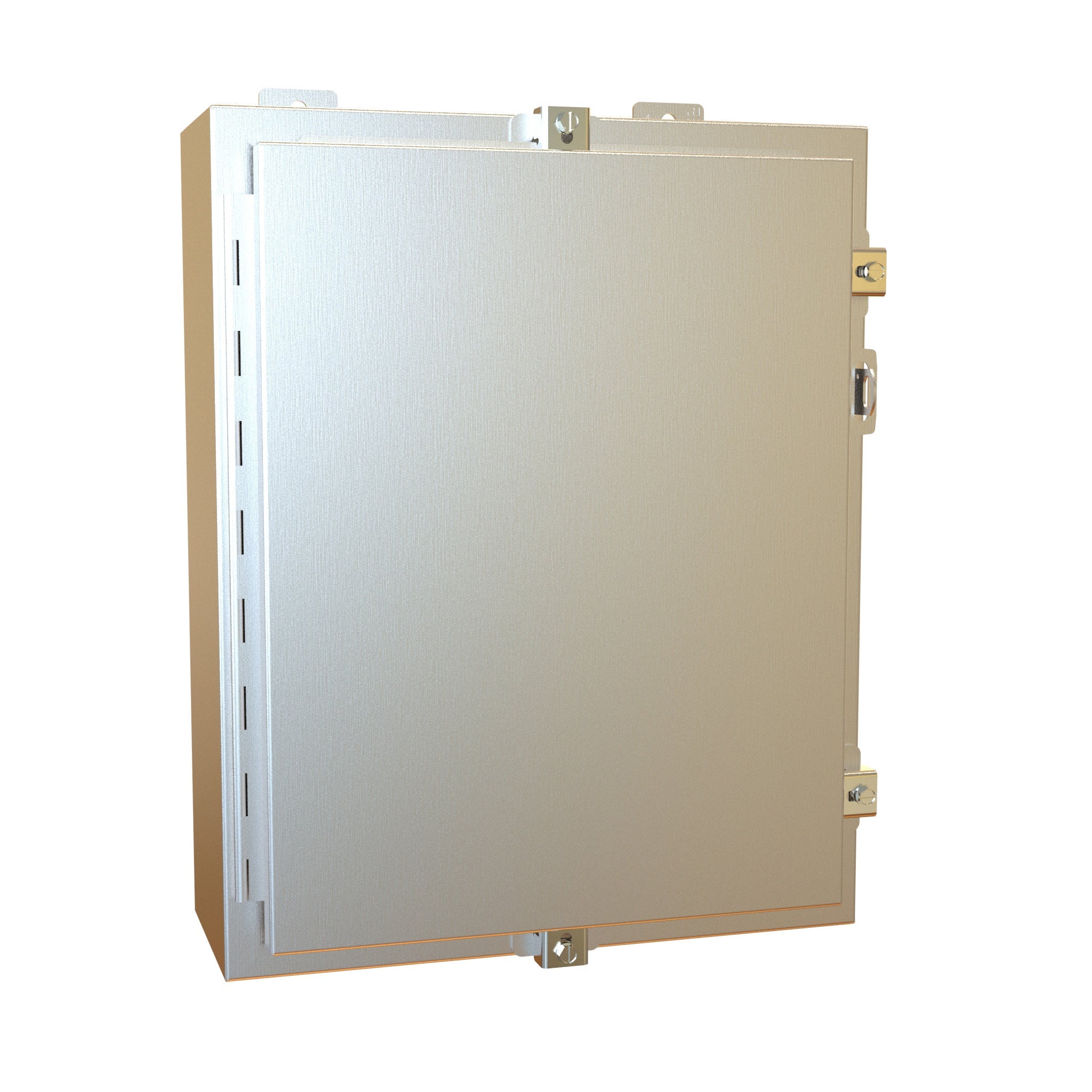

1418 N4 SS Series Hammond MFG Stainless Steel Enclosure
1418 N4 SS Series Hammond MFG Stainless Steel Enclosure 1418 N4 SS Series Hammond MFG Stainless Steel Enclosure Specs
$557.24 $615.01
Product Information
Part Number: 1418N4SSB6
  • Description
  • Specifications
  • NEMA Ratings
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.

    Standards

    • UL 508A Type 3R, 4, 4X, and 12
    • CSA Type 3R, 4, 4X, and 12
    • NEMA Type 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
  • Specifications

    Please click a part number below to view the product specifications.

    Product Dimensions

    Part Number

    16x12x6 in. 1418N4SSB6
    16x16x6 in. 1418N4SSG6
    16x20x6 in. 1418N4SSCR6
    20x16x6 in. 1418N4SSC6
    20x20x6 in. 1418N4SSD6
    24x20x6 in. 1418N4SSE6
    24x24x6 in. 1418N4SSJ6
    16x12x8 in. 1418N4SSB8
    20x16x8 in. 1418N4SSC8
    20x20x8 in. 1418N4SSD8
    20x24x8 in. 1418N4SSER8
    24x16x8 in. 1418N4SSH8
    24x20x8 in. 1418N4SSE8
    24x24x8 in. 1418N4SSJ8
    24x30x8 in. 1418N4SSKR8
    30x20x8 in. 1418N4SSF8
    30x24x8 in. 1418N4SSK8
    30x30x8 in. 1418N4SSKK8
    36x24x8 in. 1418N4SSL8
    36x30x8 in. 1418N4SSM8
    42x36x8 in. 1418N4SSP8
    48x36x8 in. 1418N4SSS8
    20x16x10 in. 1418N4SSC10
    24x20x10 in. 1418N4SSE10
    30x24x10 in. 1418N4SSK10
    36x24x10 in. 1418N4SSL10
    36x30x10 in. 1418N4SSM10
    42x30x10 in. 1418N4SSO10
    48x36x10 in. 1418N4SSS10
    24x24x12 in. 1418N4SSJ12
    30x24x12 in. 1418N4SSK12
    36x30x12 in. 1418N4SSM12
    36x36x12 in. 1418N4SSLL12
    48x36x12 in. 1418N4SSS12
    60x36x12 in. 1418N4SST12
    30x24x16 in. 1418N4SSK16
    36x30x16 in. 1418N4SSM16
    48x36x16 in. 1418N4SSS16
    60x36x16 in. 1418N4SST16
  • Type 3R

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.

    Type 4X

    Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.

    Type 12

    Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).

    Type 13

    Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
