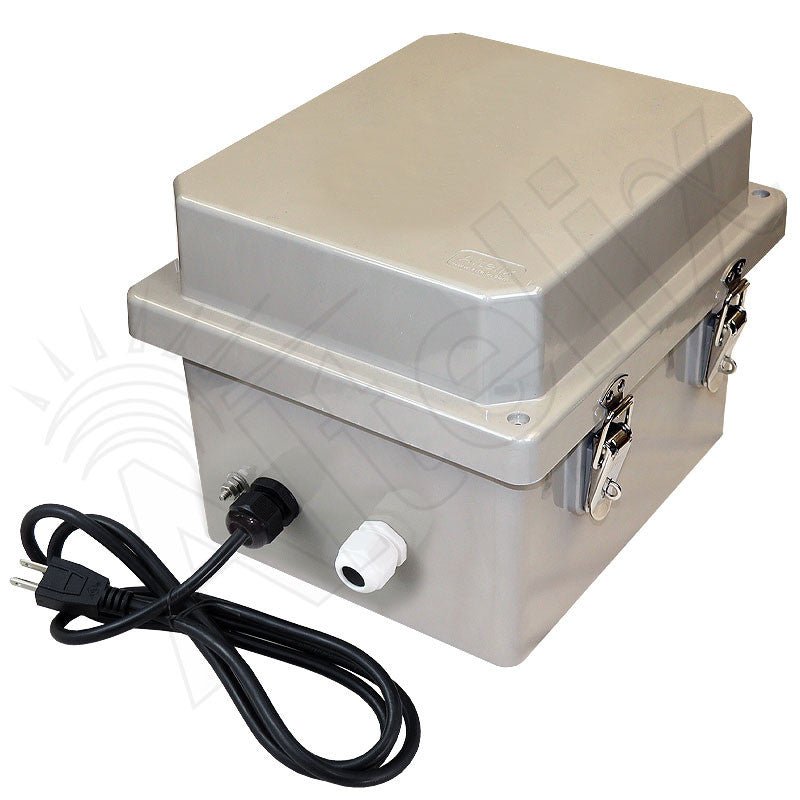

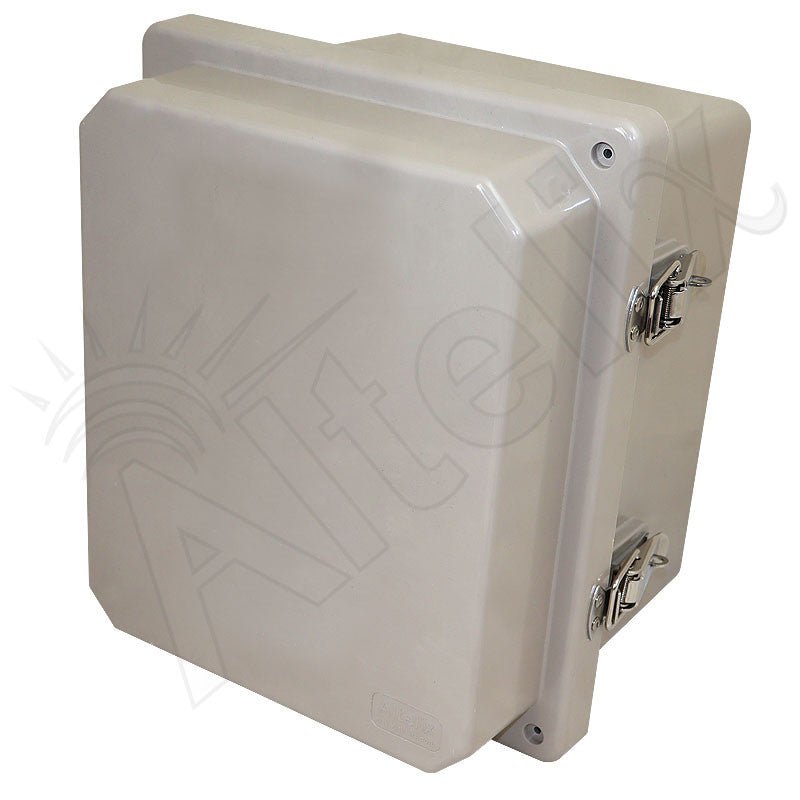

Altelix 10x8x8 Fiberglass Weatherproof NEMA 4X Enclosure with Aluminum Equipment Mounting Plate & 120 VAC Outlets & Power Cord

• Features No Electrical Wiring Required Pre-wired 5 foot 3-Prong Power Cord (2) Pre-Wired 120VAC Outlets Aluminum Equipment Mounting Plate Stainless Steel Hinge and Quick Release Latches with Padlock Hasps Extra Deep Extended Lid for Increased Equipment Clearance Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Includes Cable Glands and Stainless Steel Mounting Feet RF Transparent Enclosure Pole Mounting Kit Available

  Applications Rapid Deployment Harsh Environments Outdoor WiFi Enclosure RFID Reader Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Industrial Controls Enclosure Building Automation Controls Outdoor Use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment



  Plug and Play Power for Rapid Deployment

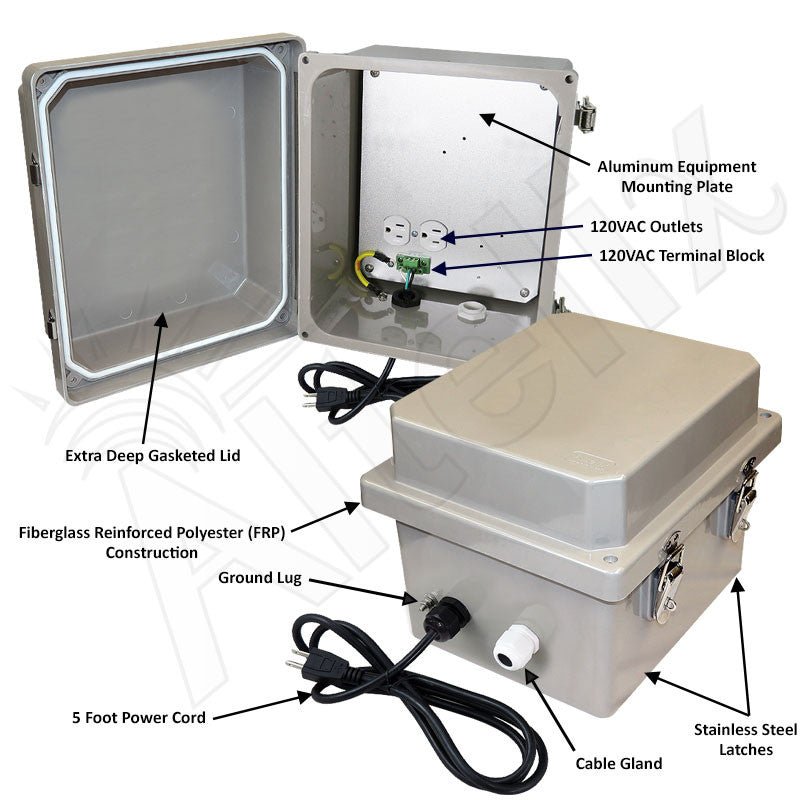

  The Altelix NF100808A1C NEMA enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.

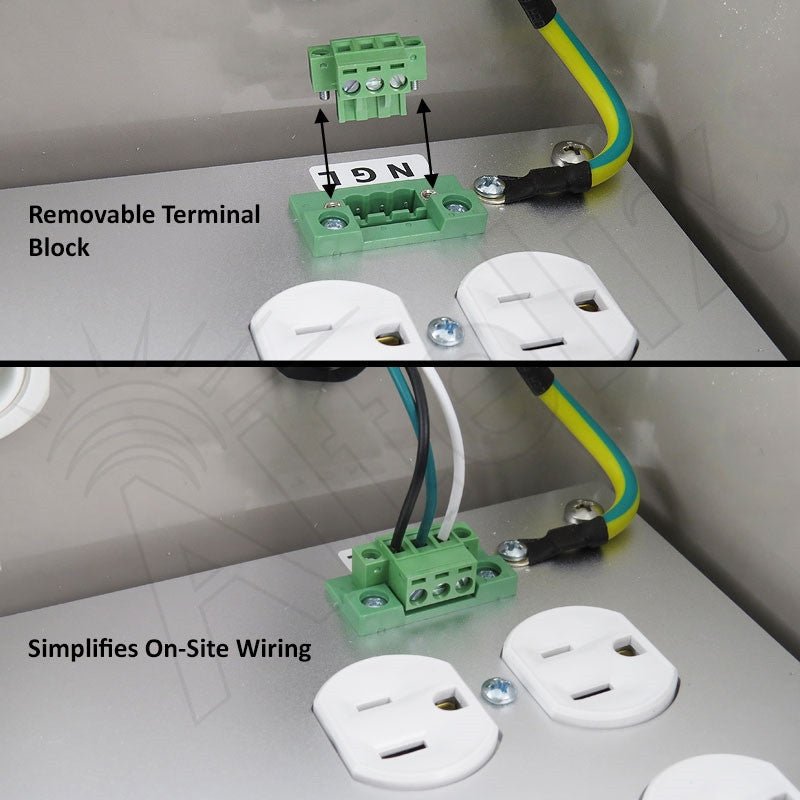

  Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

  Extreme Protection Built to Last
  This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

  Increased Interior Space

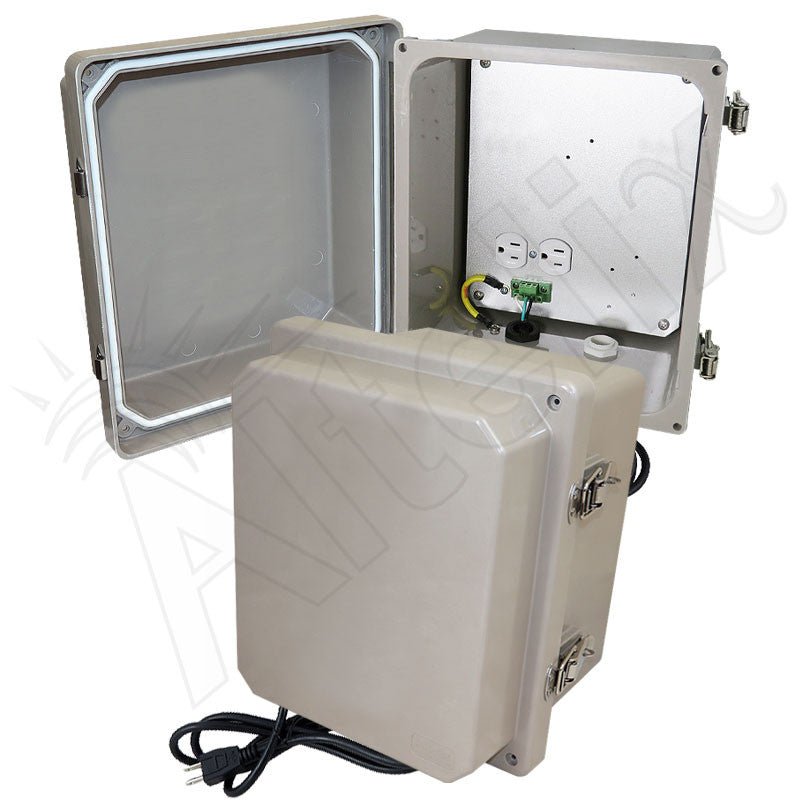

  The NF100808 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF100806 series enclosures. With the generous size of this enclosure and extended lid the NF100808 can accommodate a wide range of equipment.

  Cable Glands
  The enclosure features a unique PG-16 cable gland with a closed inner seal. It is installed in the open port to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Stainless steel brackets are included for secure wall mounting.






• 1
• 2
• 4
• 4X
• 12
• 13

No downloads available for this variant.
