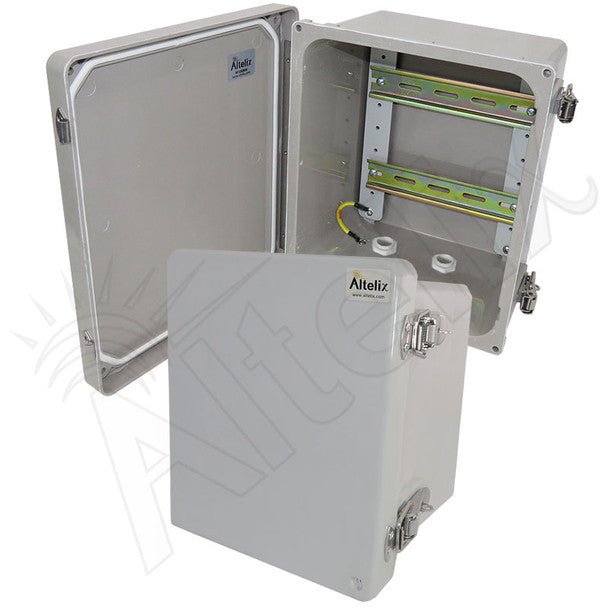

Altelix 10x8x6 Industrial DIN Rail Enclosure Fiberglass NEMA 4X IP66

• Features Steel Din Rail Mounting Brackets with 7 Rail Mounting Positions Includes (2) Steel 35mm Top Hat DIN Rails and Screws Water Resistant JIC Enclosure Design with Gasketed Lid Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 Stainless Steel Hinge and Quick Release Latches with Padlock Hasps Fiberglass Reinforced Polyester, FRP Weatherproof, UV Stable and Highly Corrosion Resistant Includes Cable Glands and Stainless Steel Mounting Feet RF Transparent and Non-Conductive Pole Mounting Kit Available

  Applications Rapid Deployment Communications DIN Rail Mounted Equipment Harsh Environments Building Automation Controls Industrial Controls Enclosure IoT Sensors SCADA Remote Terminal Unit Security and Surveillance Systems Solar Equipment Enclosure Outdoor Use of Indoor Equipment Protection from Vandalism Concealment of Electronic Equipment



  NEMA 4X Weatherproof Protection for DIN Rail Mounted Equipment

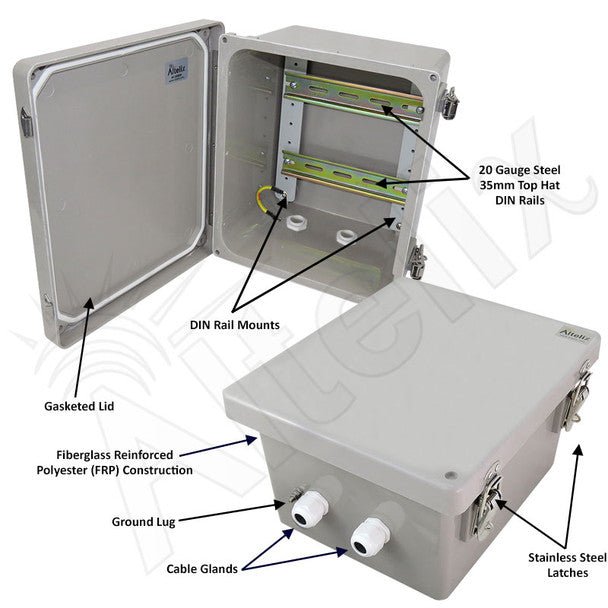

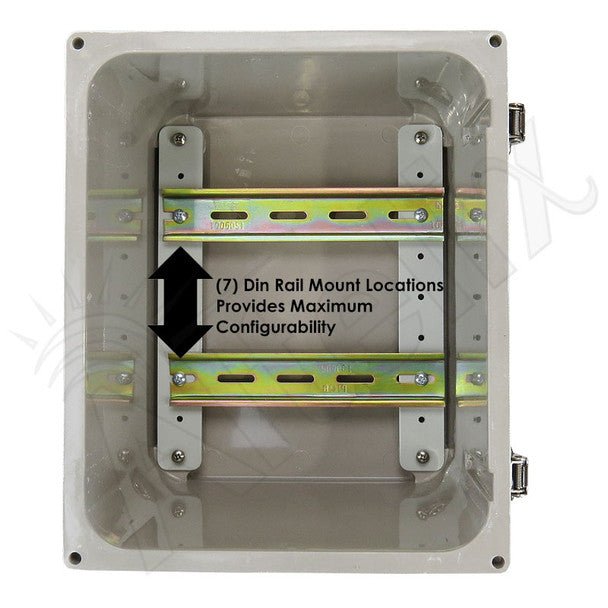

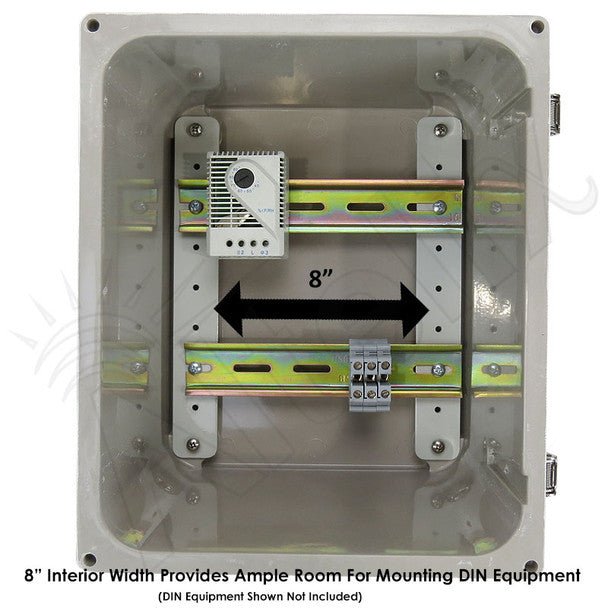

  The Altelix NF100806-DIN NEMA 4X Weatherproof DIN Rail Enclosure features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 7 adjustable DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

  Extreme Protection Built to Last
  The NF100806-DIN is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

  This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

  Cable Glands
  The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

  Mounting
  Stainless steel brackets are included for secure wall mounting.




• 1
• 2
• 4
• 4X
• 12
• 13

No downloads available for this variant.
