Altelix 10x8x8 Fiberglass Weatherproof NEMA 4X Enclosure with Blank Aluminum Equipment Mounting Plate
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP65, IP66 |
| Height | 10 |
| Width | 8 |
| Depth | 8 |
| Inner Dimensions | 9.0 x 7.0 x 7.4 In. |
| Cover Type | Hinged Cover, Gasketed Cover, Opaque |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Mounting Plate Dimensions | 9.1 x 7.4 in. |
-
Features - Includes Easy to Drill Blank Aluminum Equipment Mounting Plate
- Water Resistant JIC Enclosure Design with Gasketed Lid
- Extra Deep Extended Lid for Increased Equipment Clearance
- Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
- Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
- Fiberglass Reinforced Polyester, FRP
- Weatherproof, UV Stable and Highly Corrosion Resistant
- Includes Stainless Steel Mounting Feet
- RF Transparent and Non-Conductive
- Pole Mounting Kit Available
Applications
- Harsh Environments
- WiFi Enclosure
- RFID Reader Enclosure
- IoT Sensors
- SCADA Remote Terminal Unit
- Security and Surveillance Systems
- Telephone Equipment Enclosure
- Solar Equipment Enclosure
- Outdoor Use of Indoor Equipment
- Protection from Vandalism
- Concealment of Electronic Equipment
- Building Automation Controls
- Industrial Controls Enclosure
Extreme Protection Built to Last

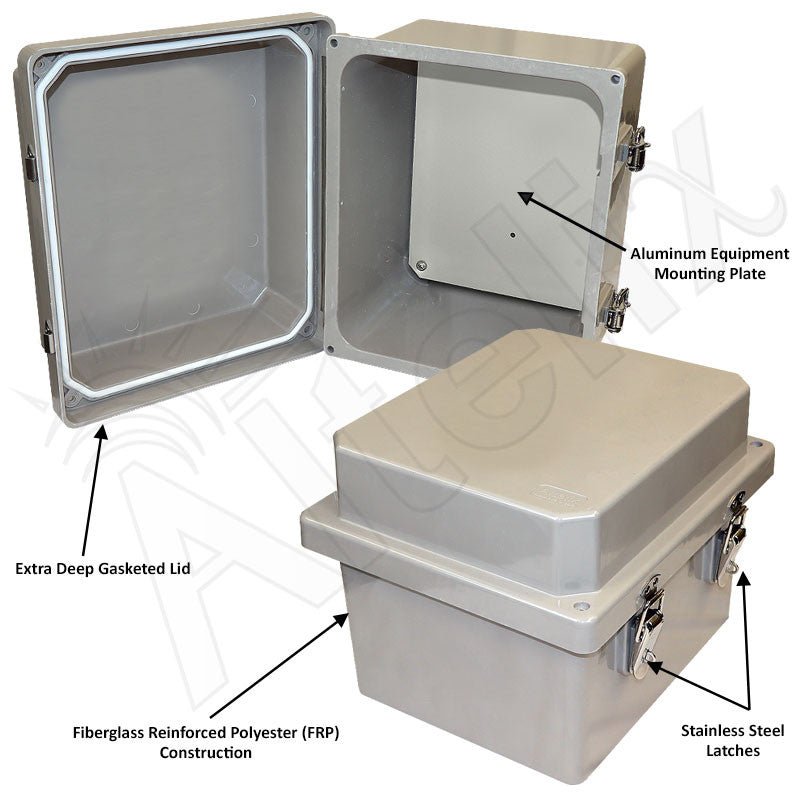

The Altelix NF100808P NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.
Increased Interior Space
The NF100808 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF100806 series enclosures. With the generous size of this enclosure and extended lid the NF100808 can accommodate a wide range of equipment.
Aluminum Equipment Plate
This model features an easy to drill, aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Mounting
Stainless steel brackets are included for secure wall mounting.
