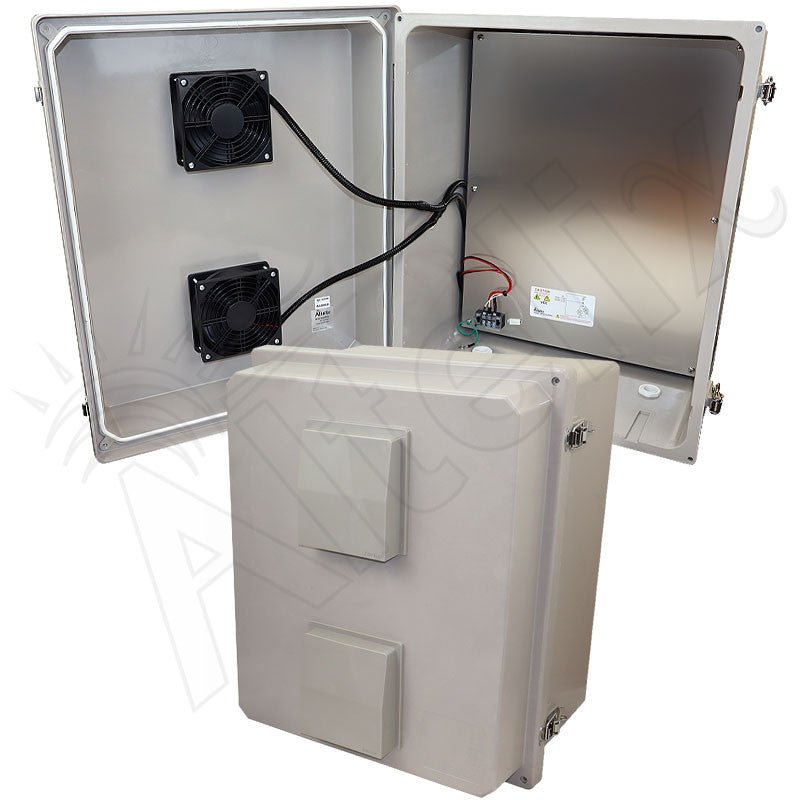

Altelix 20x16x12 Fiberglass Weatherproof Vented NEMA Enclosure with Dual 12 VDC Cooling Fans
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Fiberglass |
| Application | Indoor, Outdoor |
| IP Equivalent | IP24 |
| Height | 20 |
| Width | 16 |
| Depth | 12 |
| Inner Dimensions | 18.7 x 14.7 x 9.5 Inches |
| Cover Type | Hinged Cover, Gasketed Cover, Opaque |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
| Mounting Plate Material | Aluminum |
| Mounting Plate Dimensions | 18.7 x 14.8 in. |
| Cooling & Heating | Vents with Cooling Fan |
Features
|
Applications
|

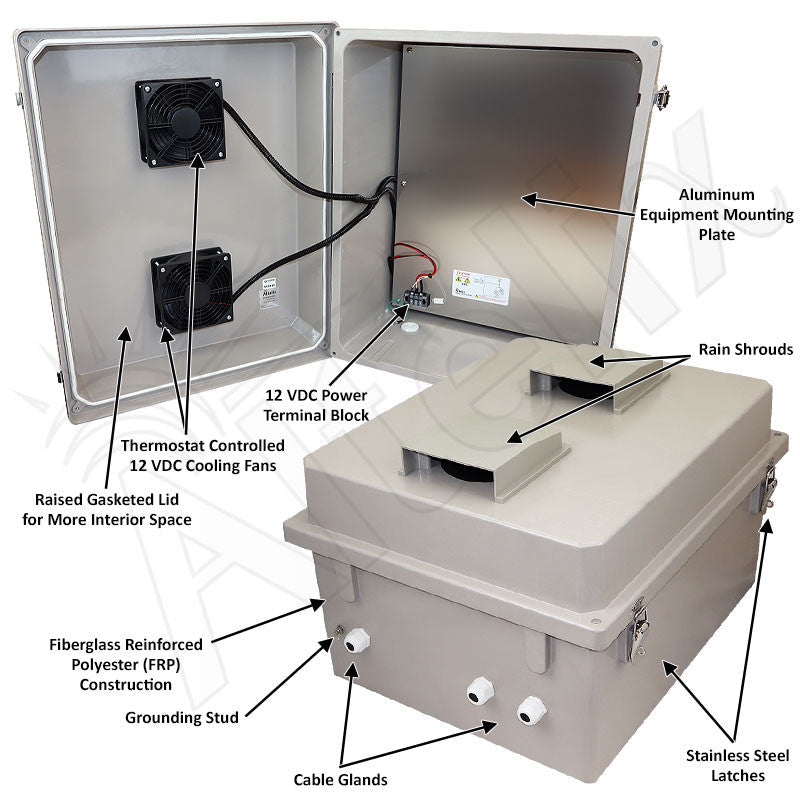

12 VDC Powered Fan Cooled NEMA Enclosure
The Altelix NF201612V Series Enclosures are designed with all the same rugged components as our NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This enclosure features dual 12VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

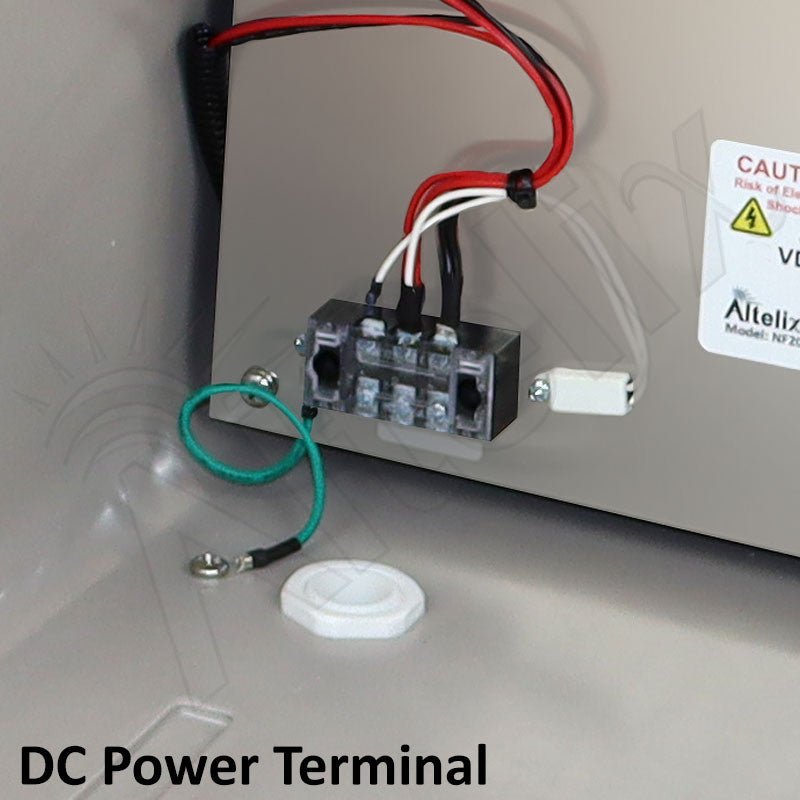

This enclosure can be powered from 12VDC solar and battery power sources, and features a terminal block for easy wiring.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.
Increased Interior Space
The NF201612V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF201612V can accommodate a wide range of equipment.

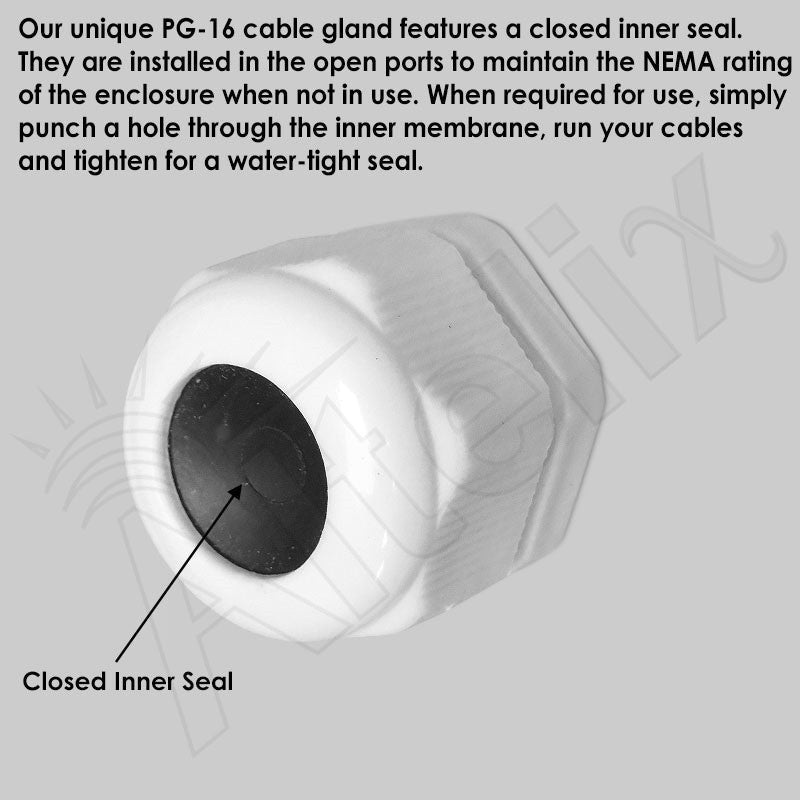

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

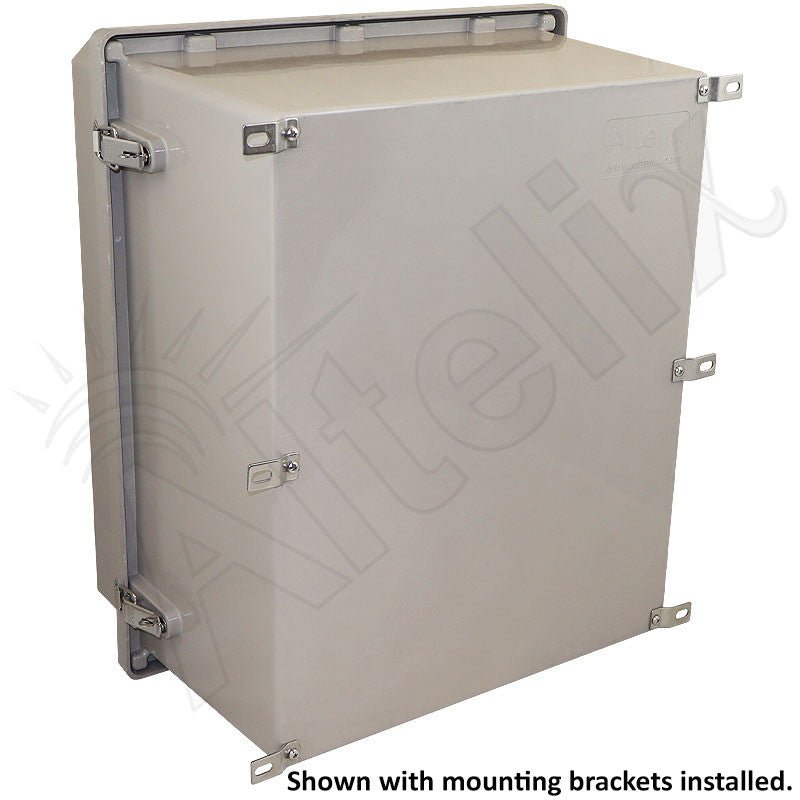

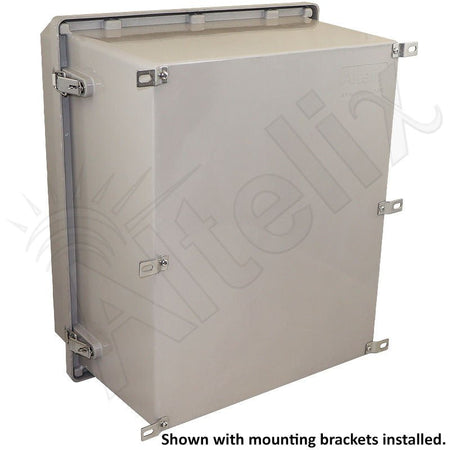

Mounting
Stainless steel brackets are included for secure wall mounting.
Additional Accessories
- Altelix Heavy Duty Galvanized Steel Pole Mount Kit for Altelix NF201612, NFC161608, NFC201608, NFC241609, NS/NX161608, NS201608, NS/NX201612, NS241610 & NS241612 Series NEMA Enclosures — $86.99
- Altelix Stainless Steel Pole Mount / Flange Mount Kit for NFC161608 NFC201608 NFC241609 NS161608 NS201608 and NS241610 Series NEMA Enclosures — $149.99
- Altelix Aluminum SLA Battery Shelf with Battery Strap — $24.99
